CV Axle Set for Yamaha Grizzly 660 4x4 2002

Location on vehicle: Front,Rear,Left,Right

YA-213/YA-214/YA-217/YA-218

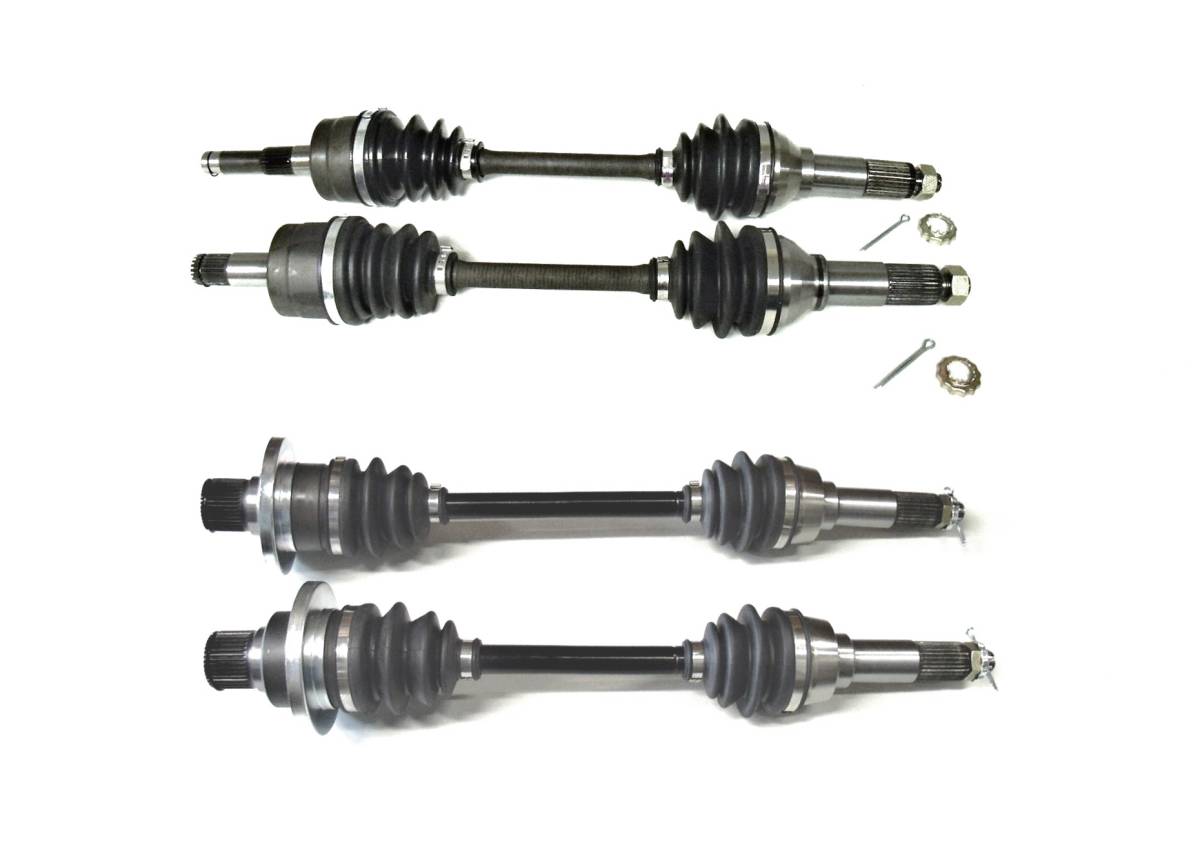

This is a set of new CV axles for a Yamaha ATV.

They fit the following 4x4 applications:

2002 ... Grizzly 660

Front & Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear & puncture resistance

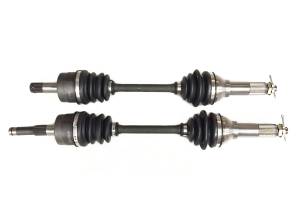

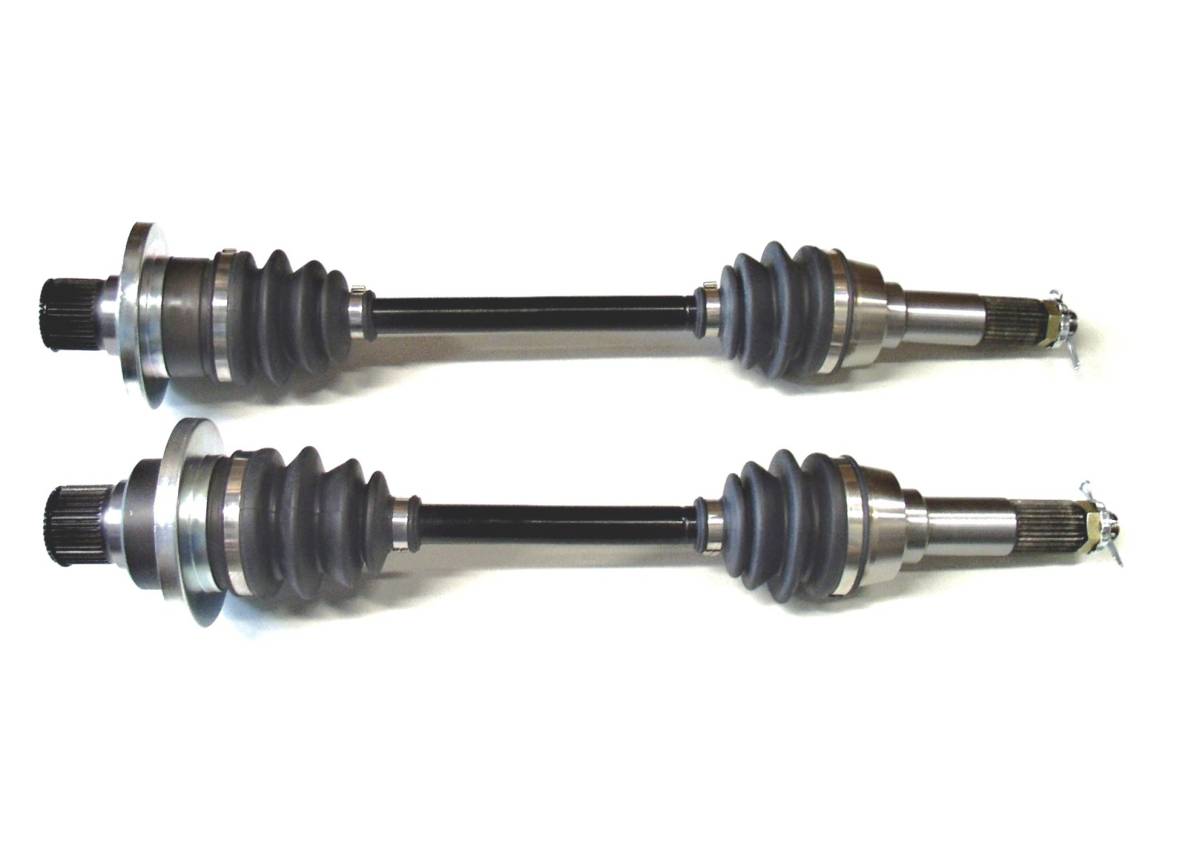

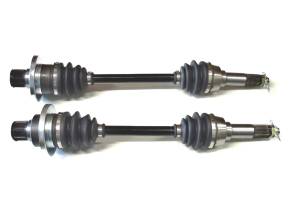

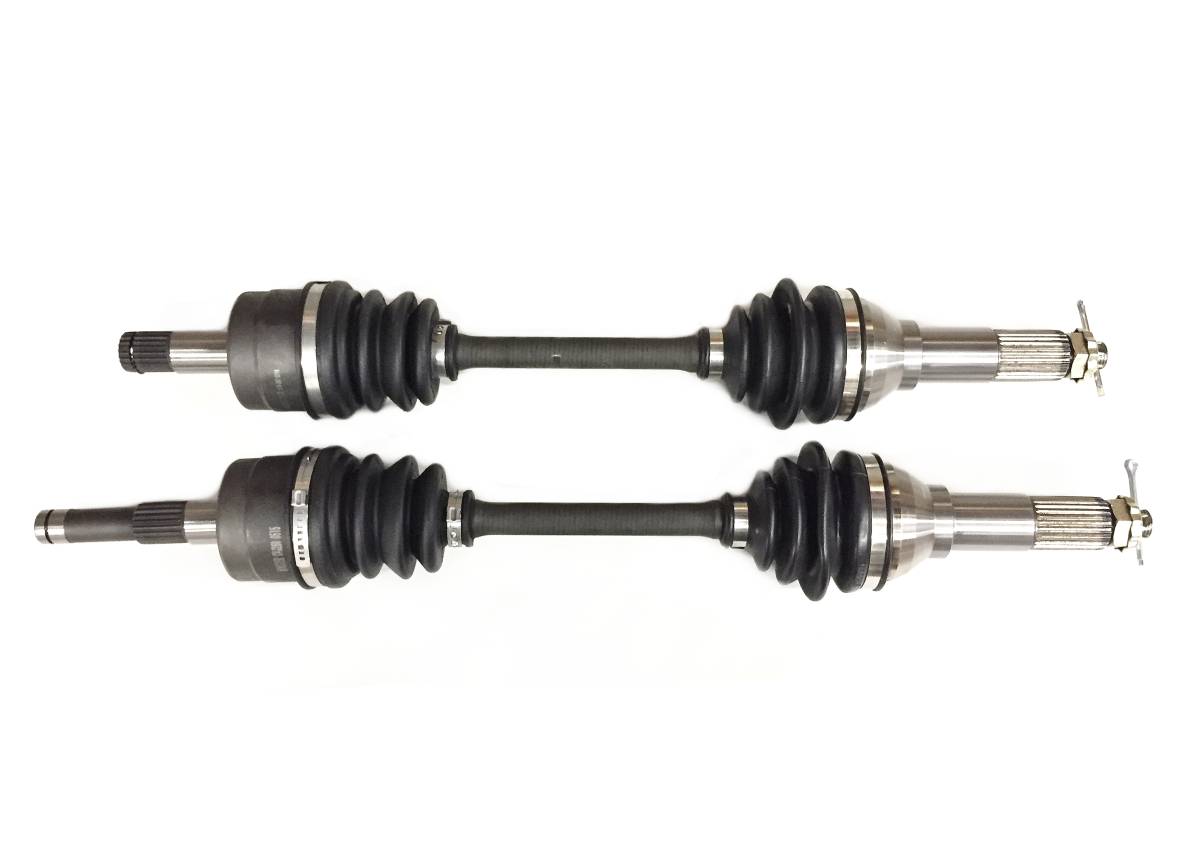

  • Inboard CV joint spline count: Fronts - 21, Rears - 39
  • Outboard CV joint spline count: Fronts - 27, Rears - 27
  • Compressed overall axle length: FL - 551 mm, FR - 509.5 mm, RL - 557 mm, RR - 511 mm
Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $254.99

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2002 Yamaha Grizzly 660 4x4 ATV. Models YFM660-FP/FPS/FHP.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: FL - 551 mm, FR - 509.5 mm, RL - 557 mm, RR - 511 mm, Inner Spline Count: Fronts - 21, Rears - 39, Outer Spline Count: Fronts - 27, Rears - 27.
  • Replaces Yamaha OEM # (fronts) 5KM-2510J-00-00, 5KM-2510F-00-00, 5KM-2510J-10-00, 5KM-2510F-00-00, (rears) 5KM-2530T-00-00, 5KM-2530V-00-00, 5KM-2530T-00-00, 5KM-2530V-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 4 axles
  • Application List

    YearMakeModelSubmodelNotes
    2002YamahaGrizzly 660YFM660F 4x4
    2002YamahaGrizzly 660YFM660FH 4x4 Hunter Edition

    Details

    • YA-213/YA-214/YA-217/YA-218
    • YA-213/YA-214/YA-217/YA-218
    • ATV Parts Connection
    • Temporarily Not Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 36.0 lbs.
    • W10.0000” x H10.0000” x L28.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
