Front Middle & Rear CV Axle Set for Polaris Ranger 800 6x6 2010-2017

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
PO-311/PO-311/PO-347/PO-348/PO-352/PO-352

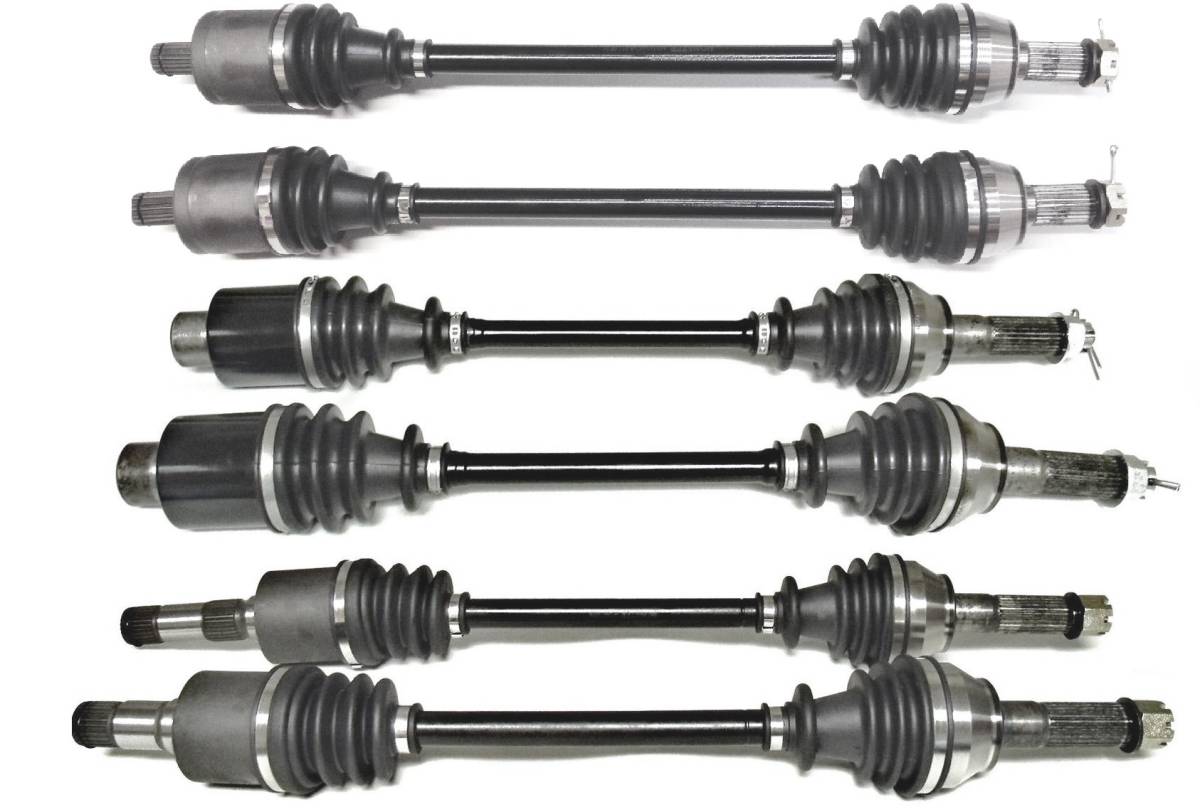

This is a set of 6 fully-assembled CV axles for a Polaris UTV.

They fit the following models:

2010-2017 Ranger 6x6 800

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts - 22, Mids - 26 (female type), Rears - 27
  • Outboard CV joint spline count: 26 (all)
  • Compressed overall axle length (mm): FL/FR: 664, ML/MR: 616, RL: 705, RR: 660
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $409.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect warranty

Product Notes

  • Fits the following Polaris models: 2010-2017 6x6 Ranger 800. Set includes Fronts (2), Middles (2), Rears (2).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces OEM (Front) 1332606 1332856, (Middle) 1332720, 1332952, 1332875, (Rear) 1332575, 1332576, 1332647, 1332648.
  • Compressed length (mm) - FL: 664, FR: 664, ML: 616, MR: 616, RL: 705, RR: 660 * Inner CV joint splines: Fronts: 22, Mids: 26 (female type), Rears: 27 (both) * Outer CV joint splines: 26 (all)
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 6 axles

    • Application List

    YearMakeModelSubmodelNotes
    2016PolarisRanger 8006x6
    2015PolarisRanger 8006x6
    2014PolarisRanger 8006x6 EFI
    2013PolarisRanger 8006x6
    2012PolarisRanger 8006x6
    2011PolarisRanger 8006x6 EFI
    2010PolarisRanger 8006x6 EFI

    Details

    • PO-311/PO-311/PO-347/PO-348/PO-352/PO-352
    • PO-311/PO-311/PO-347/PO-348/PO-352/PO-352
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 70.0 lbs.
    • W15.0000” x H10.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
