CV Axle Set for Can-Am Maverick 1000 STD & 1000 XRS 2013-2015

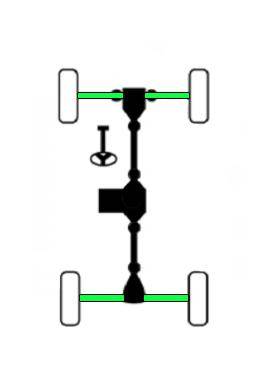

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
CA-117/CA-217/CA-307/CA-307

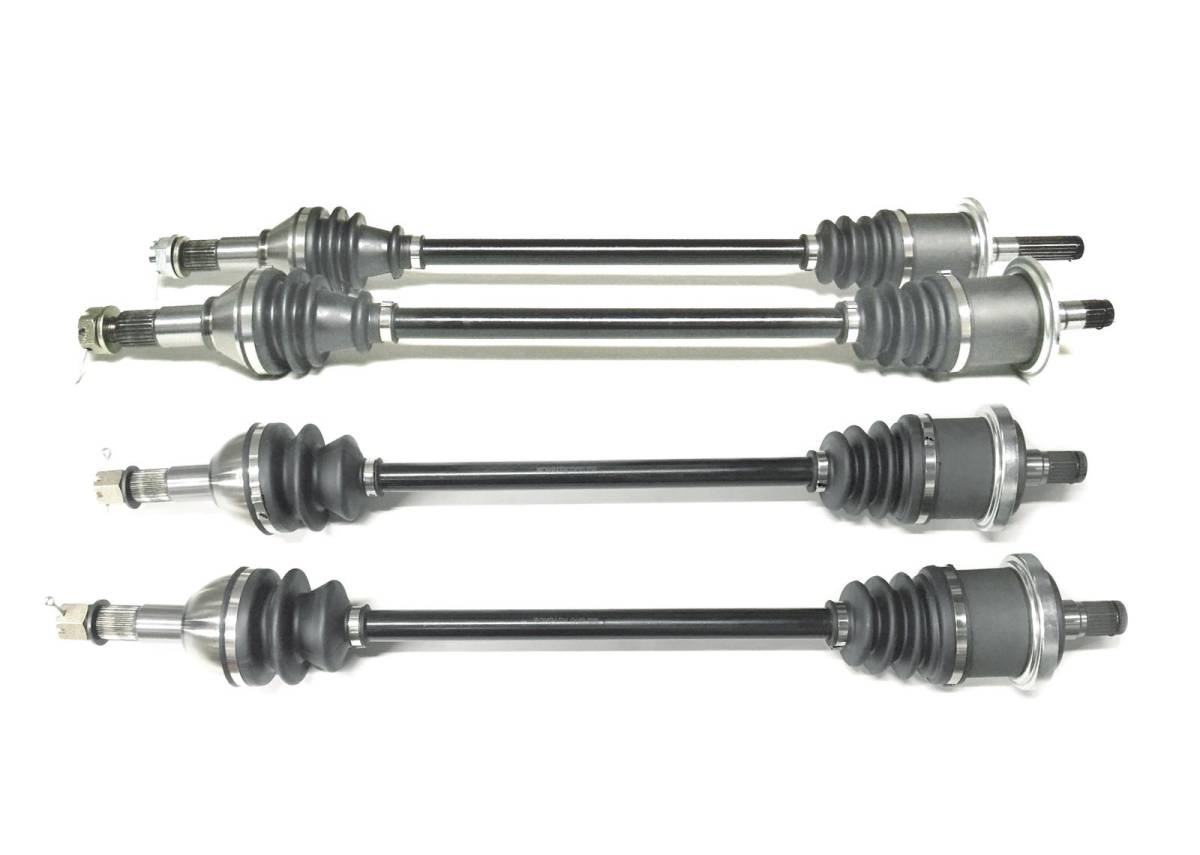

This is a set of new CV axles for a Can-Am SXS.

They fit the following Maverick models:

2013-2015 Maverick 1000 STD

2013-2015 Maverick 1000 XRS & XRS-DPS

2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS

*Please note these will not fit XMR, XXC, or Turbo models

*Axles made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bars
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inner CV joint spline count: Fronts - 21, Rears - 24
  • Outer CV joint spline count: Fronts - 26, Rears - 26
  • Compressed axle length (mm): FL - 725.5, FR - 768, RL - 758, RR - 758
  • Replaces OEM # (fronts) 705401235, 705401873, 705401236, 705401874, (rears) 705501948, 705502356
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $274.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the following Can-Am SXS models: 2013-2015 Maverick 1000 STD, 2013-2015 Maverick 1000 XRS & XRS-DPS, & 2014-2015 Maverick MAX 1000 STD, XRS, & XRS-DPS. Set includes 4 axles.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Replaces OEM # (fronts) 705401235, 705401873, 705401236, 705401874, (rears) 705501948, 705502356.
  • Compressed axle length (mm): FL - 725.5, FR - 768, RL - 758, RR - 758, Inner CV joint spline count: Fronts - 21, Rears - 24. Outer CV joint spline count: Fronts - 26, Rears - 26.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Application List

    YearMakeModelSubmodelNotes
    2015Can-AmMaverick 1000R4X4
    2015Can-AmMaverick 1000R4x4 XDS
    2015Can-AmMaverick 1000R4x4 XRS DPS
    2014Can-AmMaverick 1000R4X4
    2014Can-AmMaverick 1000R4x4 XRS
    2014Can-AmMaverick 1000R4x4 XRS DPS
    2013Can-AmMaverick 1000R4X4
    2015Can-AmMaverick Max 1000R4X4
    2015Can-AmMaverick Max 1000R4x4 XRS DPS
    2014Can-AmMaverick Max 1000R4X4
    2014Can-AmMaverick Max 1000R4x4 XRS DPS

    Details

    • CA-117/CA-217/CA-307/CA-307
    • CA-117/CA-217/CA-307/CA-307
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 53.0 lbs.
    • W10.0000” x H10.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
