Full CV Axle Set for Suzuki King Quad 450 500 700 750 ATV 2007-2018

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
SK-300/SK-300/SK-320/SK-320

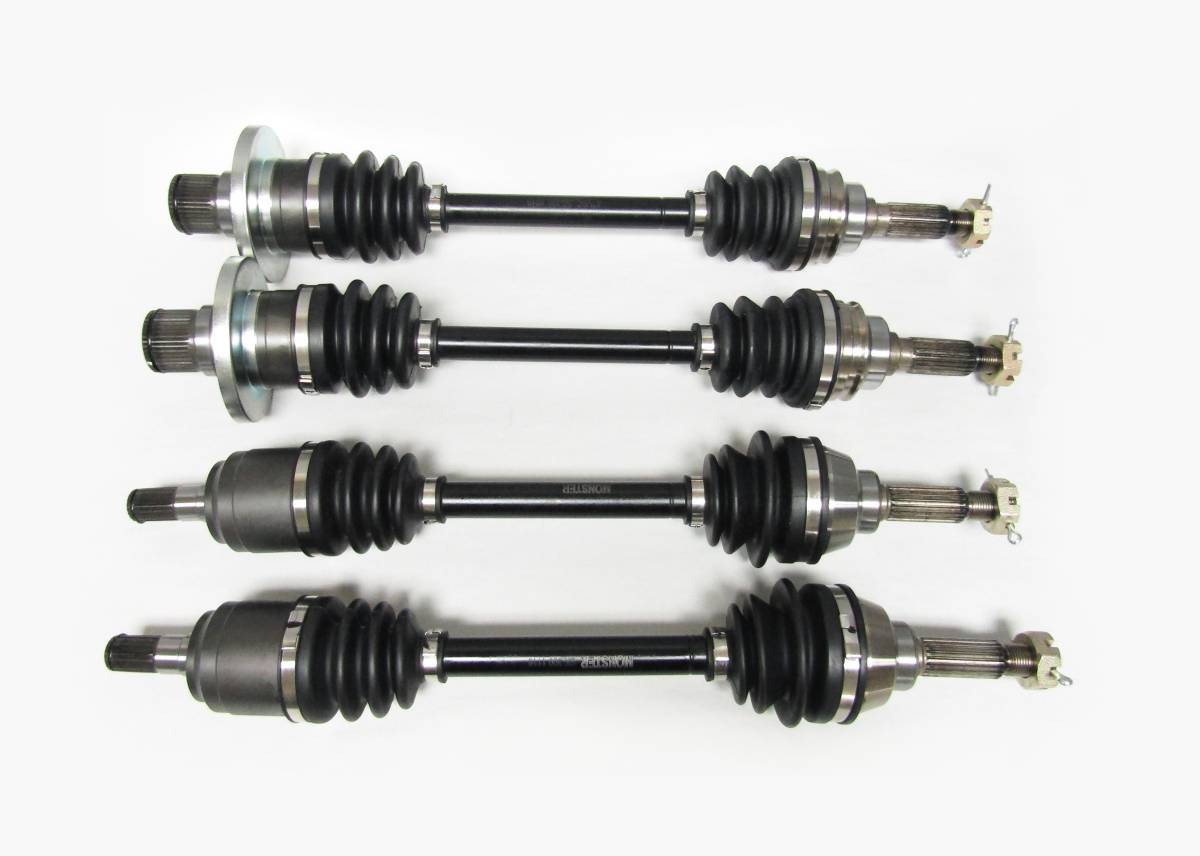

This is a full set of new CV axles for a Suzuki ATV.

They will fit the following models:

2007-2010 ... King Quad 450

2011-2018 ... King Quad 500 (without EPS)

2005-2007 ... King Quad 700

2008-2018 ... King Quad 750 (without EPS)

*made as an OE replacement, and not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bars
  • Uses high-performance moly grease to keep vital components lubricated
  • Fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures

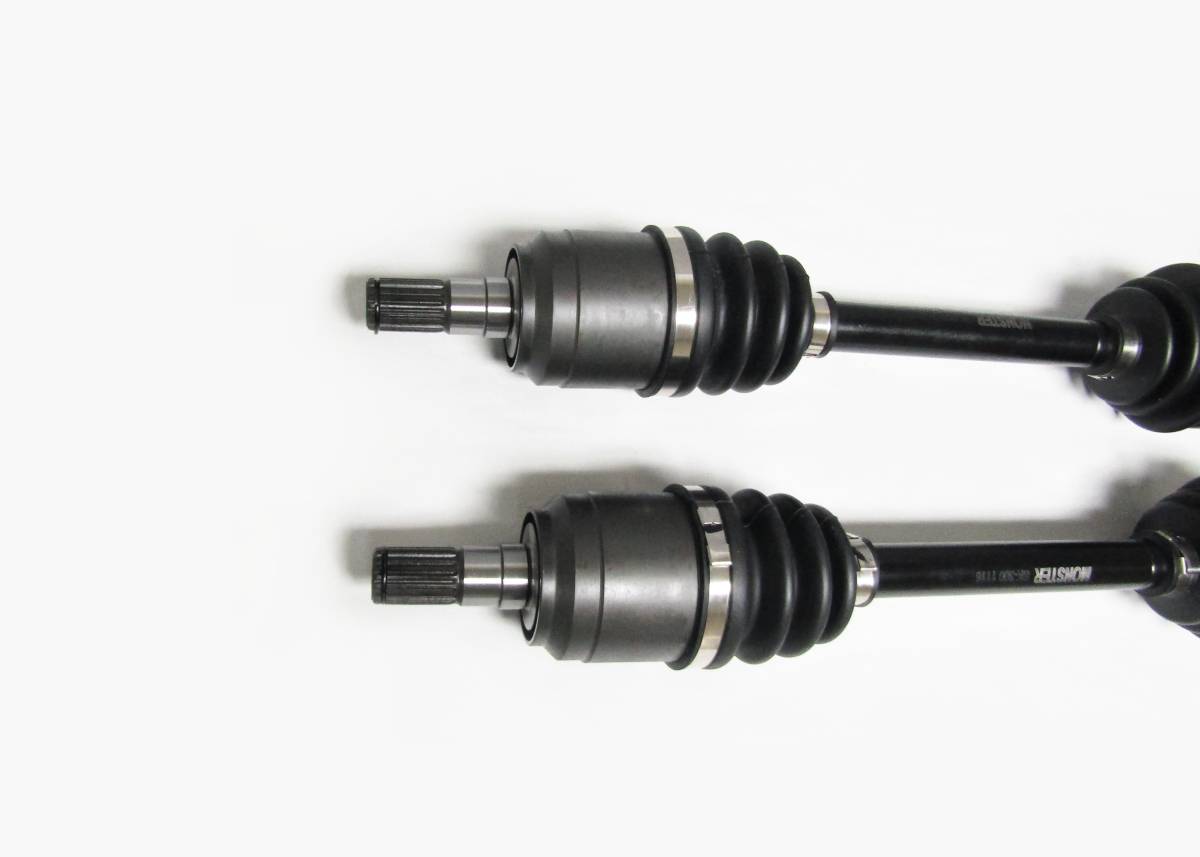

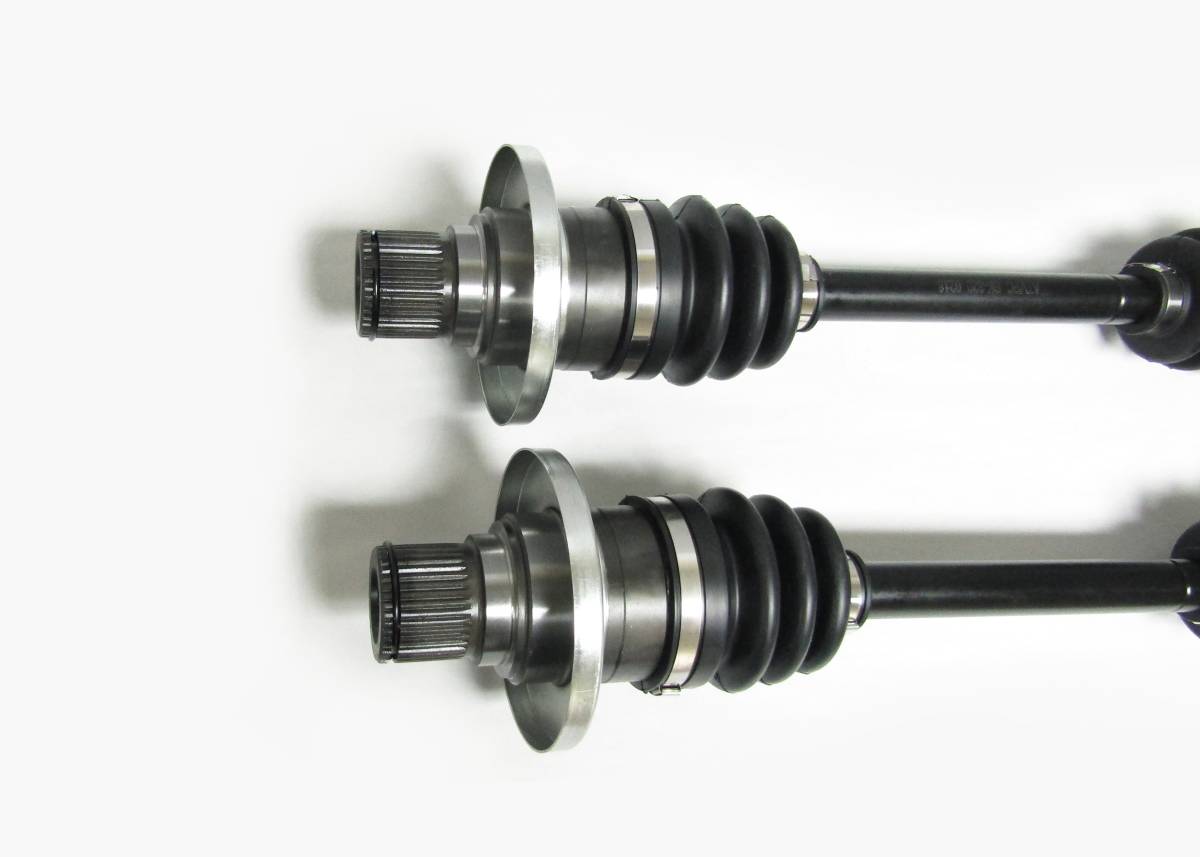

  • Inboard CV joint spline count: Fronts - 20, Rears - 39

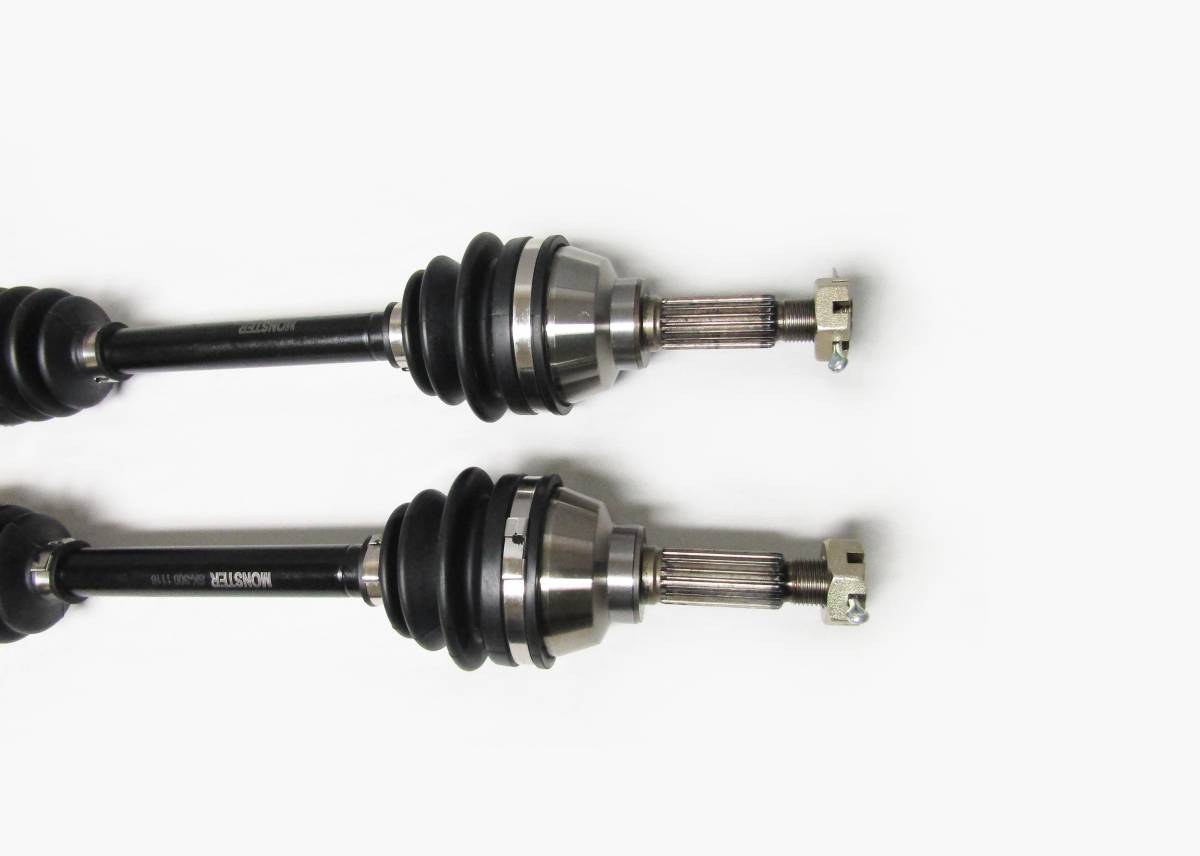

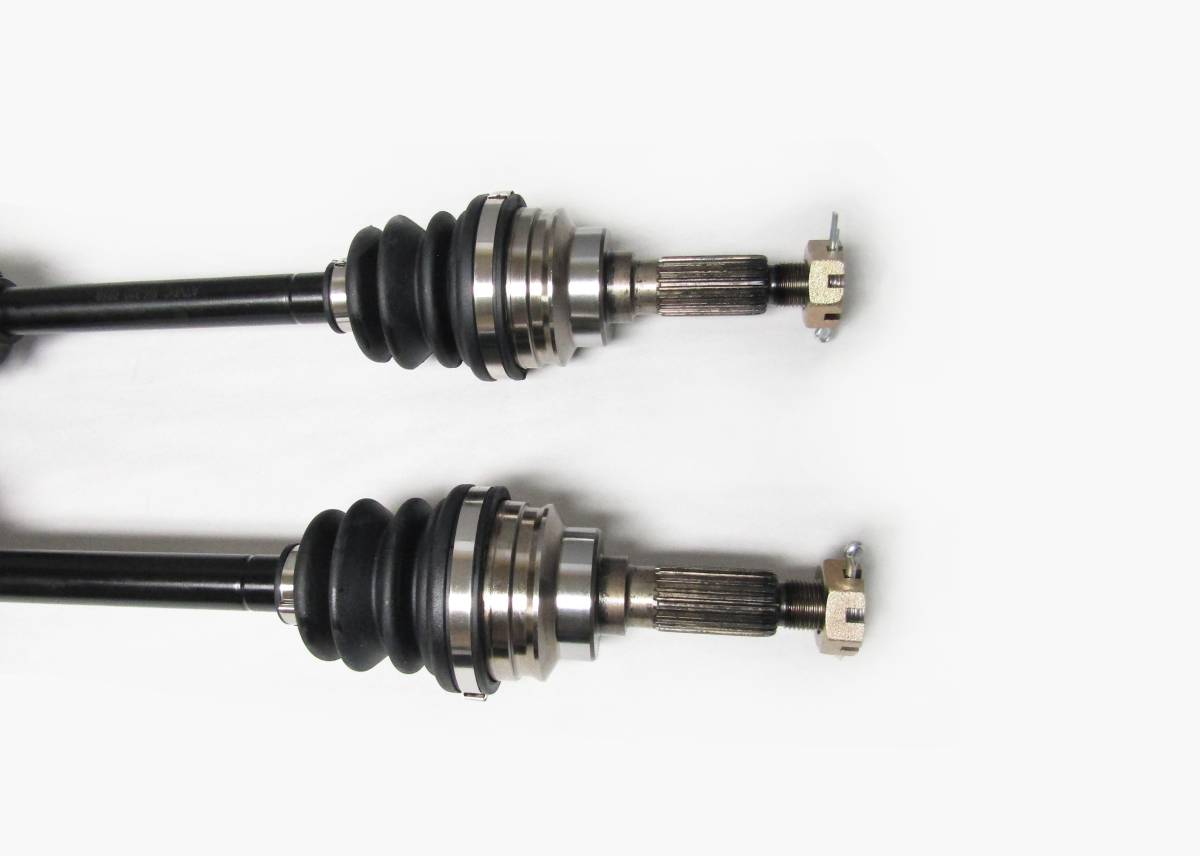

  • Outboard CV joint spline count: Fronts - 20, Rears - 22
  • Compressed overall axle length: Fronts - 505.5 mm, Rears - 524 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $234.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2010SuzukiKing Quad 450LTA450X 4x4 AXi
2009SuzukiKing Quad 450LTA450X 4x4 AXi
2009SuzukiKing Quad 450LTA450XZ 4x4 Limited AXi
2008SuzukiKing Quad 450LTA450X 4x4 AXi
2008SuzukiKing Quad 450LTA450XZ 4x4 Special Edition AXi
2007SuzukiKing Quad 450LTA450FC 4x4 Special Edition
2007SuzukiKing Quad 450LTA450X 4x4 AXi
2018SuzukiKing Quad 500LTA500 4x4 AXi
2017SuzukiKing Quad 500LTA500X 4x4 AXi
2017SuzukiKing Quad 500LTA500XC 4x4 Camo AXi
2016SuzukiKing Quad 500LTA500X 4x4 AXi
2015SuzukiKing Quad 500LTA500X 4x4 AXi
2014SuzukiKing Quad 500LTA500X 4x4 AXi
2013SuzukiKing Quad 500LTA500X 4x4 AXi
2012SuzukiKing Quad 500LTA500X 4x4 AXi
2011SuzukiKing Quad 500LTA500X 4x4 AXi
2007SuzukiKing Quad 700LTA700X 4x4
2006SuzukiKing Quad 700LTA700X 4x4
2005SuzukiKing Quad 700LTA700X 4x4
2018SuzukiKing Quad 750LTA750X 4x4 AXi
2018SuzukiKing Quad 750LTA750XC 4x4 Camo AXi
2017SuzukiKing Quad 750LTA750X 4x4 AXi
2017SuzukiKing Quad 750LTA750XC 4x4 Camo AXi
2016SuzukiKing Quad 750LTA750X 4x4 AXi
2015SuzukiKing Quad 750LTA750X 4x4 AXi
2014SuzukiKing Quad 750LTA750X 4x4 AXi
2014SuzukiKing Quad 750LTA750XZ 4x4 Limited AXi
2013SuzukiKing Quad 750LTA750X 4x4 AXi
2012SuzukiKing Quad 750LTA750X 4x4 AXi
2011SuzukiKing Quad 750LTA750X 4x4 AXi
2009SuzukiKing Quad 750LTA750X 4x4 AXi
2009SuzukiKing Quad 750LTA750XZ 4x4 Limited AXi
2008SuzukiKing Quad 750LTA750X 4x4 AXi
2008SuzukiKing Quad 750LTA750XZ 4x4 Special Edition AXi

Product Notes

  • Fits the following Suzuki ATV models: 2007-2010 King Quad 450, 2011-2018 King Quad 500 (without EPS), 2005-2007 King Quad 700, 2008-2018 King Quad 750 (without EPS). Set includes 4 axles.
  • Features stronger than OEM, 4340 chromoly steel bars. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # 54901-31G00, 54901-31G10, 54901-31G12, 54901-31G20, 54901-31G40, 54901-31G41, 64901-31G10, 64901-31G40. Compressed length: Fronts - 505.5 mm, Rears - 524 mm, Inboard spline count: Fronts - 20, Rears - 39, Outboard spline count: Fronts - 20, Rears - 22.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • SK-300/SK-300/SK-320/SK-320
    • SK-300/SK-300/SK-320/SK-320
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 35.0 lbs.
    • W10.0000” x H10.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
