Rear Axle Pair for Arctic Cat Prowler 550 650 700 & 1000 1436-411

Location on vehicle: Rear,Left,Right

AC-316/AC-316

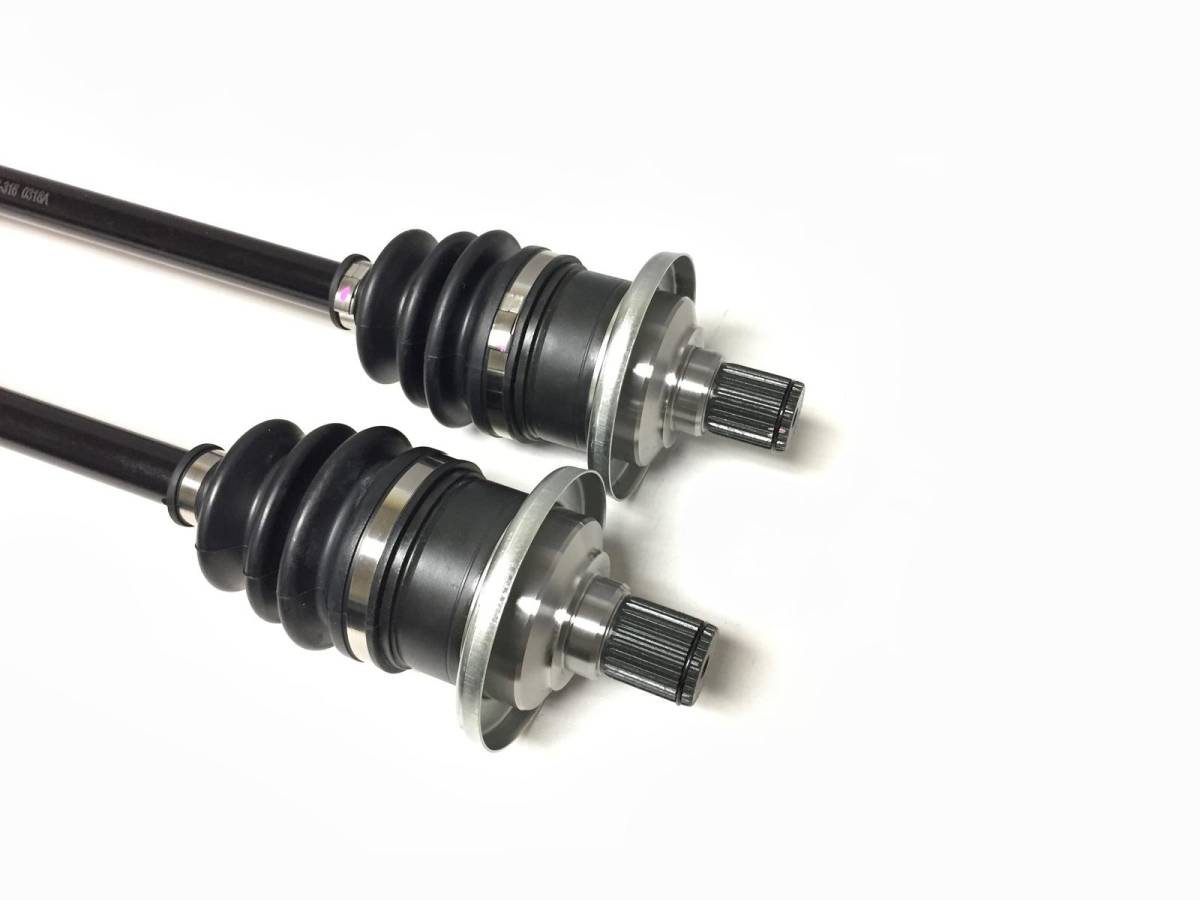

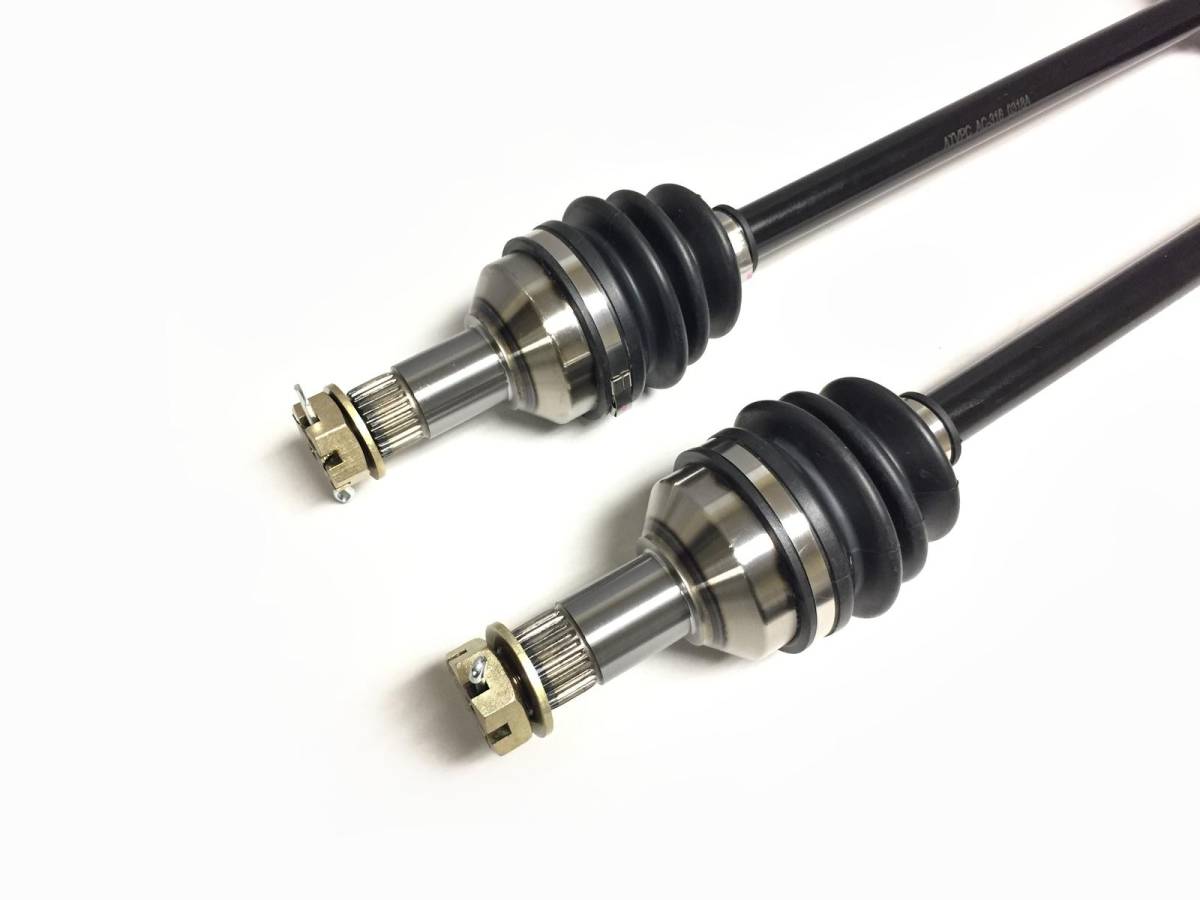

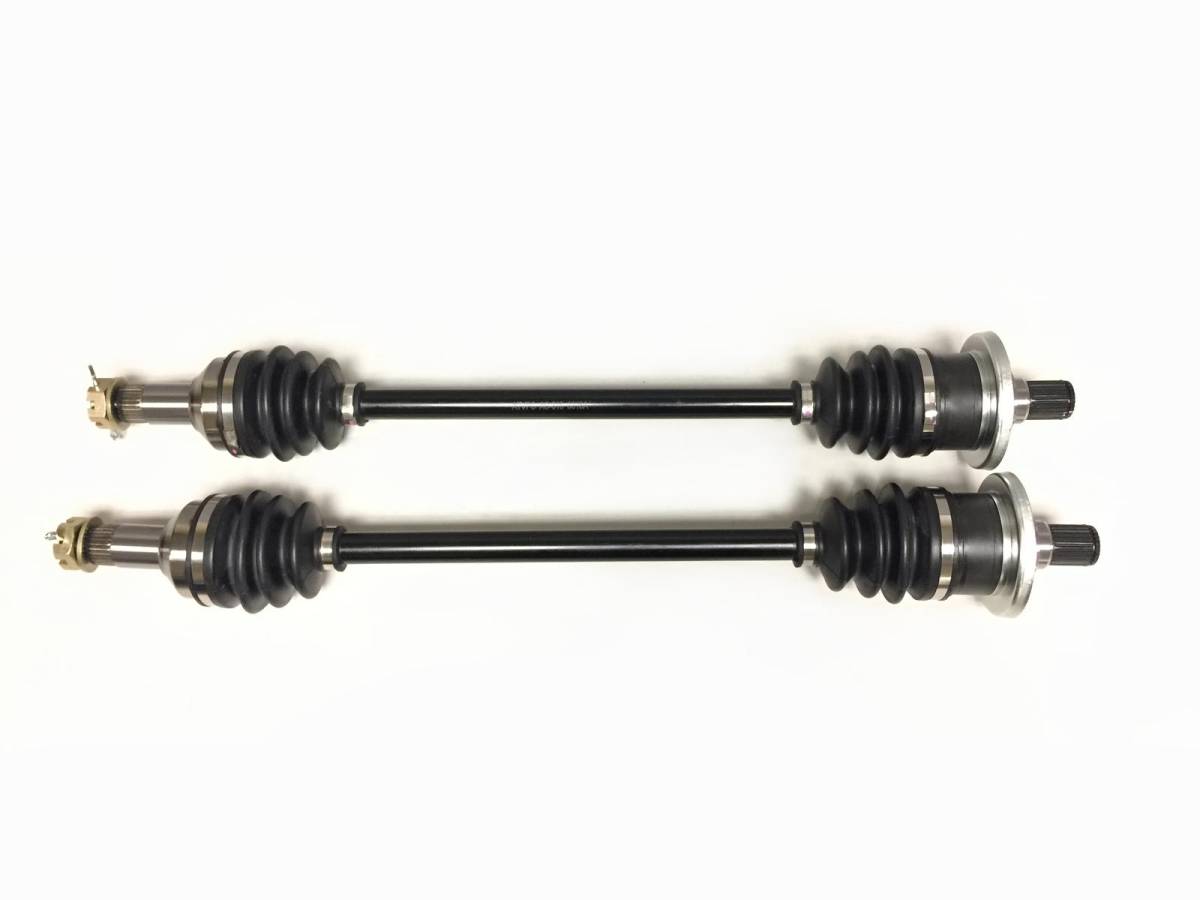

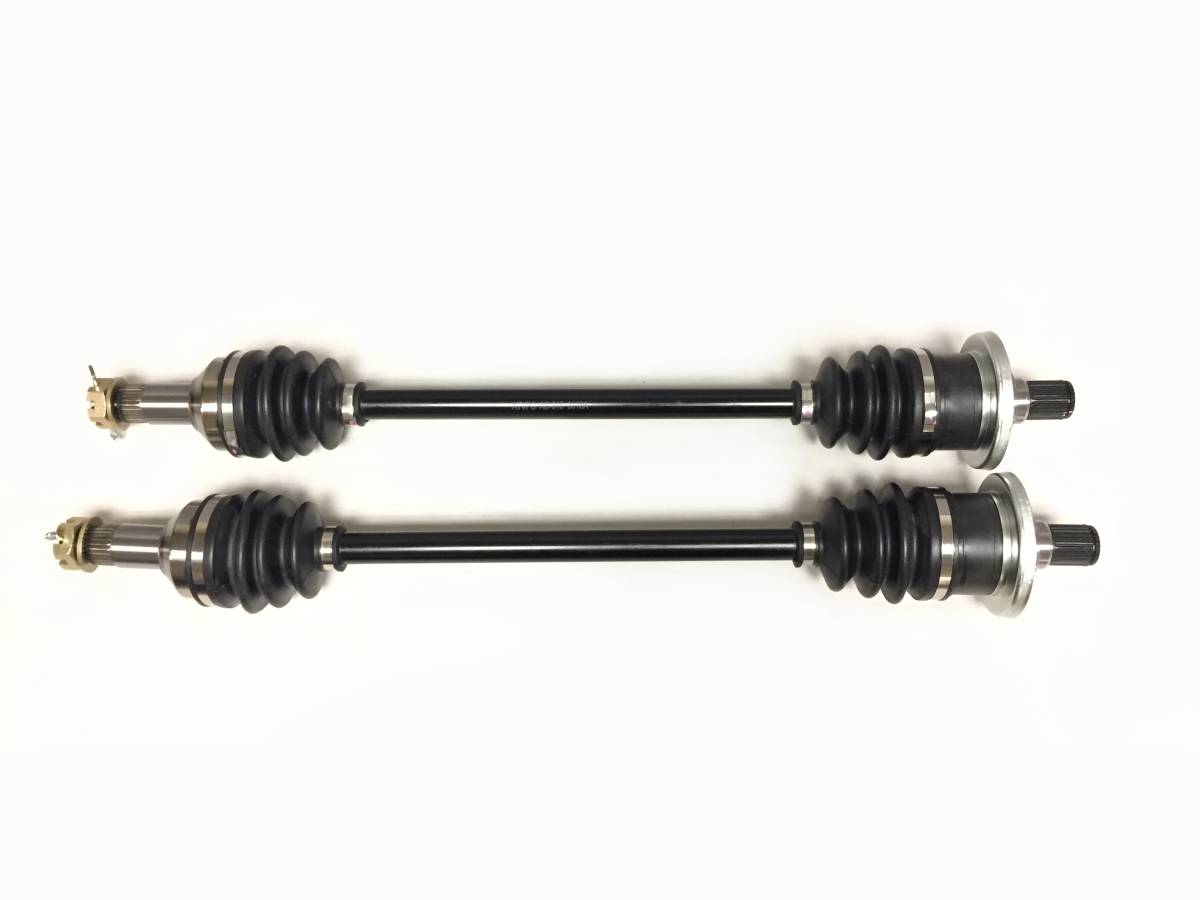

This is a pair of new Rear CV axles for an Arctic Cat UTV.

They fit the following 4x4 models:

2014-2015 ... Prowler HDX 500

2009-2014 ... Prowler 550/XT 550

2006-2009 ... Prowler 650/XT 650

2011-2015 ... Prowler XTX 700/HDX 700

2009-2014 ... Prowler XTZ 1000

Rear Left & Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, 4340 chromoly, forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • CV joints fitted with neoprene boots for added wear and puncture resistance
  • Inboard CV joint spline count: 27 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 662 mm (both)
  • Replaces Arctic Cat OEM # 1436-411, 0502-740, 1502-346, 1502-562, 1502-668, 1502-801
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits rear left & right: 2014-2015 Prowler HDX 500, 2009-2014 Prowler 550/XT 550, 2006-2009 Prowler 650/XT 650, 2011-2015 Prowler XTX 700 / HDX 700, 2009-2014 Prowler XTZ 1000.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 662 mm (both), Inboard Spline Count - 27 (both), Outboard Spline Count - 27 (both).
  • Replaces Arctic Cat OEM # 1436-411, 0502-740, 1502-346, 1502-562, 1502-668, 1502-801.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 2 axles
  • Application List

    YearMakeModelSubmodelNotes
    2009Arctic CatProwler 5504x4 Flatbed
    2008Arctic CatProwler 6504x4 H1 Automatic
    2007Arctic CatProwler 6504x4 H1 Automatic
    2006Arctic CatProwler 6504x4 H1 Automatic
    2015Arctic CatProwler HDX 5004X4
    2014Arctic CatProwler HDX 5004X4
    2014Arctic CatProwler HDX 5004x4 Limited
    2014Arctic CatProwler HDX 5004x4 XT
    2014Arctic CatProwler HDX 7004X4
    2014Arctic CatProwler HDX 7004x4 Limited
    2013Arctic CatProwler HDX 7004X4
    2012Arctic CatProwler HDX 7004x4 EFI
    2012Arctic CatProwler HDX 7004x4 EPS
    2011Arctic CatProwler HDX 7004x4 EPS
    2011Arctic CatProwler HDX 7004x4 H1 EFI
    2010Arctic CatProwler XT 5504X4
    2009Arctic CatProwler XT 6504x4 H1 Automatic
    2008Arctic CatProwler XT 6504x4 H1 Automatic
    2008Arctic CatProwler XT 6504x4 H1 M4 Automatic
    2007Arctic CatProwler XT 6504x4 H1 Automatic
    2006Arctic CatProwler XT 6504x4 H1 Automatic
    2009Arctic CatProwler XT 7004X4
    2014Arctic CatProwler XTX 7004X4
    2013Arctic CatProwler XTX 7004X4
    2012Arctic CatProwler XTX 7004x4 EFI
    2011Arctic CatProwler XTX 7004x4 EPS
    2011Arctic CatProwler XTX 7004x4 H1 EFI
    2014Arctic CatProwler XTZ 10004X4
    2013Arctic CatProwler XTZ 10004X4
    2012Arctic CatProwler XTZ 10004x4 EFI
    2011Arctic CatProwler XTZ 10004x4 H2 EFI
    2010Arctic CatProwler XTZ 10004X4
    2010Arctic CatProwler XTZ 10004x4 H2 EFI
    2009Arctic CatProwler XTZ 10004x4 Baja
    2009Arctic CatProwler XTZ 10004x4 H2 EFI

    Details

    • AC-316/AC-316
    • AC-316/AC-316
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W7.0000” x H28.0000” x L12.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
