Front Axle Pair with Bearings for Polaris Ranger 500 & Series 10/11 2002-2005

Location on vehicle: Front,Left,Right

PO-241/PO-241/WB-1424/WB-1424

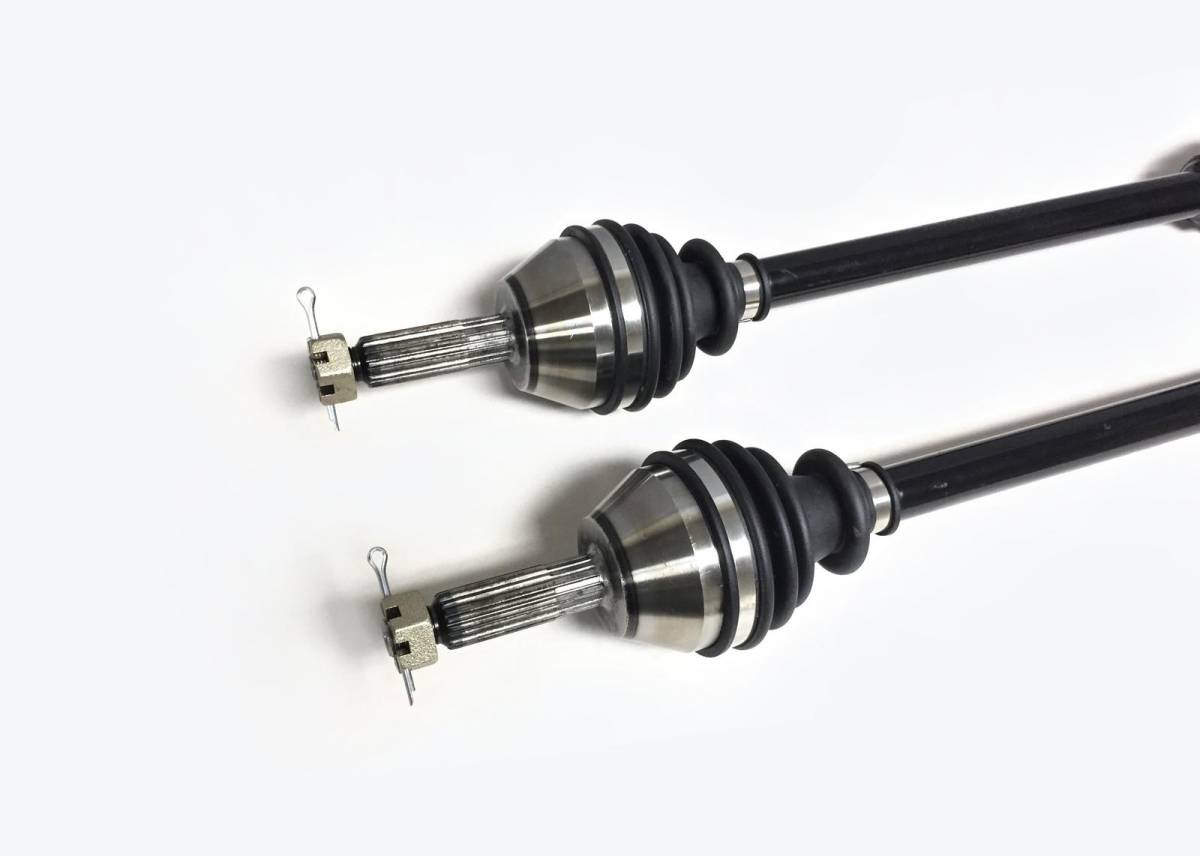

This is a set of new front U-joint / CV joint axles & wheel bearings for a Polaris UTV.

They fit the following models:

2002 ..... Ranger Series 10 4x4/6x6

2002 ... Series 10 PPS Utility Task Vehicle

2003-2004 ..... Ranger Series 11 4x4/6x6

2003-2004 ... Series 11 PPS Utility Task Vehicle

2004-2005 ... Ranger 500 4x4/6x6

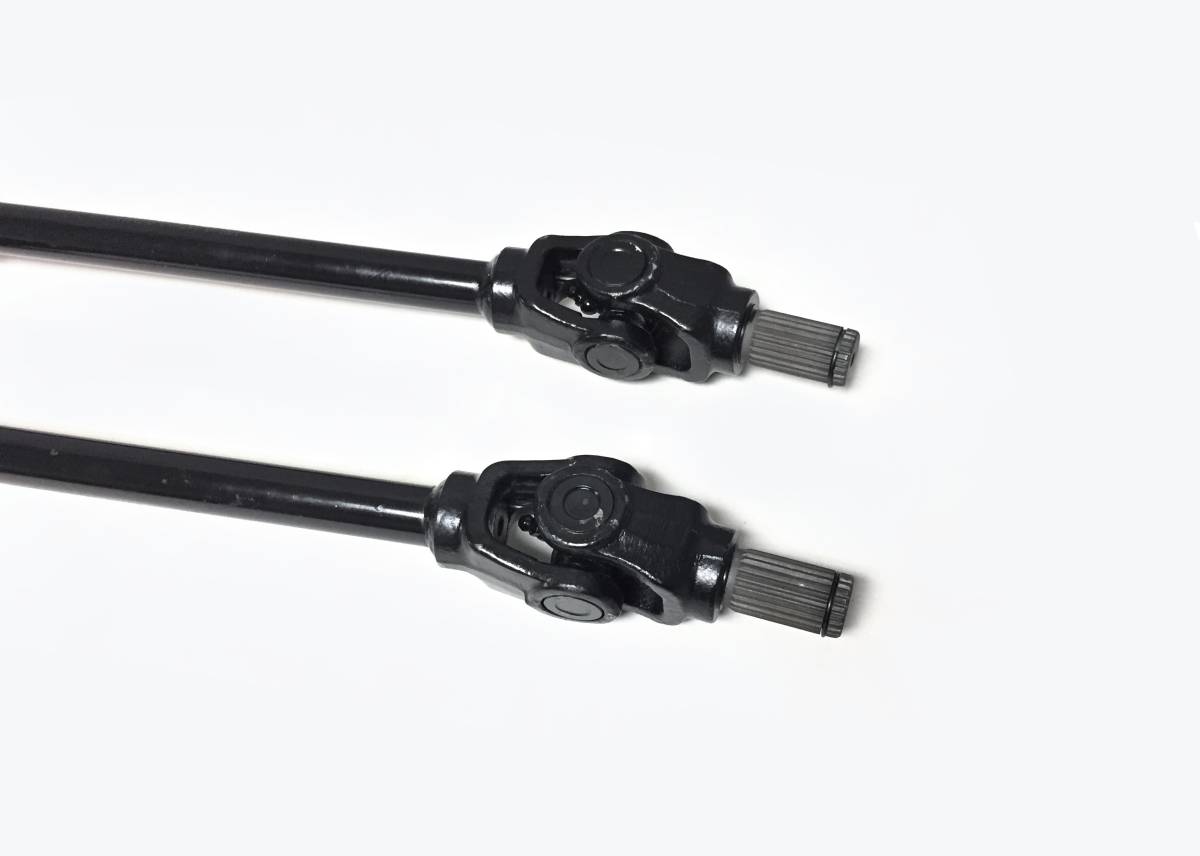

(this is for models with a U-joint on the inner side of the axle shaft)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 20 (both)
  • Compressed overall axle length: 620.5 mm (both)
  • Replaces Polaris OEM # (axles) 1380178, 1380230, (bearings) 3514342, 3514634
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2002 Ranger Series 10 4x4/6x6, 2002 Series 10 PPS UTV, 2003-2004 Ranger Series 11 4x4/6x6, 2003-2004 Series 11 PPS UTV, 2004-2005 Ranger 500 4x4/6x6 (with inner U-Joint shaft).
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Polaris OEM # (axles) 1380178, 1380230, (bearings) 3514342, 3514634. Compressed Length - 620.5 mm (both), Inboard Spline Count - 22 (both), Outboard Spline Count - 20 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

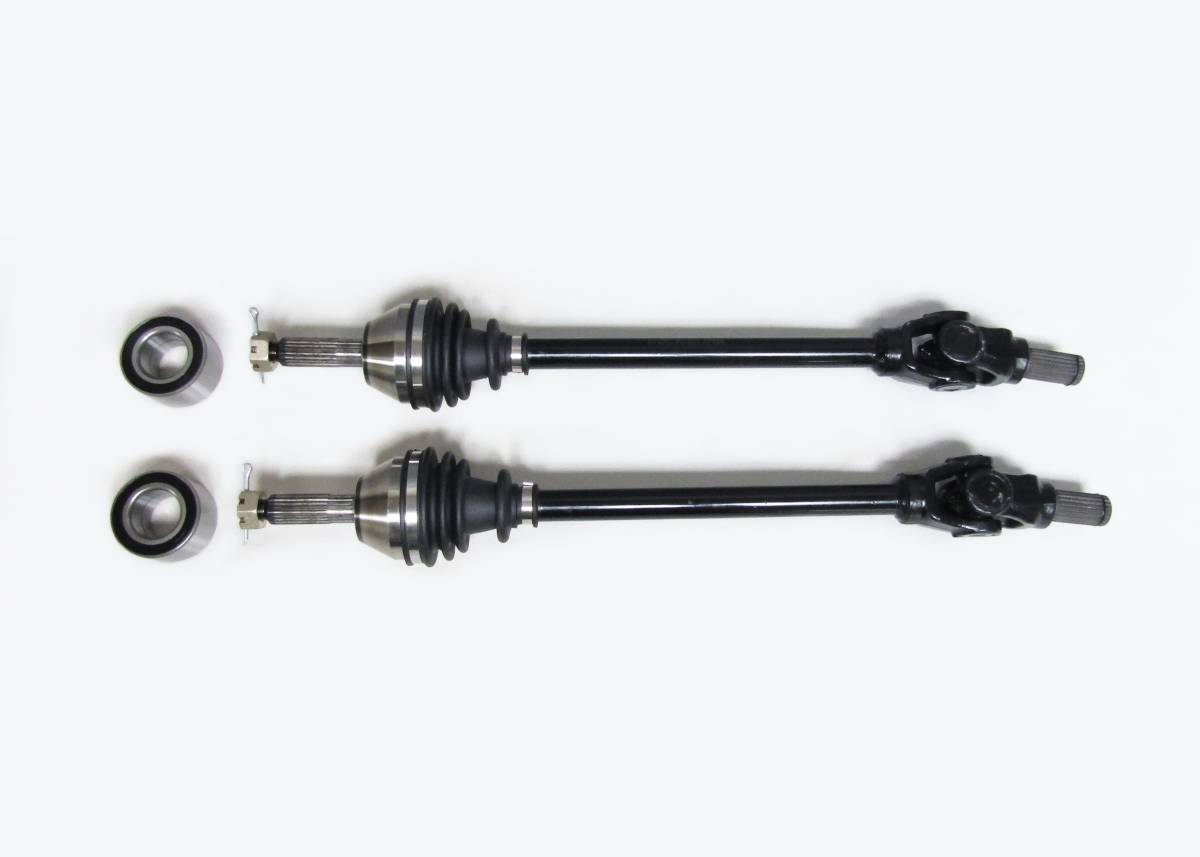

  • 2 CV/U-joint axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2005PolarisRanger 5004X4
    2005PolarisRanger 5004x4 Limited Edition
    2005PolarisRanger 5006x6
    2004PolarisRanger 5004X4
    2004PolarisRanger 5004X4Series 11
    2004PolarisRanger 5006x6
    2004PolarisRanger 5006x6Series 11
    2003PolarisRanger 5004X4Series 11
    2003PolarisRanger 5006x6Series 11
    2002PolarisRanger 5004X4Series 10 models
    2002PolarisRanger 5004X4Series 10
    2002PolarisRanger 5006x6Series 10 models
    2002PolarisRanger 5006x6Series 10

    Details

    • PO-241/PO-241/WB-1424/WB-1424
    • PO-241/PO-241/WB-1424/WB-1424
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.0 lbs.
    • W10.0000” x H5.0000” x L32.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
