Front Left CV Axle & Wheel Bearing Kit for Yamaha Rhino 450 & 660 4x4 2004-2009

Location on vehicle: Front,Left

WB-1108/YA-121
This is a new Front, Left CV axle & wheel bearing/seal kit for a Yamaha UTV.

They fit the following 4x4 models:

2006-2009 ... Rhino 450

2004-2007 ... Rhino 660

Front Left / Driver side

*Not intended for use on lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life

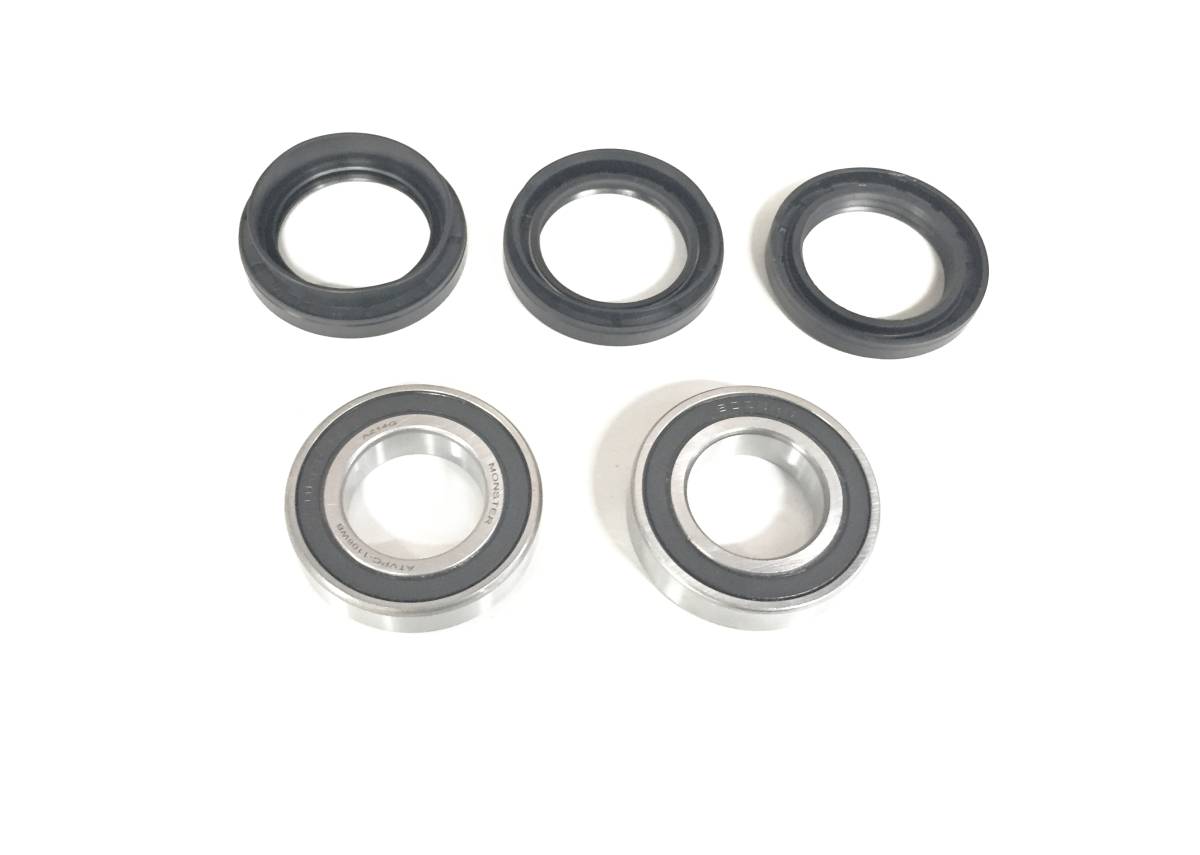

  • Double lip seals made to keep grease in and dirt out

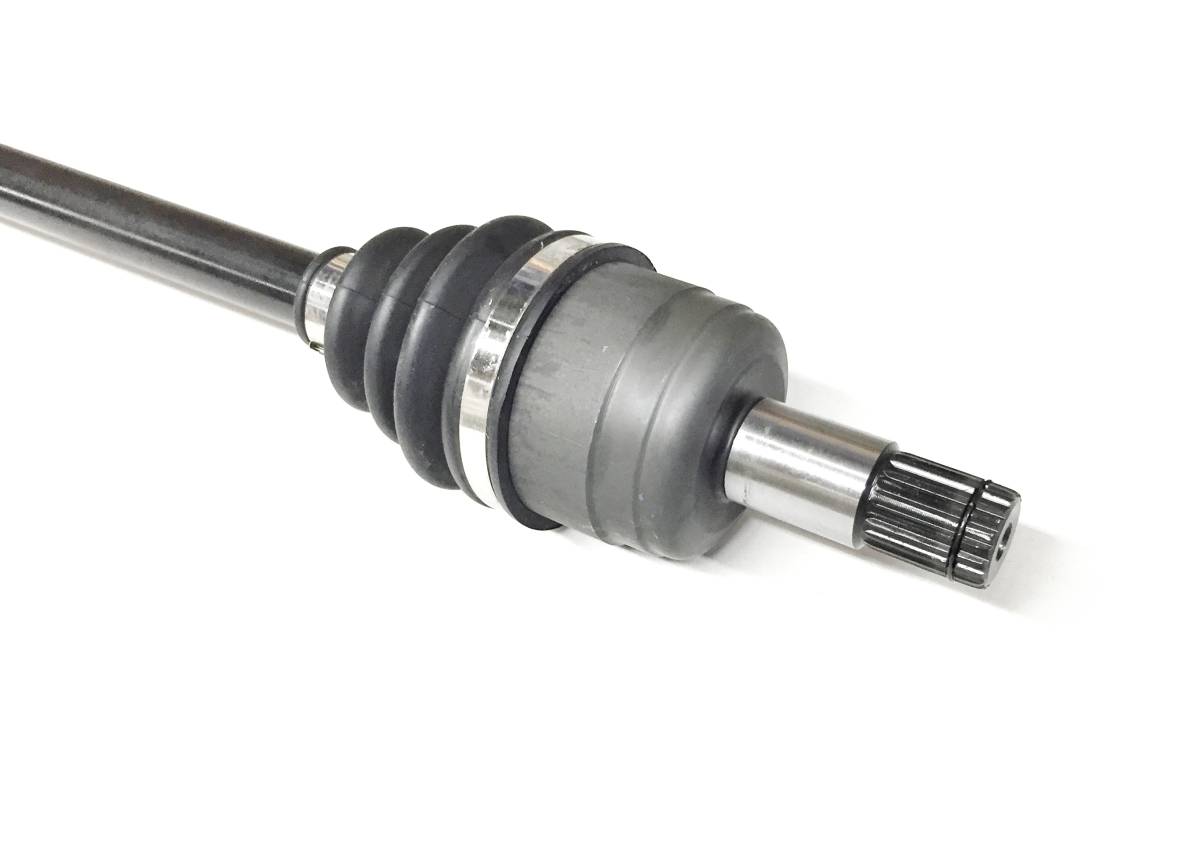

  • Inboard CV joint spline count: 21

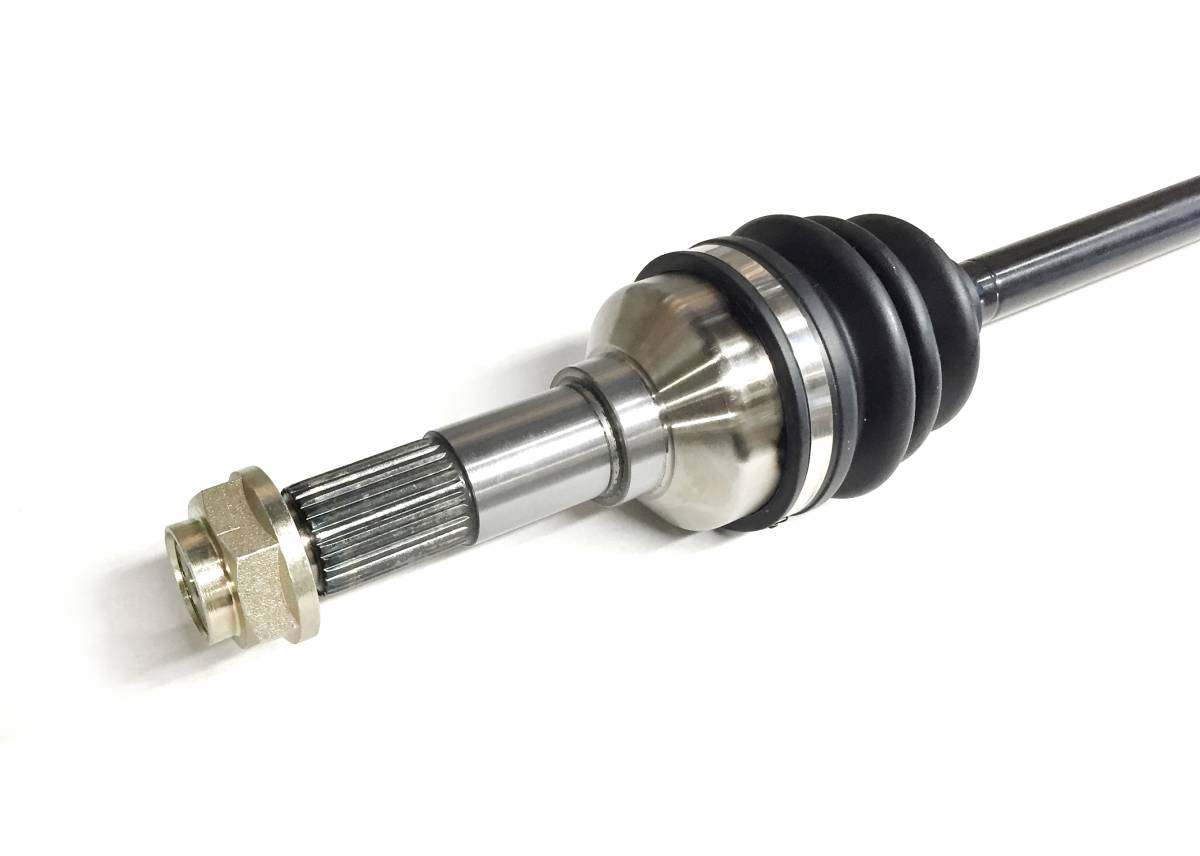

  • Outboard CV joint spline count: 27
  • Compressed axle length : 613 mm
  • Replaces Yamaha OEM # (axle) 5UG-F510F-20-00, 5KM-2510J-20-00, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $77.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

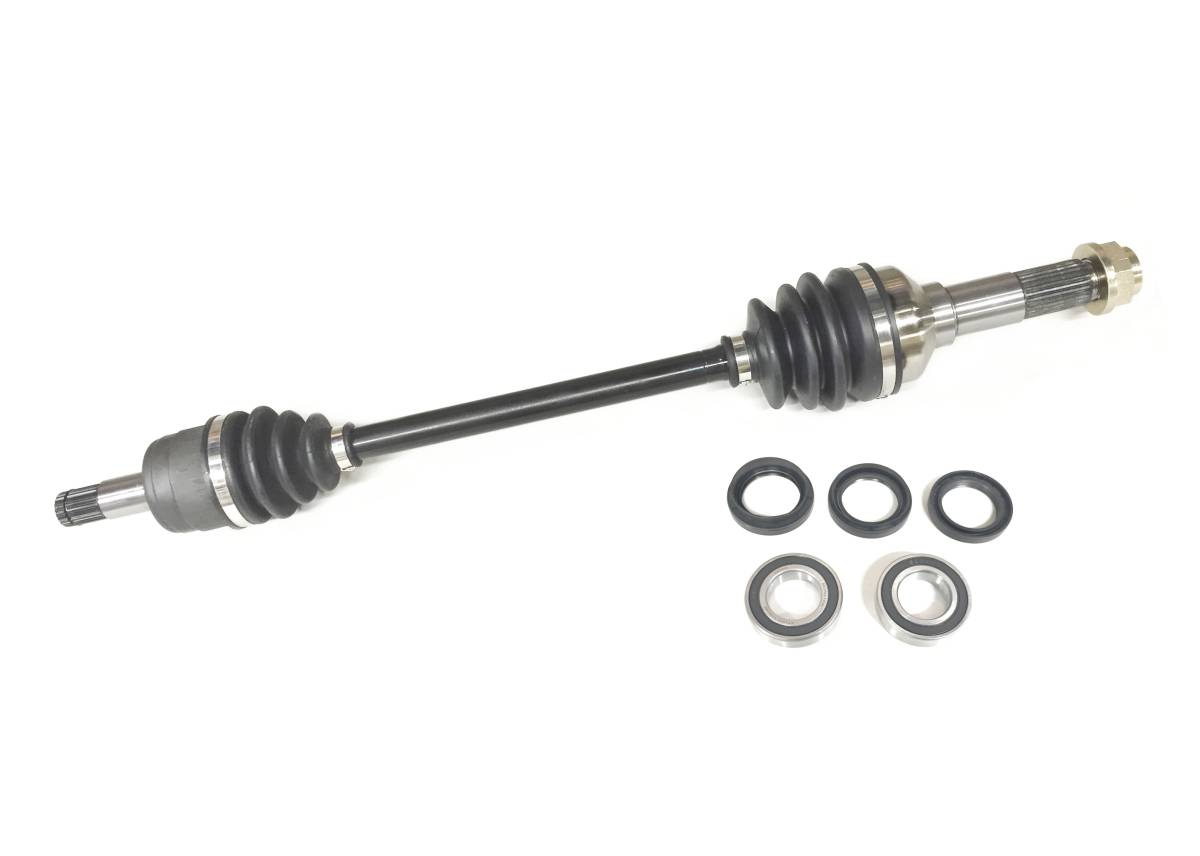

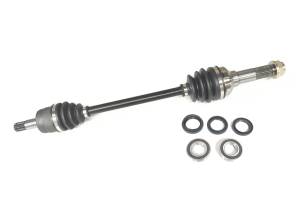

  • Fits FRONT,LEFT (driver side) on the 2006-2009 Rhino 450 & 2004-2007 Rhino 660 4x4. Includes 1 axle and 1 wheel bearing & seal kit - as pictured.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Yamaha OEM # (axle) 5UG-F510F-20-00, 5KM-2510J-20-00, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00. Compressed Length - 613 mm, Inboard Spline Count - 21, Outboard Spline Count - 27.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle & 1 wheel bearing kit
  • Application List

    YearMakeModelSubmodelNotes
    2009YamahaRhino 450YXR450FA 4x4
    2009YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FA 4x4
    2008YamahaRhino 450YXR450FH 4x4 Hunter Edition
    2008YamahaRhino 450YXR450FSE 4x4 Special Edition
    2007YamahaRhino 450YXR450FA 4x4
    2007YamahaRhino 450YXR450FASE 4x4 Special Edition
    2007YamahaRhino 450YXR450FSE 4x4 Special Edition
    2006YamahaRhino 450YXR450FA 4x4
    2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FA 4x4
    2007YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2007YamahaRhino 660YXR660FDU 4x4 Ducks Unlimited Edition
    2007YamahaRhino 660YXR660FH 4x4 Hunter Edition
    2007YamahaRhino 660YXR660FSE 4x4 Special Edition
    2007YamahaRhino 660YXR660FSP 4x4 Sport Edition
    2006YamahaRhino 660YXR660FA 4x4
    2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
    2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2006YamahaRhino 660YXR660FASE 4x4 Special Edition
    2005YamahaRhino 660YXR660FA 4x4
    2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
    2004YamahaRhino 660YXR660FA 4x4
    2004YamahaRhino 660YXR660FAH 4x4 Hunter Edition

    Details

    • WB-1108/YA-121
    • WB-1108/YA-121
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 10.5 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
