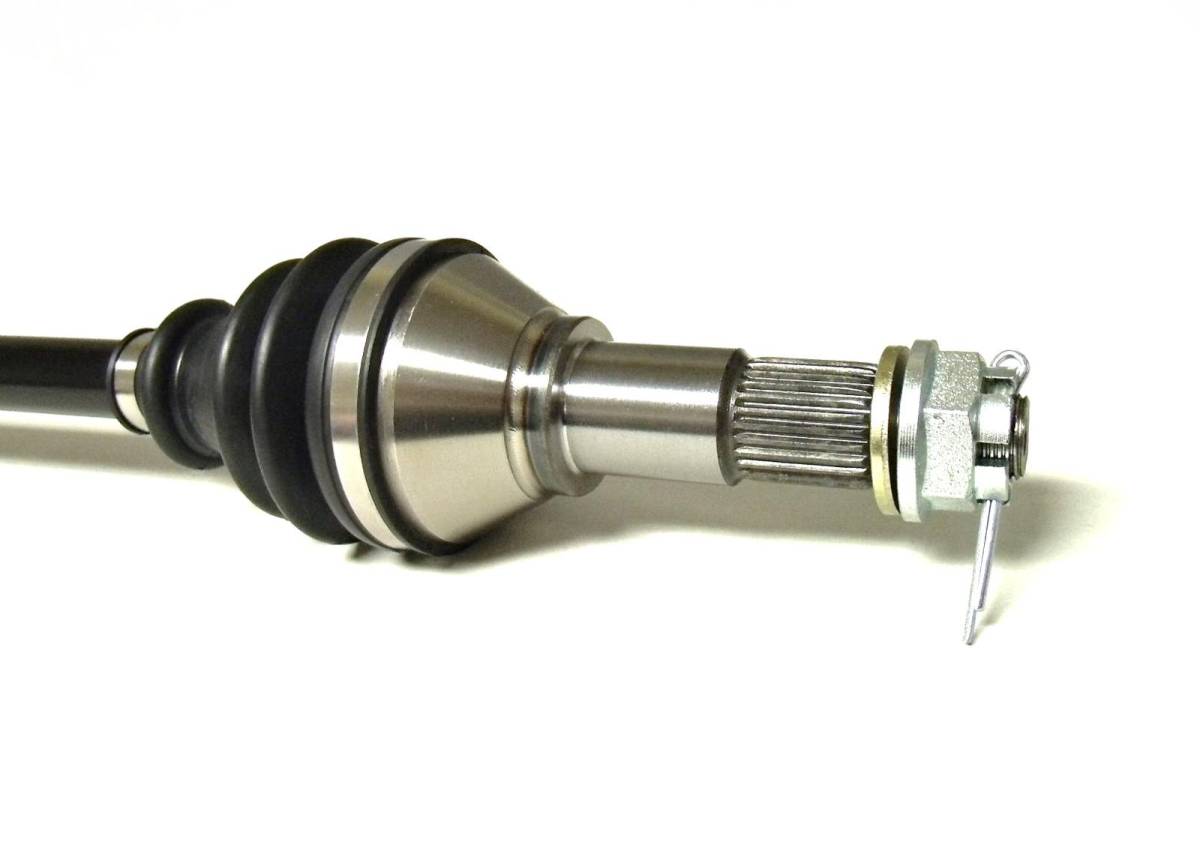

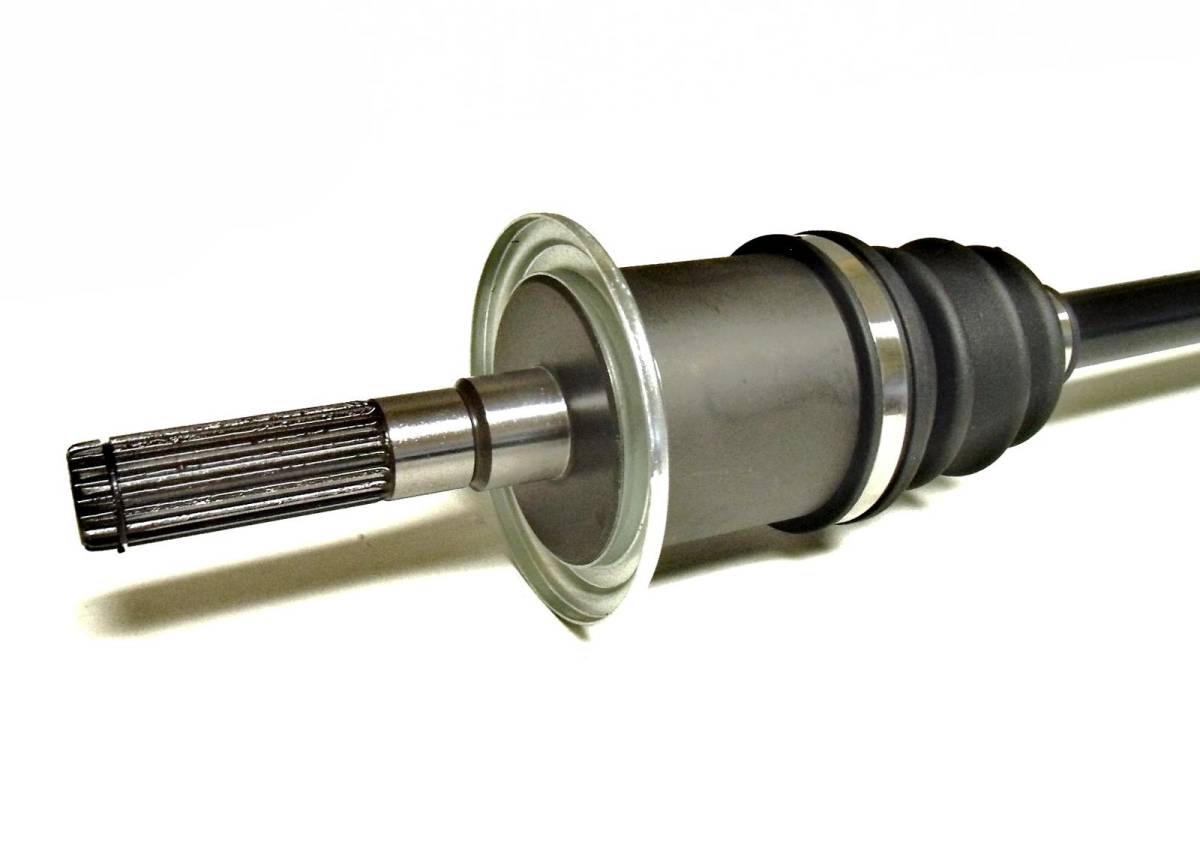

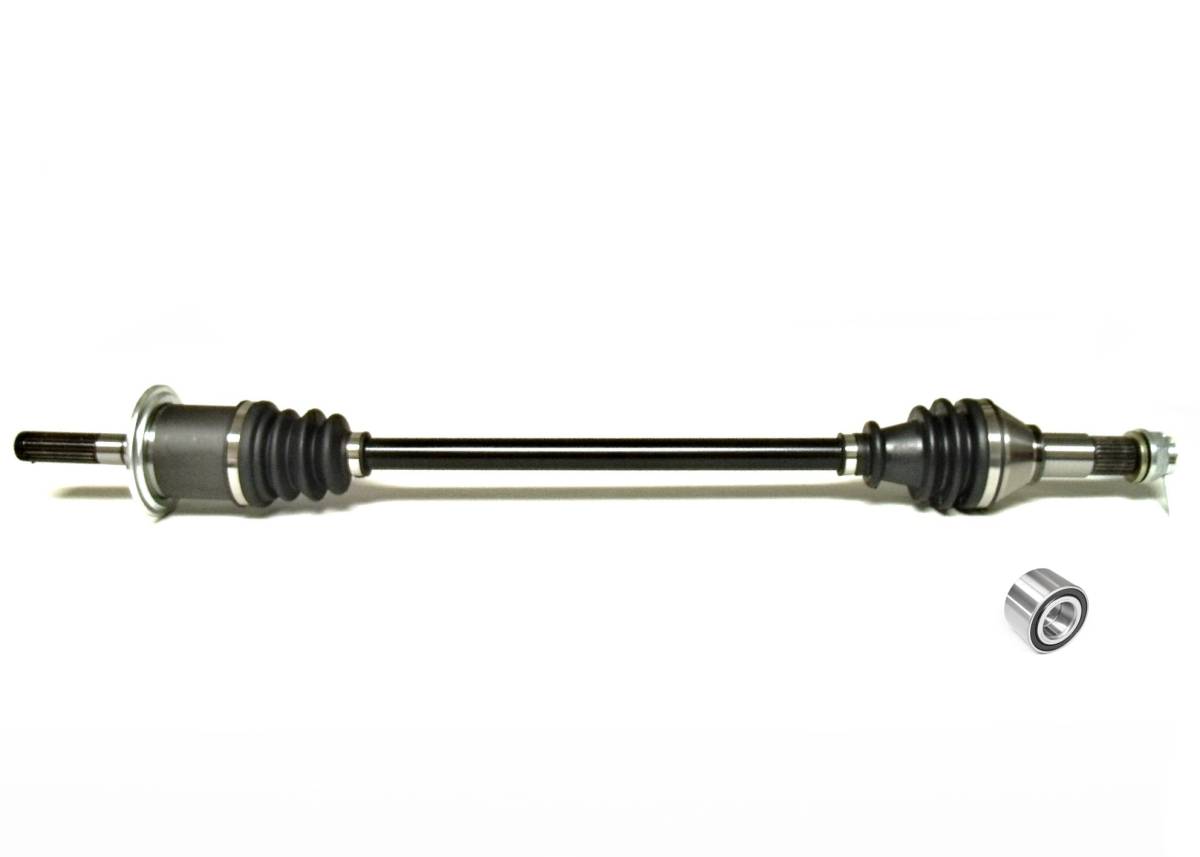

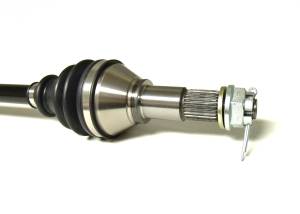

Precision Front Right CV Axle & Bearing for Can-Am 705401236, Quality Tested, Heat-Treated, 4140 Chromoly Steel, Exact Fit, ATVPC

Location on vehicle: Front,Right

(0) Reviews: Write first review
CA-217/WB-1516
This is a new front, right CV axle & wheel bearing for a Can-Am UTV.

They fit the following 4x4 models:

2013-2018 Can-Am Maverick 1000/MAX 1000 (excluding XC, XXC, XMR models)

*Not intended for use on lifted vehicles

Product features:

  • Designed and manufactured to meet or exceed OEM specifications
  • Fitted with neoprene CV boots for added wear and puncture resistance

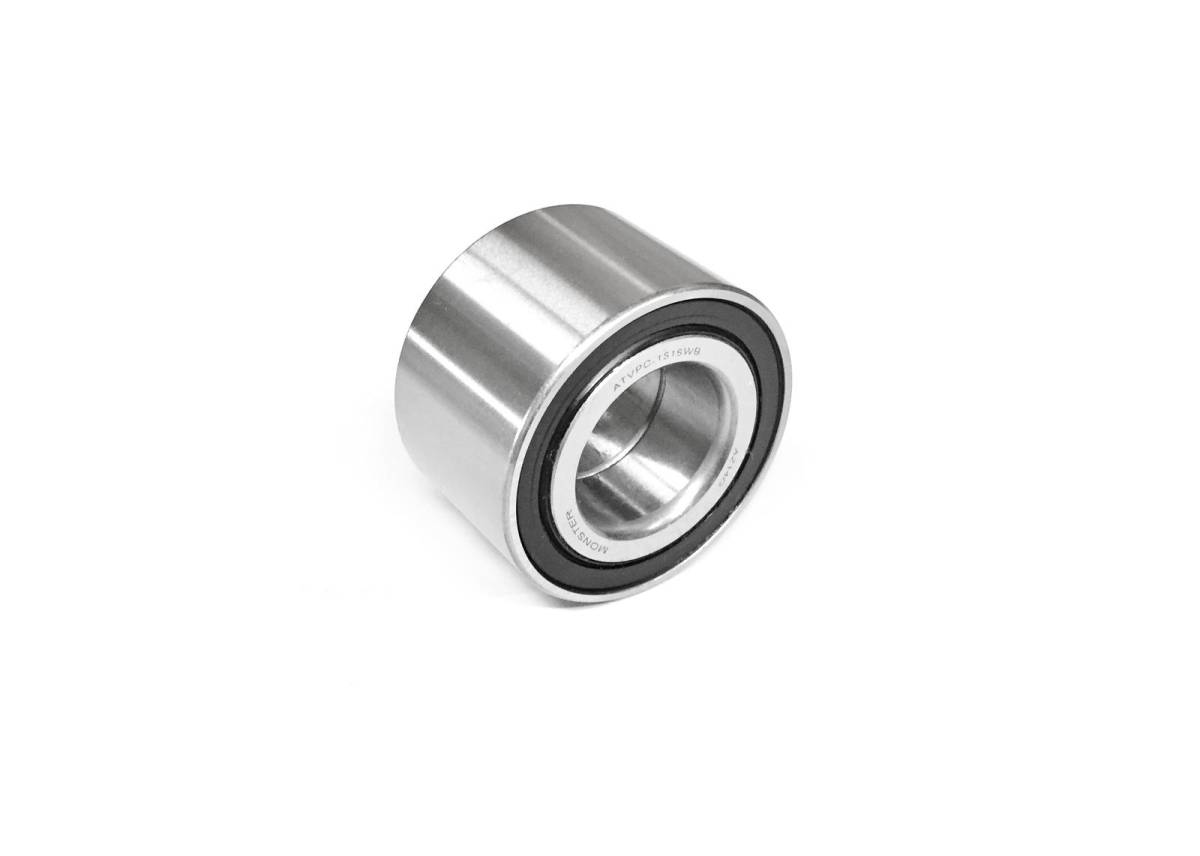

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • inobard CV joint spline count: 21
  • outboard CV joint spline count: 26
  • Compressed axle length: 768 mm
  • Replaces OEM # 705401236, 705401874, 293350040, 705400088, 293350118
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $91.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2013Can-AmMaverick 10004x4 XRS
2016Can-AmMaverick 1000R4X4
2016Can-AmMaverick 1000R4x4 DPS
2016Can-AmMaverick 1000R4x4 Turbo DPS
2016Can-AmMaverick 1000R4x4 XDS DPS
2016Can-AmMaverick 1000R4x4 XDS Turbo DPS
2016Can-AmMaverick 1000R4x4 XRS Turbo DPS
2015Can-AmMaverick 1000R4X4
2015Can-AmMaverick 1000R4x4 XDS
2015Can-AmMaverick 1000R4x4 XDS Turbo
2015Can-AmMaverick 1000R4x4 XRS DPS
2014Can-AmMaverick 1000R4X4
2014Can-AmMaverick 1000R4x4 XRS
2014Can-AmMaverick 1000R4x4 XRS DPS
2013Can-AmMaverick 1000R4X4
2018Can-AmMaverick Max 1000R4x4 DPS
2017Can-AmMaverick Max 1000R4x4 DPS
2017Can-AmMaverick Max 1000R4x4 Turbo DPS
2017Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
2017Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
2016Can-AmMaverick Max 1000R4x4 DPS
2016Can-AmMaverick Max 1000R4x4 Turbo DPS
2016Can-AmMaverick Max 1000R4x4 XDS DPS
2016Can-AmMaverick Max 1000R4x4 XDS Turbo DPS
2016Can-AmMaverick Max 1000R4x4 XRS Turbo DPS
2015Can-AmMaverick Max 1000R4X4
2015Can-AmMaverick Max 1000R4x4 XDS
2015Can-AmMaverick Max 1000R4x4 XDS Turbo
2015Can-AmMaverick Max 1000R4x4 XRS DPS
2014Can-AmMaverick Max 1000R4X4
2014Can-AmMaverick Max 1000R4x4 XRS DPS

Product Notes

  • Fits front right (passenger side) on the following Can-Am models: 2013-2018 Maverick 1000/MAX 1000 (STD, DPS, XRS, XRS-DPS & Turbo). Please note this will not fit XC, XXC, or XMR editions.
  • Features a 4140 chromoly steel bar for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearing is usually shipped inside the axle box.
  • Joints fitted with neoprene CV boots for flexibility and resistance to hot/cold temperatures. Utilizes high-performance moly grease for protection against the environment and to keep vital components lubricated. High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed length - 768 mm, Inboard spline count - 21, Outboard spline count - 26 * Replaces OEM # 705401236, 705401874, 293350040, 705400088, 293350118.
  • Warranty: 2 Years (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 1 axle, 1 wheel bearing

    • Warranty

    Limited 2 year, one-time warranty

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 12.3 lbs.
    • W5.0000” x H5.0000” x L36.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
