Front Axle Pair with Wheel Bearings for Polaris RZR 570 12-21 & RZR 800 08-14

Location on vehicle: Front,Left,Right

PO-304/PO-304/WB-1628/WB-1628
This is a set of new Front CV axles & wheel bearings for a Polaris RZR.

They fit the following 4x4 applications:

2012-2021 ... RZR 570

2008-2014 ... RZR 800

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 22 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 563 mm (both)
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $184.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect warranty

Product Notes

  • Fits front left & right on the 2012-2021 RZR 570 & 2008-2014 RZR 800 4x4.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Polaris OE # 1332440, 3514627, 3514699. Compressed Length - 563 mm (both), Inboard Spline Count - 22 (both), Outboard Spline Count 26 (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

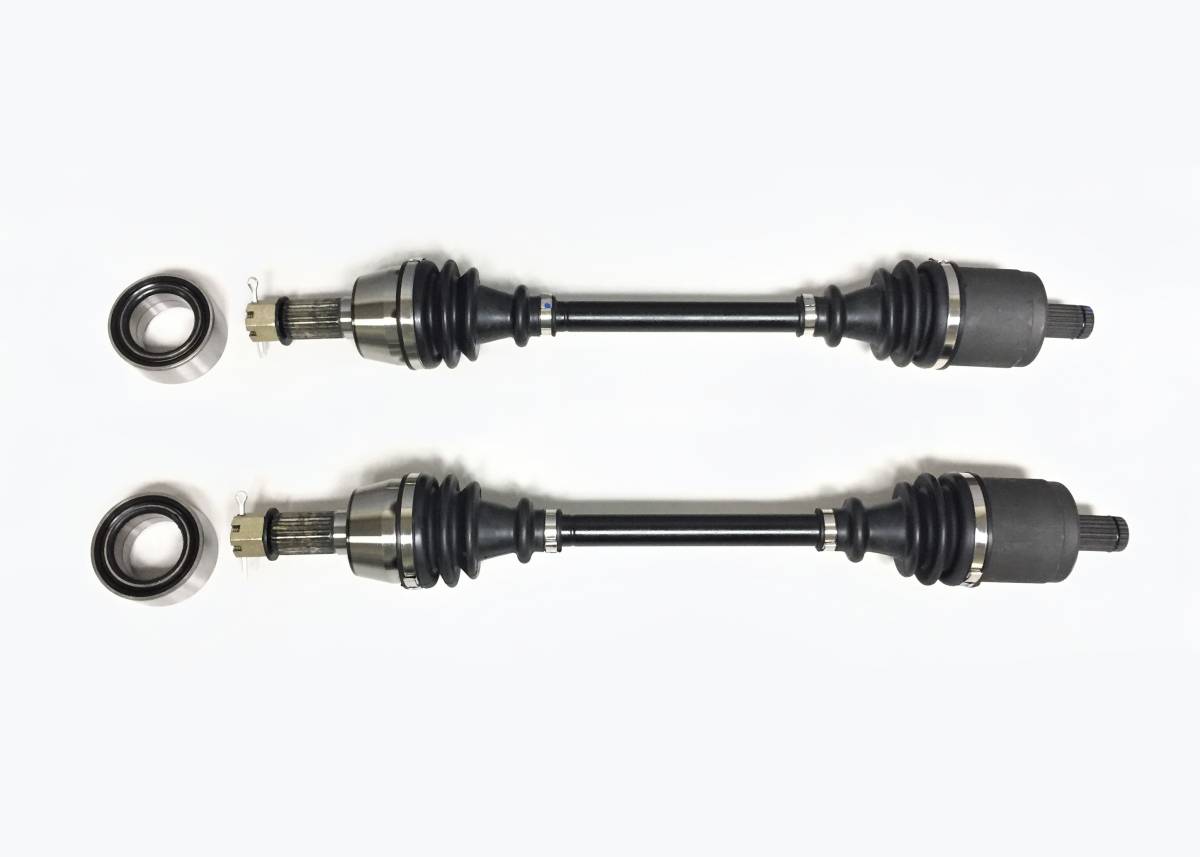

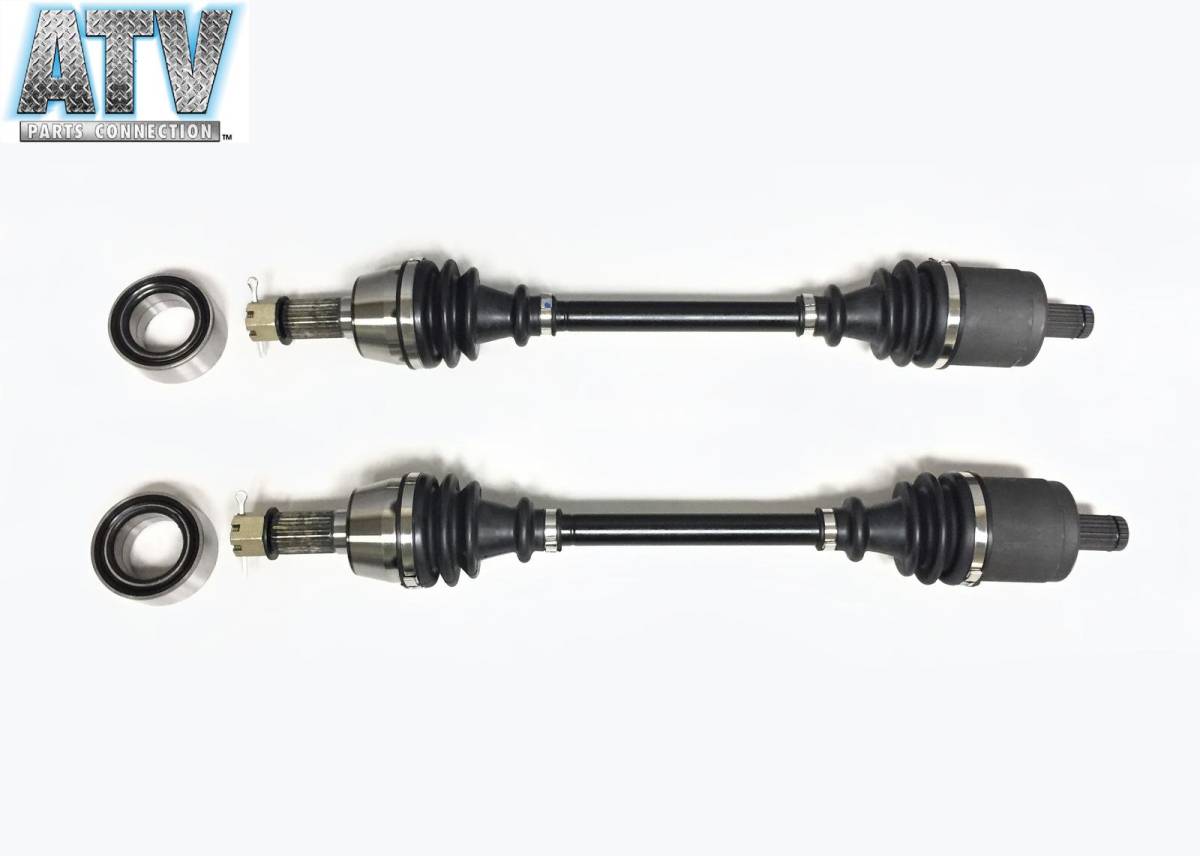

  • 2 CV Axles & 2 Wheel Bearings
  • Application List

    YearMakeModelSubmodelNotes
    2021PolarisRZR 570--
    2021PolarisRZR 570EPS Premium
    2020PolarisRZR 570--
    2020PolarisRZR 570EPS
    2020PolarisRZR 570EPS Premium
    2019PolarisRZR 570--
    2019PolarisRZR 570EPS
    2018PolarisRZR 570--
    2018PolarisRZR 570EPS
    2017PolarisRZR 570--
    2017PolarisRZR 570EPS
    2016PolarisRZR 570--
    2016PolarisRZR 570Trail EPS
    2015PolarisRZR 570--
    2015PolarisRZR 570EPS
    2015PolarisRZR 570LE Trail EPS
    2015PolarisRZR 570Trail EPS
    2014PolarisRZR 570--
    2014PolarisRZR 570EPS
    2014PolarisRZR 570LE EPS
    2014PolarisRZR 570LE Trail EPS
    2013PolarisRZR 570EFI
    2013PolarisRZR 570LE Trail EFI EPS
    2012PolarisRZR 570EFI
    2014PolarisRZR 800--
    2014PolarisRZR 800LE EPS
    2014PolarisRZR 800Pursuit
    2014PolarisRZR 800Walker Evans EPS
    2014PolarisRZR 800XC Edition
    2013PolarisRZR 800EFI
    2013PolarisRZR 800LE EFI
    2013PolarisRZR 800LE EFI EPS
    2013PolarisRZR 800Pursuit
    2012PolarisRZR 800EFI
    2012PolarisRZR 800EFI EPS
    2012PolarisRZR 800EFI LE
    2012PolarisRZR 800EFI LE EPS
    2012PolarisRZR 800Walker Evans Edition EFI
    2011PolarisRZR 800EFI
    2011PolarisRZR 800EFI EPS
    2011PolarisRZR 800Pursuit EFI
    2010PolarisRZR 800EFI
    2010PolarisRZR 800EFI EPS
    2010PolarisRZR 800Walker Evans Edition EFI
    2009PolarisRZR 800EFI
    2009PolarisRZR 800LE
    2008PolarisRZR 800EFI

    Details

    • PO-304/PO-304/WB-1628/WB-1628
    • PO-304/PO-304/WB-1628/WB-1628
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 23.0 lbs.
    • W10.0000” x H5.0000” x L28.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
