Rear Axle Pair with Wheel Bearing Kits for Yamaha Rhino 450 & 660 2004-2009

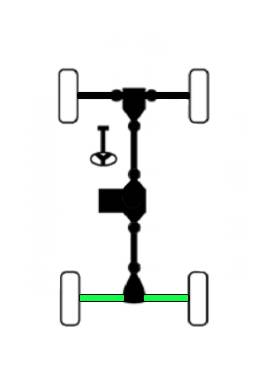

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
WB-1542/WB-1542/YA-322/YA-323

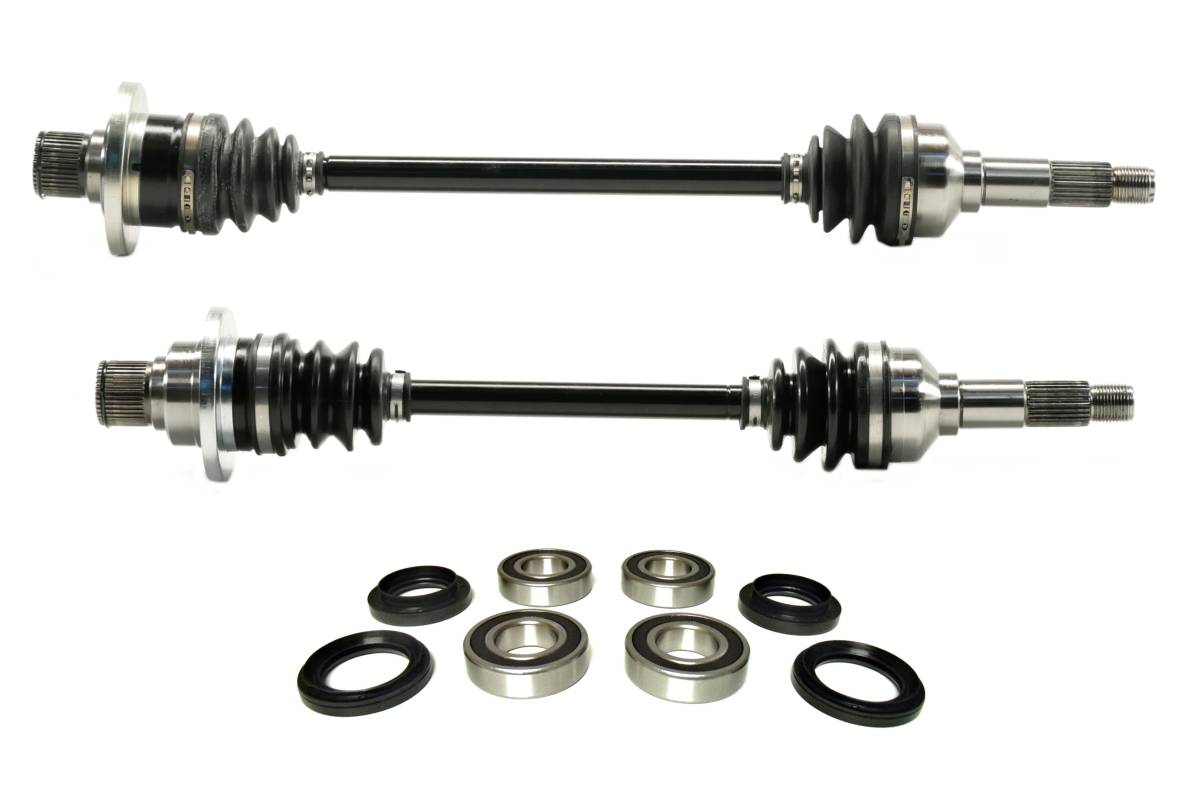

This is a set of new Rear CV axles & wheel bearing kits for a Yamaha UTV.

They fit the following 4x4 applications:

2006-2009 ... Rhino 450

2004-2007 ... Rhino 660

Rear, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 39 (both)
  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left - 597 mm, Right - 630 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2009YamahaRhino 450YXR450FA 4x4
2009YamahaRhino 450YXR450FH 4x4 Hunter Edition
2008YamahaRhino 450YXR450FA 4x4
2008YamahaRhino 450YXR450FH 4x4 Hunter Edition
2008YamahaRhino 450YXR450FSE 4x4 Special Edition
2007YamahaRhino 450YXR450FA 4x4
2007YamahaRhino 450YXR450FASE 4x4 Special Edition
2007YamahaRhino 450YXR450FSE 4x4 Special Edition
2006YamahaRhino 450YXR450FA 4x4
2006YamahaRhino 450YXR450FAH 4x4 Hunter Edition
2007YamahaRhino 660YXR660FA 4x4
2007YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
2007YamahaRhino 660YXR660FDU 4x4 Ducks Unlimited Edition
2007YamahaRhino 660YXR660FH 4x4 Hunter Edition
2007YamahaRhino 660YXR660FSE 4x4 Special Edition
2007YamahaRhino 660YXR660FSP 4x4 Sport Edition
2006YamahaRhino 660YXR660FA 4x4
2006YamahaRhino 660YXR660FAEX 4x4 Exploring Edition
2006YamahaRhino 660YXR660FAH 4x4 Hunter Edition
2006YamahaRhino 660YXR660FASE 4x4 Special Edition
2005YamahaRhino 660YXR660FA 4x4
2005YamahaRhino 660YXR660FAH 4x4 Hunter Edition
2004YamahaRhino 660YXR660FA 4x4
2004YamahaRhino 660YXR660FAH 4x4 Hunter Edition

Product Notes

  • Fits rear, left and right on the following Yamaha UTV models: 2006-2009 Rhino 450, 2004-2007 Rhino 660.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 5UG-F531H-10-00, 5UG-F531H-11-00, 5UG-F53B0-20-00, 5UG-F53B0-21-00, 3306-206Y2-00 93106-42800-00 93106-38800-00. Compressed length: left - 597 mm, right - 630 mm, Inboard spline count: 39 (both), Outboard spline count: 27 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

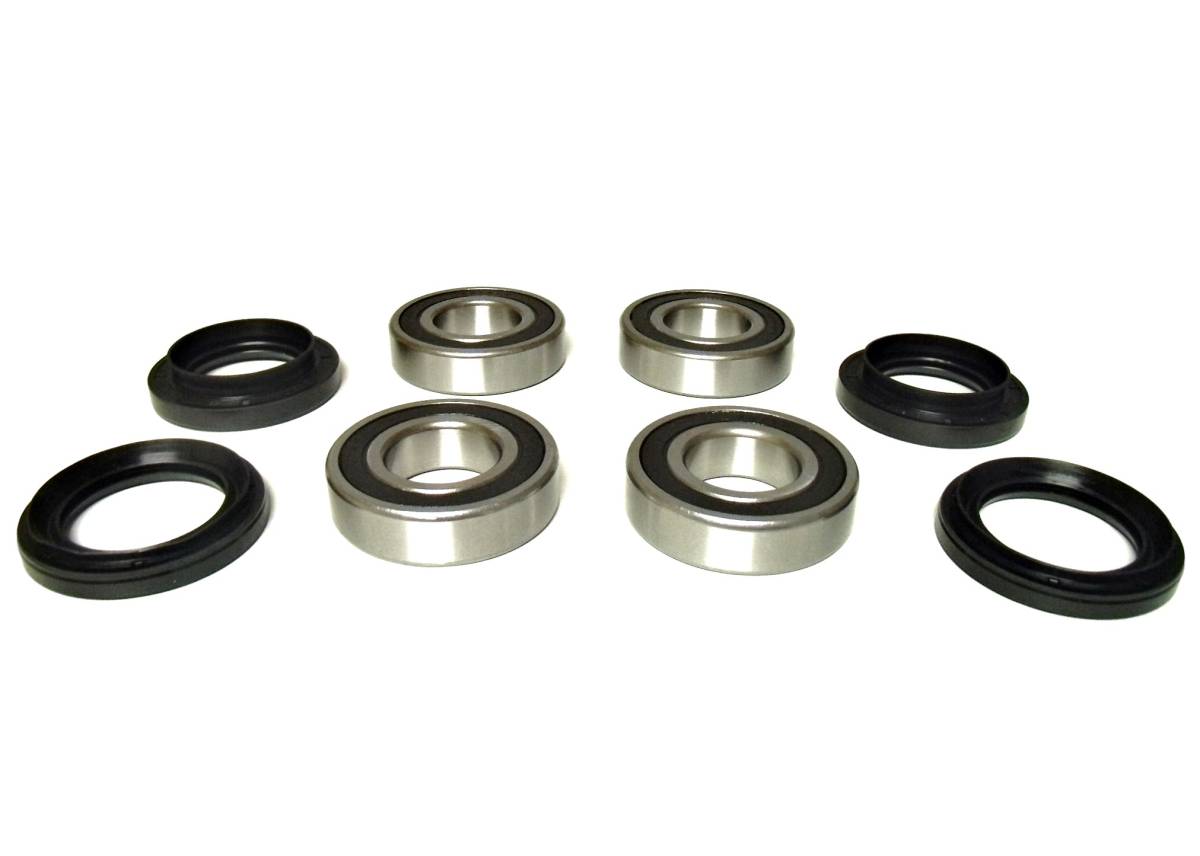

  • 2 CV axles & 2 wheel bearing kits

    • Warranty

    1 year factory defect limited warranty

    Details

    • WB-1542/WB-1542/YA-322/YA-323
    • WB-1542/WB-1542/YA-322/YA-323
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New
