Front Left CV Axle for Arctic Cat 650 V2 4x4 2004

Location on vehicle: Front,Left

AC-144

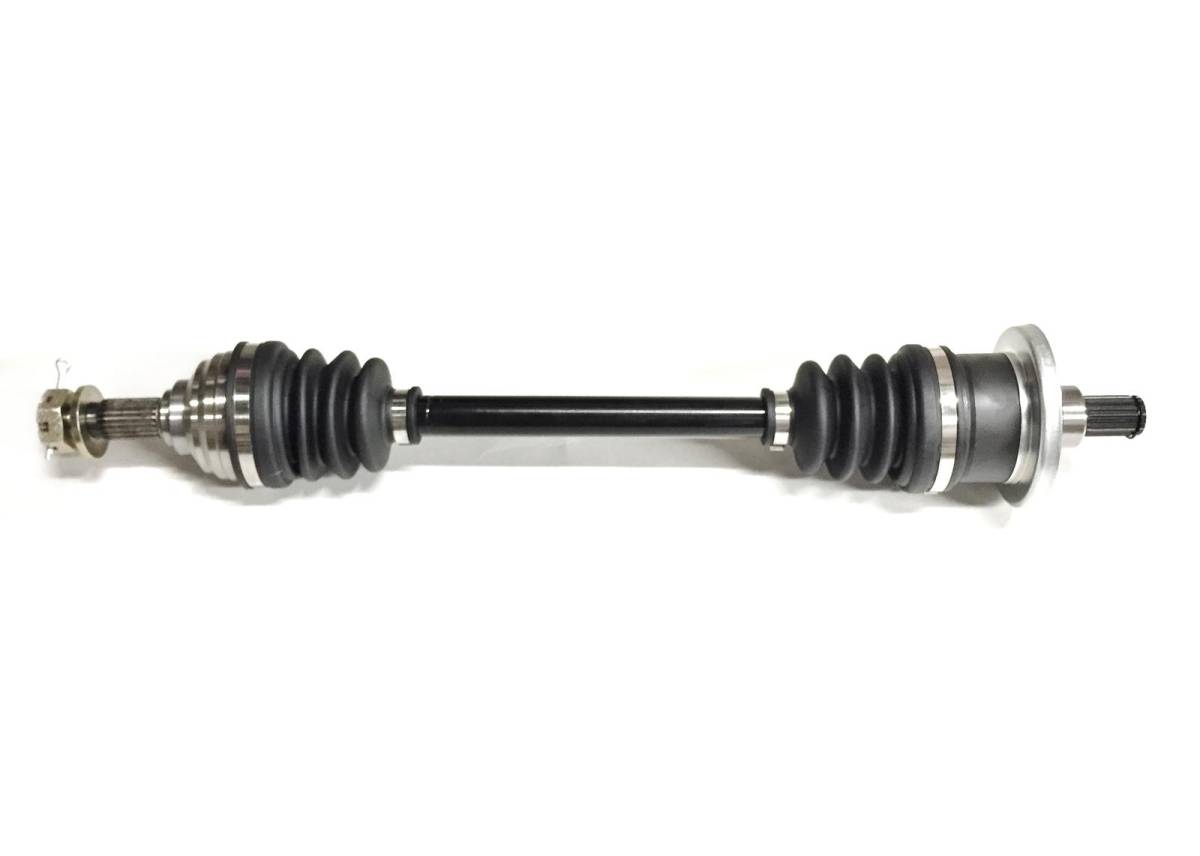

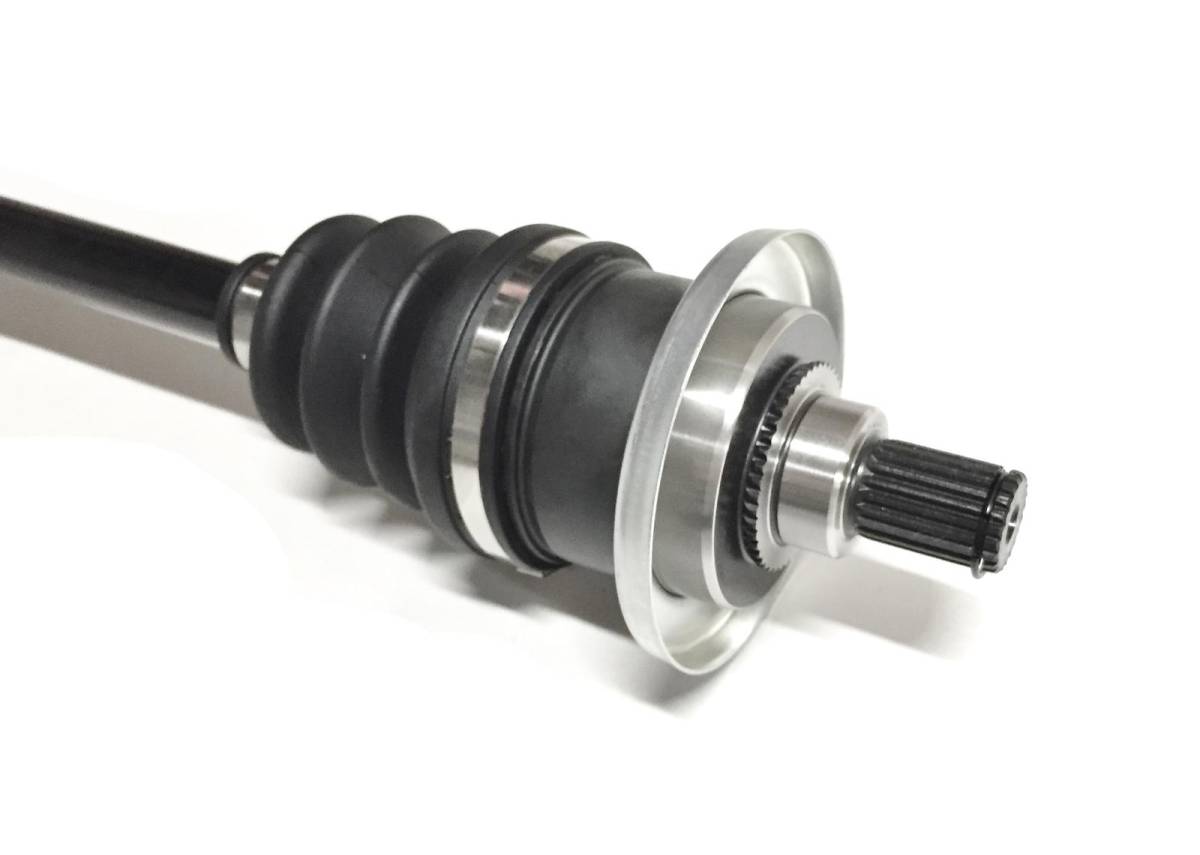

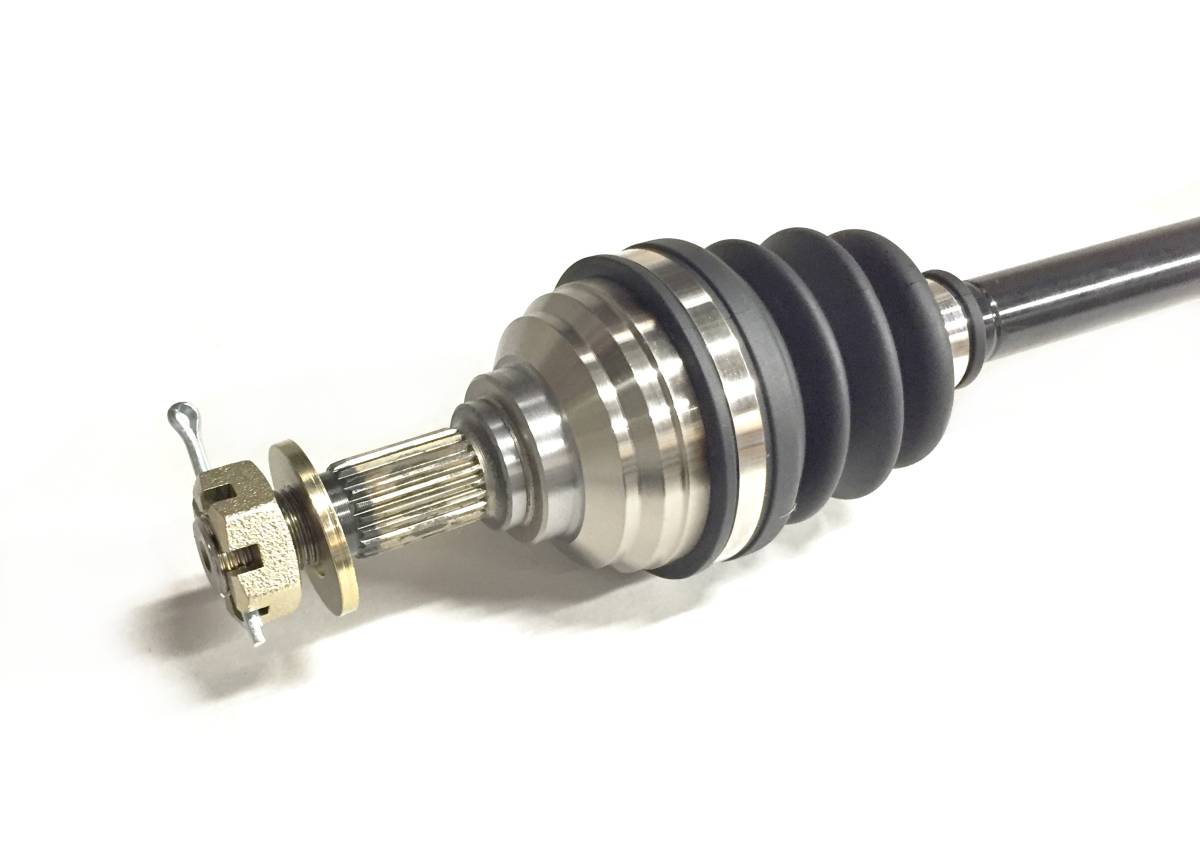

This is a new Front, Left CV axle for an Arctic Cat ATV.

It will fit the following 4x4 models:

2004 ... 650

(A2004ISR4BUS-G/R/Z, A2004ISR4BUS-S/T/V MRP, A2004ISR4BUSA SE)

Front, Left (driver side)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 21
  • Compressed overall axle length: 511 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $71.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left (driver side) on the 2004 Arctic Cat 650 V2 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length: 551 mm, Inboard Spline Count: 21, Outboard Spline Count: 21.
  • Replaces Arctic Cat OEM # 0502-546.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2004Arctic Cat6504x4 V2 Automatic
    2004Arctic Cat6504x4 V2 LE Automatic
    2004Arctic Cat6504x4 V2 MRP Automatic

    Details

    Shipping Information

    • Item Requires Shipping
    • 9.6 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
