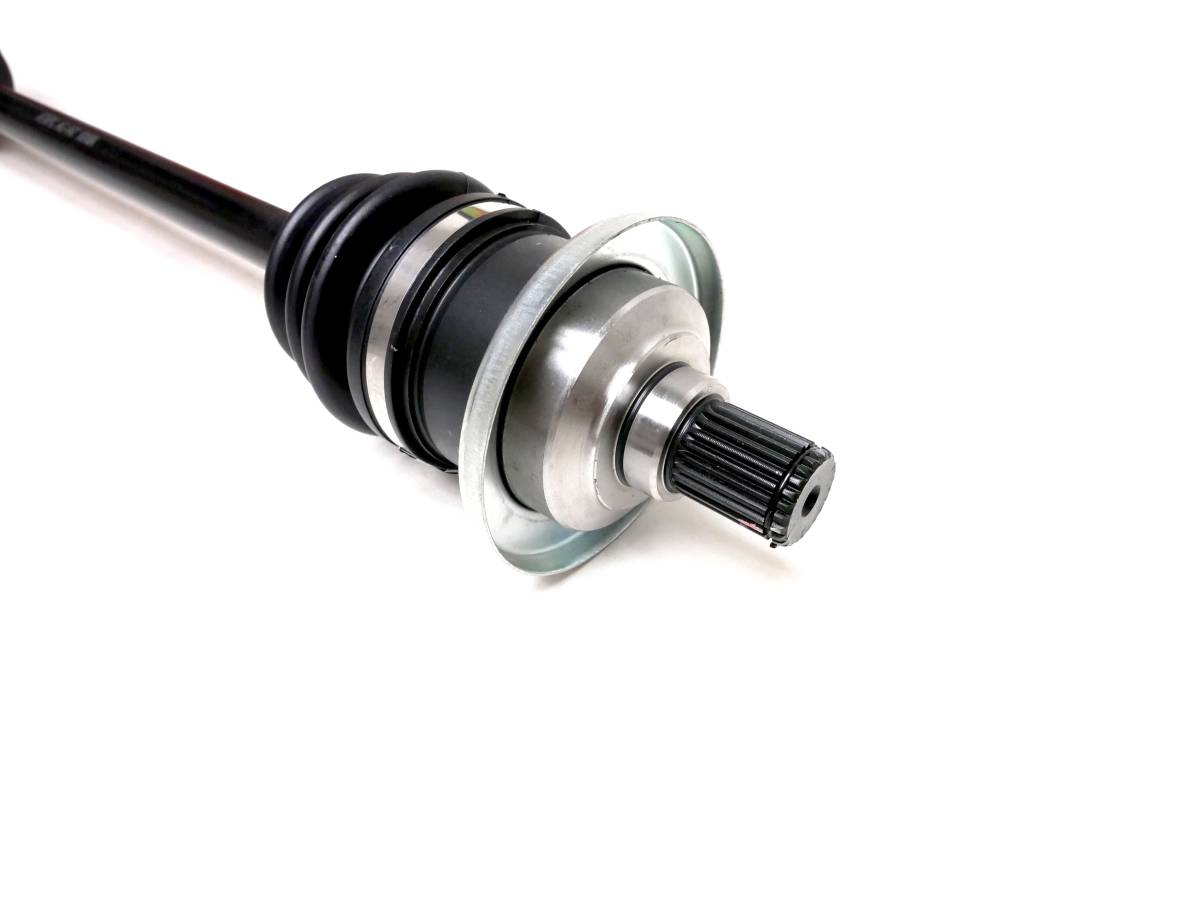

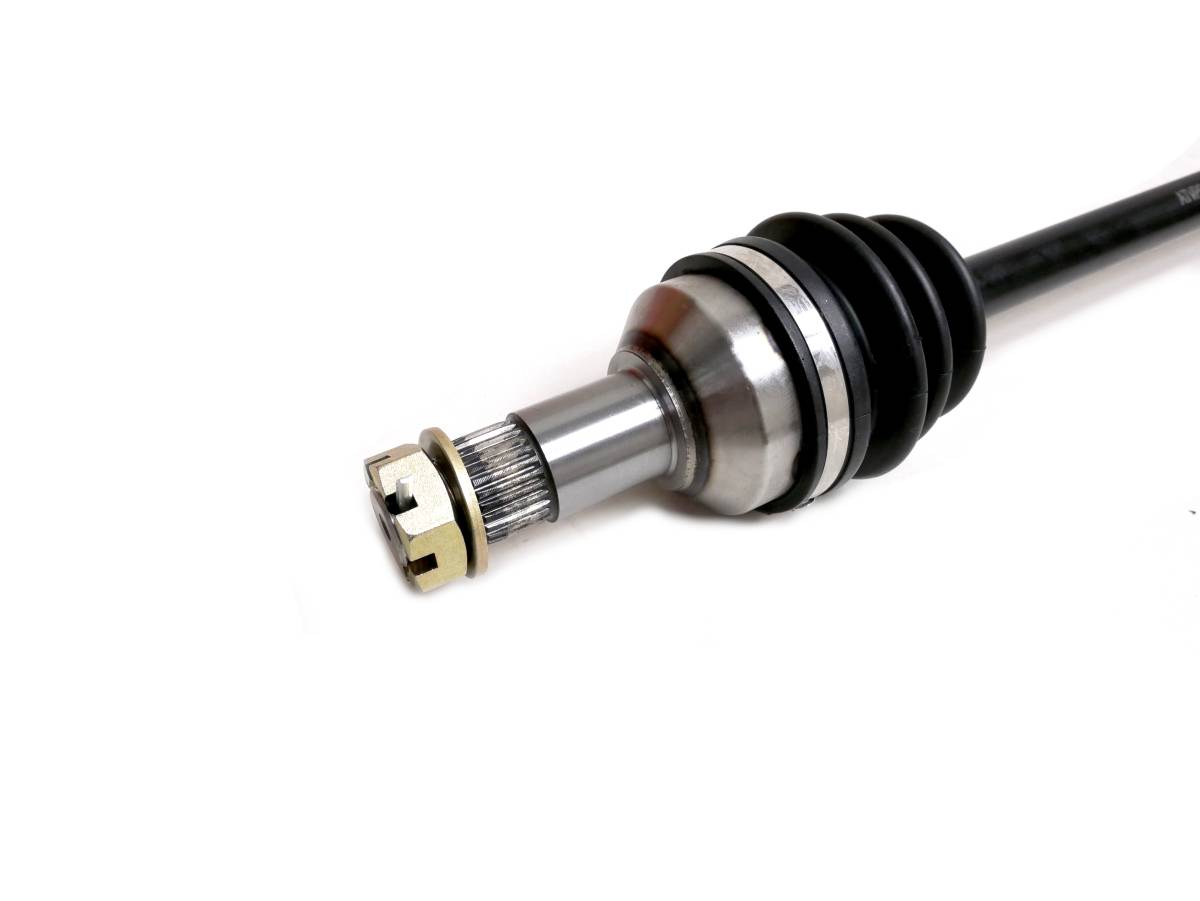

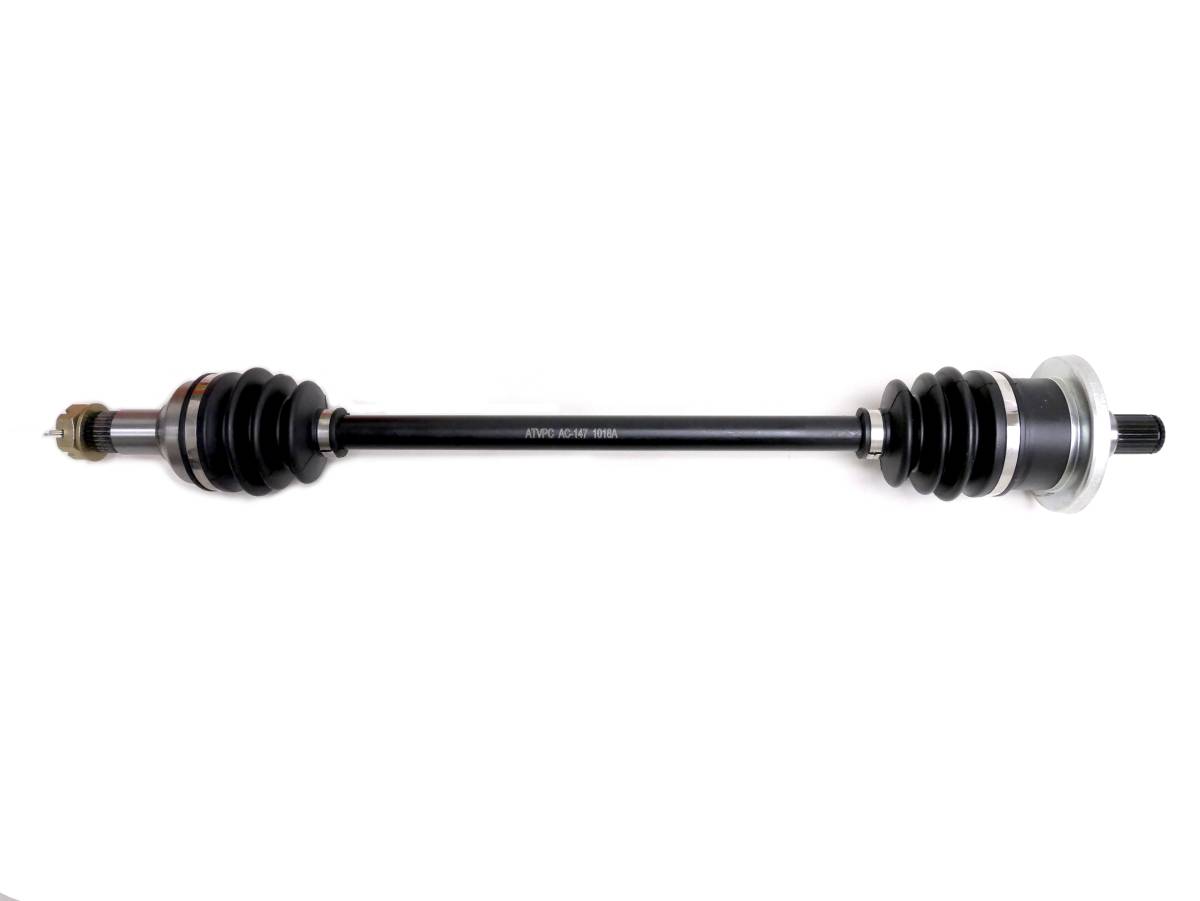

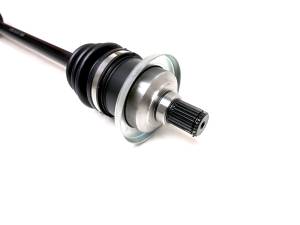

Front CV Axle for Arctic Cat Prowler 550 650 700 1000 4x4, 1502-940

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-147
This is a new Front CV axle for a Honda ATV.

It will fit front right (passenger side) on the following models:

2011-2015 ... Prowler HDX 700

2009-2014 ... Prowler XTZ 1000

It will fit front left (driver side) on the following models:

2009-2014 ... Prowler 550

2006-2009 ... Prowler 650

2008-2014 ... Prowler XT/XTX 700

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 695 mm
  • Replaces Arctic Cat OEM # 1502-940, 0502-733, 1502-347, 1502-803
Limited Supply: only 9 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $82.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front right (passenger side) on the 2011-2015 Prowler HDX 700 & 2009-2014 Prowler XTZ 1000.
  • Fits front left (driver side) on the 2009-2014 Prowler 550, 2006-2009 Prowler 650, & 2008-2014 Prowler XTX 700.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 695 mm, Inboard Spline Count - 24, Outboard Spline Count - 27.
  • Replaces Arctic Cat OEM # 1502-940, 0502-733, 1502-347, 1502-803. Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2009Arctic CatProwler 5504x4 Flatbedfront left (driver side)
    2008Arctic CatProwler 6504x4 H1 Automaticfront left (driver side)
    2007Arctic CatProwler 6504x4 H1 Automaticfront left (driver side)
    2006Arctic CatProwler 6504x4 H1 Automaticfront left (driver side)
    2014Arctic CatProwler HDX 7004X4front right (passenger side)
    2014Arctic CatProwler HDX 7004x4 Limitedfront right (passenger side)
    2013Arctic CatProwler HDX 7004X4front right (passenger side)
    2012Arctic CatProwler HDX 7004x4 EFIfront right (passenger side)
    2012Arctic CatProwler HDX 7004x4 EPSfront right (passenger side)
    2011Arctic CatProwler HDX 7004x4 EPSfront right (passenger side)
    2011Arctic CatProwler HDX 7004x4 H1 EFIfront right (passenger side)
    2014Arctic CatProwler XT 5504X4front left (driver side)
    2013Arctic CatProwler XT 5504X4front left (driver side)
    2012Arctic CatProwler XT 5504x4 EFIfront left (driver side)
    2011Arctic CatProwler XT 5504x4 H1 EFIfront left (driver side)
    2010Arctic CatProwler XT 5504X4front left (driver side)
    2009Arctic CatProwler XT 6504x4 H1 Automaticfront left (driver side)
    2008Arctic CatProwler XT 6504x4 H1 Automaticfront left (driver side)
    2008Arctic CatProwler XT 6504x4 H1 M4 Automaticfront left (driver side)
    2007Arctic CatProwler XT 6504x4 H1 Automaticfront left (driver side)
    2006Arctic CatProwler XT 6504x4 H1 Automaticfront left (driver side)
    2014Arctic CatProwler XTX 7004X4front left (driver side)
    2013Arctic CatProwler XTX 7004X4front left (driver side)
    2012Arctic CatProwler XTX 7004x4 EFIfront left (driver side)
    2011Arctic CatProwler XTX 7004x4 EPSfront left (driver side)
    2011Arctic CatProwler XTX 7004x4 H1 EFIfront left (driver side)
    2010Arctic CatProwler XTX 7004X4front left (driver side)
    2010Arctic CatProwler XTX 7004x4 H1 EFIfront left (driver side)
    2009Arctic CatProwler XTX 7004X4front left (driver side)
    2009Arctic CatProwler XTX 7004x4 LEfront left (driver side)
    2009Arctic CatProwler XTX 7004x4 M4front left (driver side)
    2008Arctic CatProwler XTX 7004x4 H1 Automaticfront left (driver side)
    2014Arctic CatProwler XTZ 10004X4front right (passenger side)
    2013Arctic CatProwler XTZ 10004X4front right (passenger side)
    2012Arctic CatProwler XTZ 10004x4 EFIfront right (passenger side)
    2011Arctic CatProwler XTZ 10004x4 H2 EFIfront right (passenger side)
    2010Arctic CatProwler XTZ 10004X4front right (passenger side)
    2010Arctic CatProwler XTZ 10004x4 H2 EFIfront right (passenger side)
    2009Arctic CatProwler XTZ 10004x4 Bajafront right (passenger side)
    2009Arctic CatProwler XTZ 10004x4 H2 EFIfront right (passenger side)

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.1 lbs.
    • W5.0000” x H5.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
