Front CV Axle for Polaris Ranger ETX, 500, 570 & EV 4x4 1333238

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
PO-331

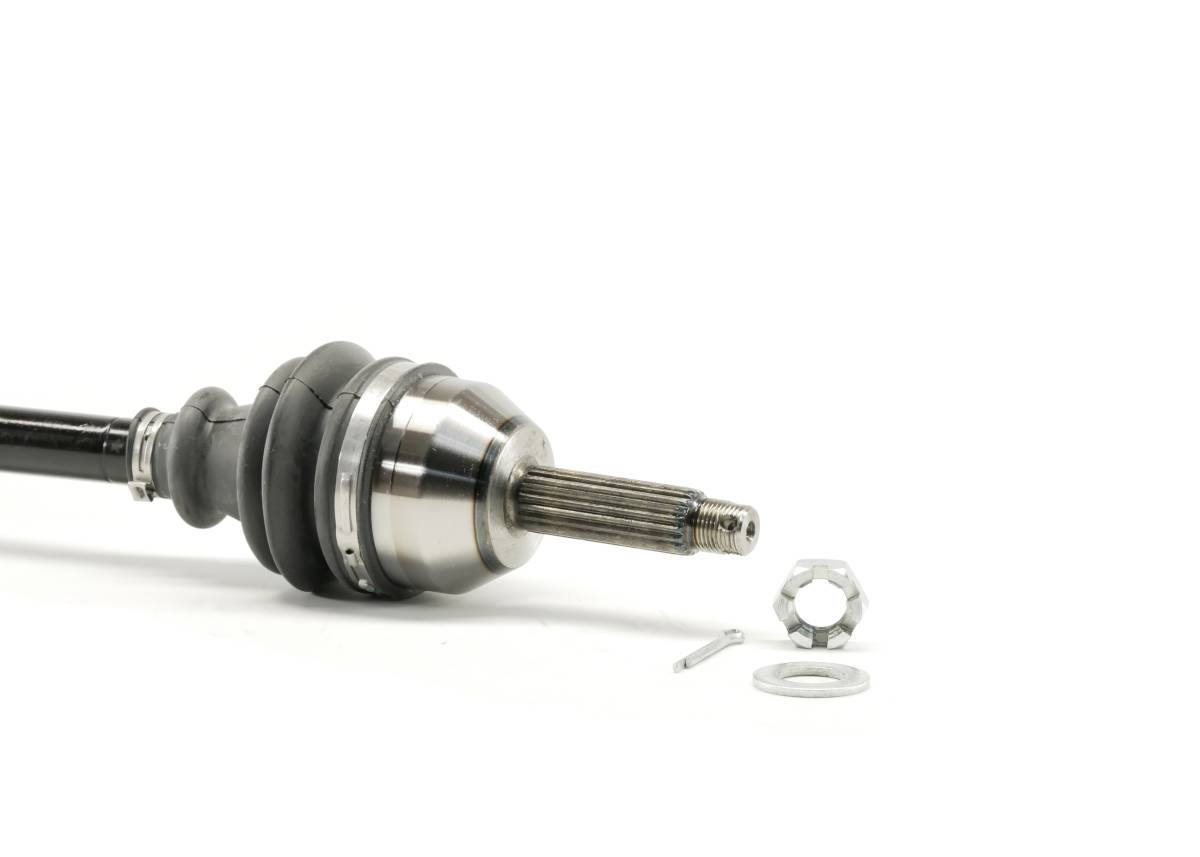

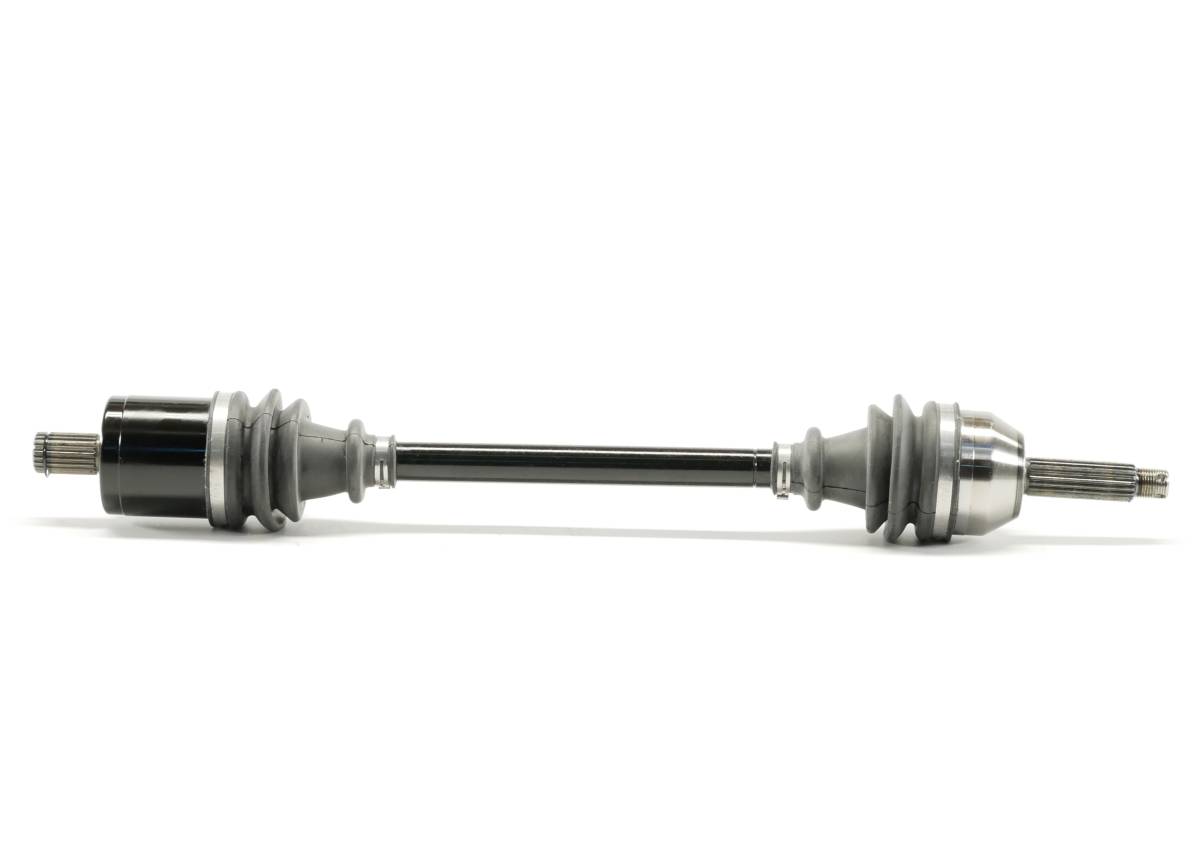

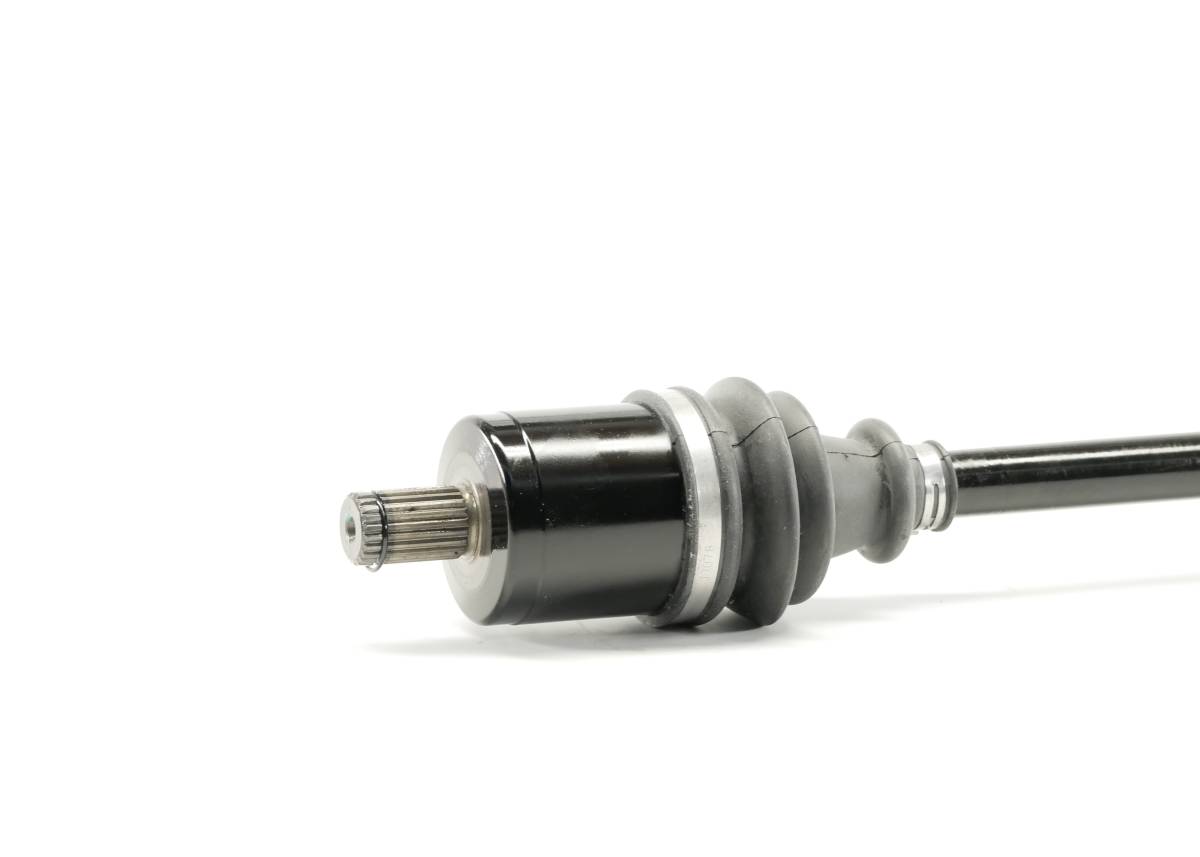

This is a new front CV axle for a Polaris UTV.

It fits FRONT, LEFT or RIGHT on the following models:

2015-2017 Ranger ETX

2018-2022 Ranger 500

2015-2021 Ranger 570 Midsize/Crew (will not fit Full Size & XP)

2022-2023 Ranger HD 570

2015-2022 Ranger EV

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 Chromoly steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 619 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2022PolarisRanger 500--
2021PolarisRanger 500--
2020PolarisRanger 500--
2019PolarisRanger 500--
2018PolarisRanger 500--
2021PolarisRanger 570--
2021PolarisRanger 570Premium
2020PolarisRanger 570--
2020PolarisRanger 570EPS
2019PolarisRanger 570--
2019PolarisRanger 570EPS
2018PolarisRanger 570--
2018PolarisRanger 570EPS
2017PolarisRanger 570--
2017PolarisRanger 570EPS
2017PolarisRanger 570Pursuit Camo
2016PolarisRanger 570--
2016PolarisRanger 570EPS
2016PolarisRanger 570Hunter Edition EPS
2016PolarisRanger 570Pursuit Camo
2015PolarisRanger 570--
2015PolarisRanger 570EPS
2021PolarisRanger Crew 570-44X4
2021PolarisRanger Crew 570-44x4 Premium
2020PolarisRanger Crew 570-44X4
2020PolarisRanger Crew 570-44x4 Premium
2019PolarisRanger Crew 570-44X4
2019PolarisRanger Crew 570-44x4 EPS
2018PolarisRanger Crew 570-44X4
2018PolarisRanger Crew 570-44x4 EPS
2017PolarisRanger Crew 570-44X4
2017PolarisRanger Crew 570-44x4 EPS
2017PolarisRanger Crew 570-4Pursuit Camo
2016PolarisRanger Crew 570-44X4
2016PolarisRanger Crew 570-44x4 EPS
2016PolarisRanger Crew 570-4Pursuit Camo
2016PolarisRanger ETX--
2015PolarisRanger ETX--
2022PolarisRanger EV--
2021PolarisRanger EV--
2020PolarisRanger EV--
2019PolarisRanger EV--
2018PolarisRanger EV--
2018PolarisRanger EVLi-Ion
2017PolarisRanger EV--
2017PolarisRanger EVLi-Ion Pursuit Camo
2017PolarisRanger EVLimited Edition
2017PolarisRanger EVPursuit Camo
2016PolarisRanger EV--
2016PolarisRanger EVLi-Ion
2016PolarisRanger EVPursuit Camo
2015PolarisRanger EV--

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Polaris models: 2015-2017 Ranger ETX, 2018-2022 Ranger 500, 2015-2021 Ranger 570 Midsize/Crew (does not fit Full Size & XP), 2022-2023 Ranger HD 570, 2015-2022 Ranger EV.
  • Features a stronger than OEM, 4340 chromoly steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 619 mm, Inboard Spline Count - 22, Outboard Spline Count - 20.
  • Replaces OEM # 1333238, 1333742.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect limited warranty

    Details

    • PO-331
    • PO-331
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 11.5 lbs.
    • W5.0000” x H5.0000” x L28.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
