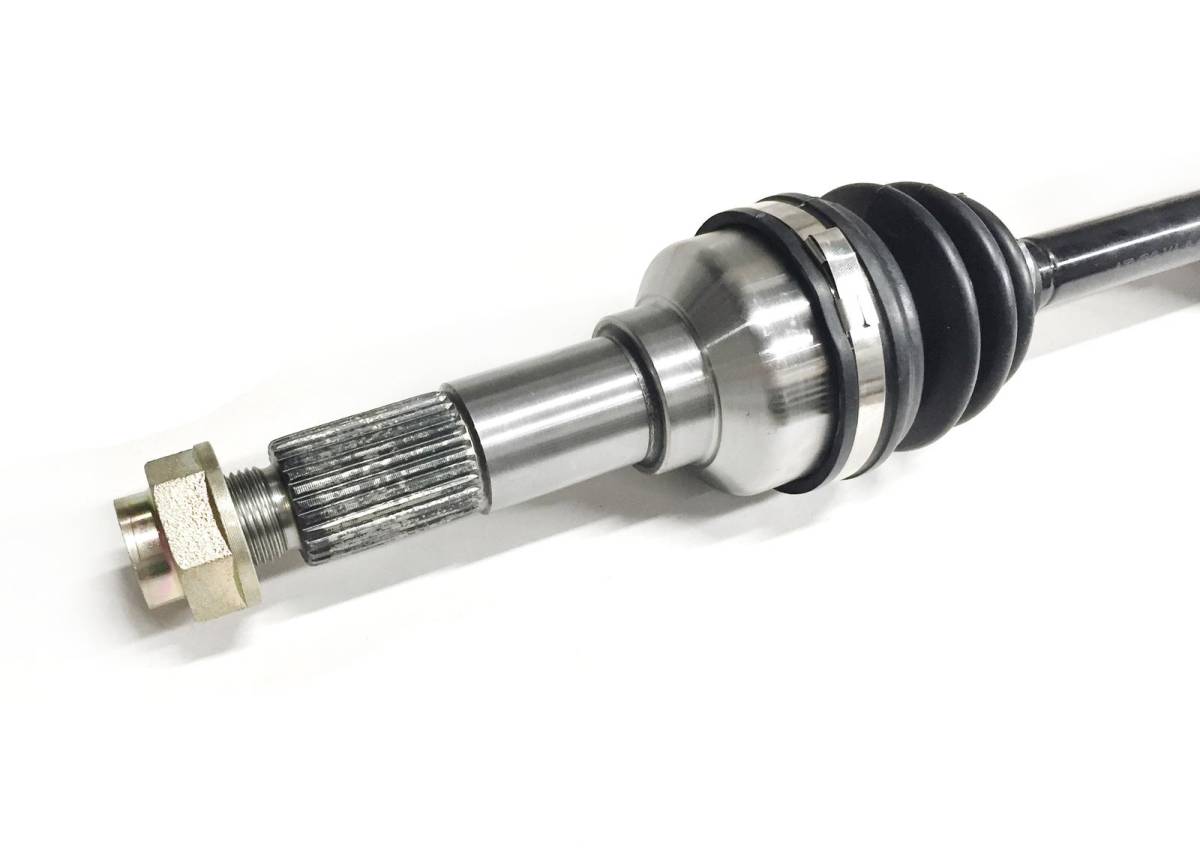

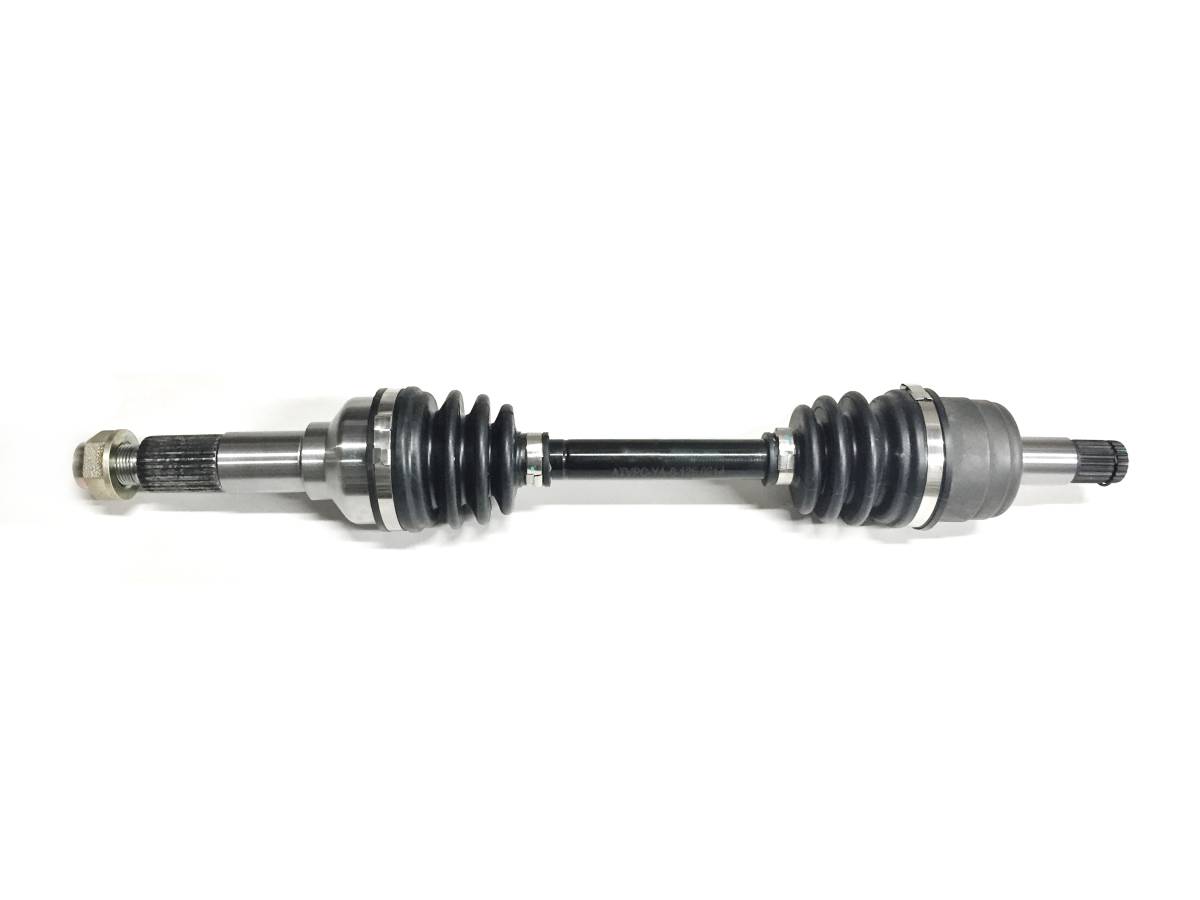

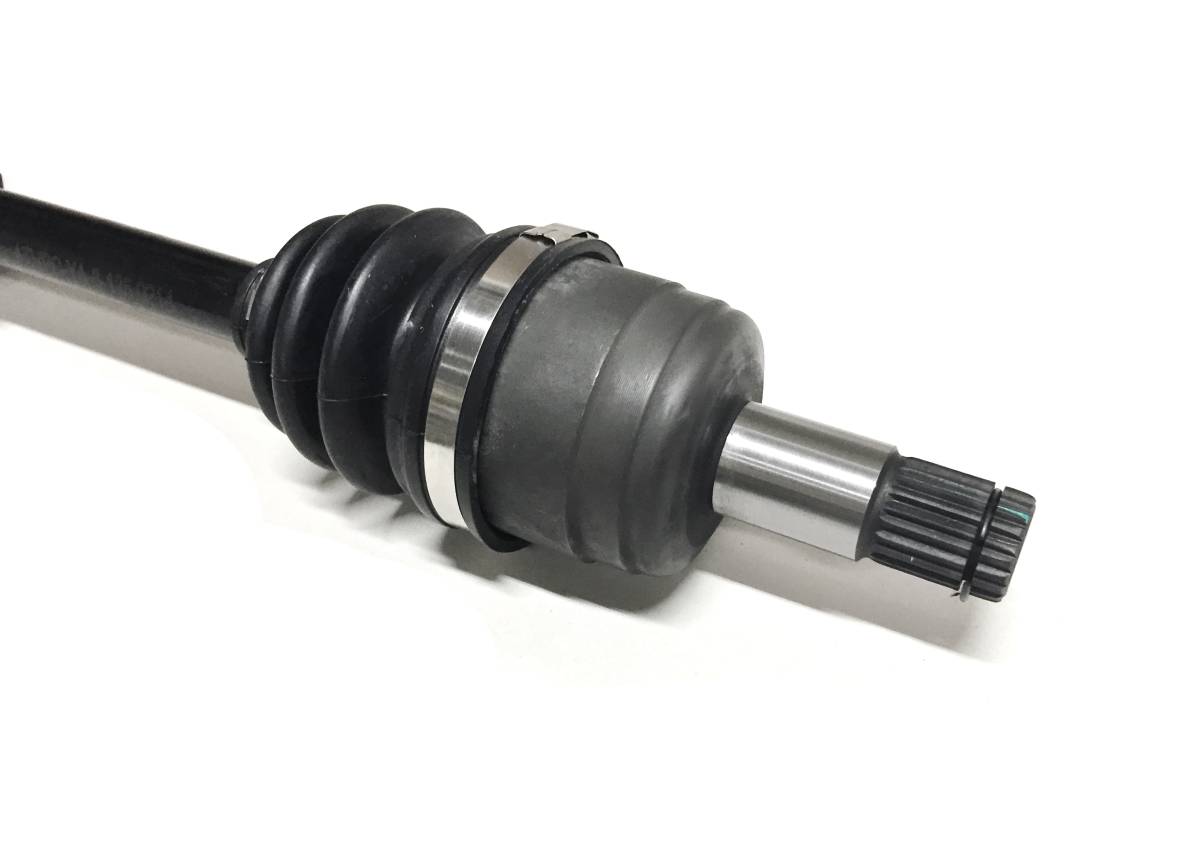

Front CV Axle for Yamaha Big Bear 400 Left & Grizzly 350 450 IRS Right

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
YA-125
This is a new Front CV axle for a Yamaha ATV.

It will fit the following 4x4 applications:

Front, Left ... 2007-2012 Big Bear 400 IRS

Front, Right ... 2007-2011 Grizzly 350 IRS

Front, Right ... 2008-2010/2012-2014 Grizzly 450

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 483 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $64.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left (driver's side) on the 2007-2012 Big Bear 400 & front right (passenger side) on the 2007-2011 Grizzly 350 IRS & 2008-2010/2012-2014 Grizzly 450.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed Length - 483 mm, Inboard Spline Count - 21, Outboard Spline Count - 27.
  • Replaces Yamaha OEM # 4S1-2510F-00-00, 4S1-2510J-00-00, 4S2-2511E-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2007YamahaBig Bear 400YFM400FBH 4x4 Hunter Edition IRS
    2007YamahaBig Bear 400YFM400FBE 4x4 Exploring Edition IRS
    2007YamahaBig Bear 400YFM400FB 4x4 IRS
    2008YamahaBig Bear 400YFM400FB 4x4 IRS
    2009YamahaBig Bear 400YFM400FB 4x4 IRS
    2010YamahaBig Bear 400YFM400FBH 4x4 Hunter Edition IRS
    2010YamahaBig Bear 400YFM400FB 4x4 IRS
    2011YamahaBig Bear 400YFM400FB 4x4 IRS
    2007YamahaGrizzly 450YFM450FGSE 4x4 Special Edition
    2007YamahaGrizzly 450YFM450FGOH 4x4 Outdoorsman Edition
    2007YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2007YamahaGrizzly 450YFM450FG 4x4
    2008YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2008YamahaGrizzly 450YFM450FG 4x4
    2009YamahaGrizzly 450YFM450FGI 4x4 IRS
    2009YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2010YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2010YamahaGrizzly 450YFM450FG 4x4
    2012YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2012YamahaGrizzly 450YFM450FGP 4x4 EPS
    2012YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2012YamahaGrizzly 450YFM450FG 4x4
    2013YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2013YamahaGrizzly 450YFM450FGP 4x4 EPS
    2013YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2013YamahaGrizzly 450YFM450FG 4x4
    2014YamahaGrizzly 450YFM450RSE 4x4 Special Edition
    2014YamahaGrizzly 450YFM450PHH 4x4 Hunter Edition EPS
    2014YamahaGrizzly 450YFM450P 4x4 EPS
    2014YamahaGrizzly 450YFM450DAH 4x4 Hunter Edition
    2014YamahaGrizzly 450YFM450D 4x4
    2007YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2007YamahaGrizzly 350YFM350FGI 4x4 IRS
    2008YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2008YamahaGrizzly 350YFM350FGI 4x4 IRS
    2009YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2009YamahaGrizzly 350YFM350FGI 4x4 IRS
    2010YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2010YamahaGrizzly 350YFM350FGI 4x4 IRS
    2011YamahaGrizzly 350YFM350FGIH 4x4 Hunter Edition IRS
    2011YamahaGrizzly 350YFM350FGI 4x4 IRS

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 8.2 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
