Rear Inner CV Joint Kit for Yamaha Grizzly 450 550 700 & Kodiak 450 4x4

Placement on halfshaft: Inner - Rear,Left,Right

IJ269

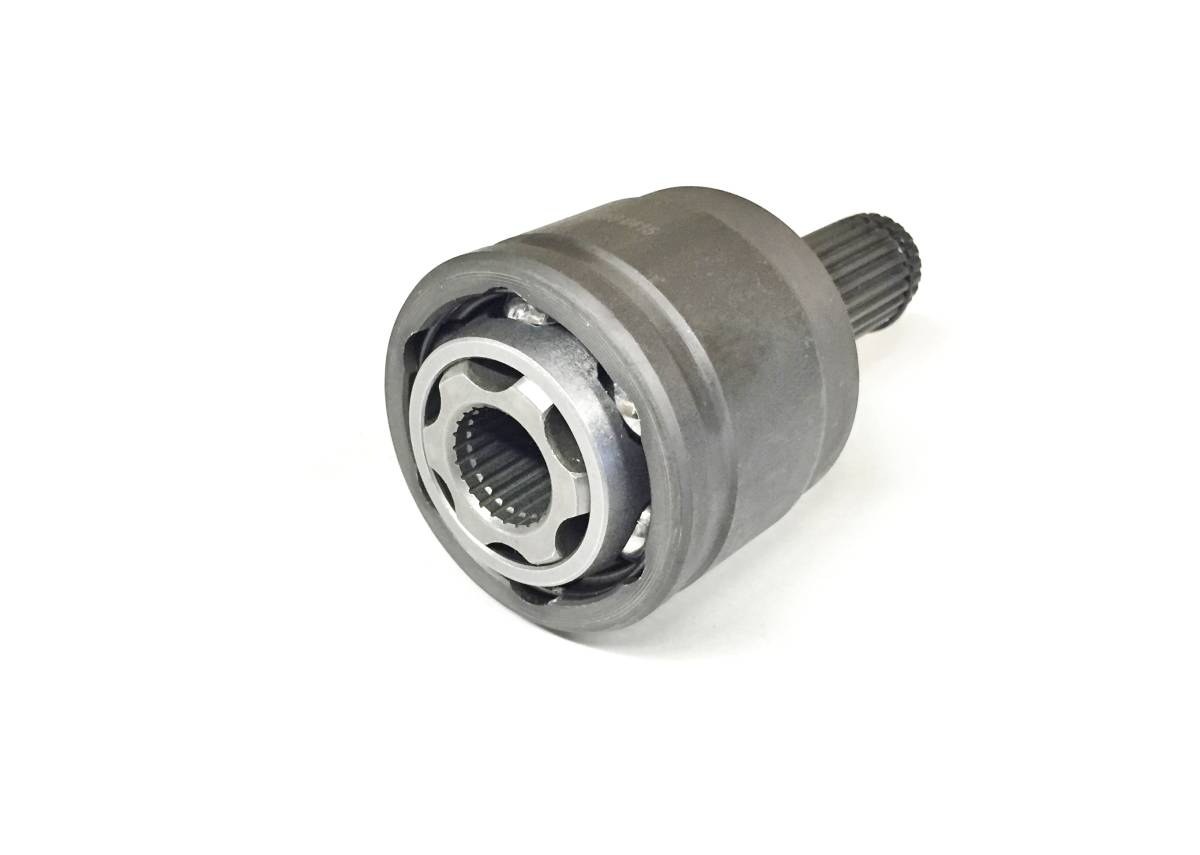

This is a new Rear, Inner CV joint kit for a Yamaha ATV.

It fits the following 4x4 models:

2011-2014 Grizzly 450, 2009-2014 Grizzly 550, 2007-2015 Grizzly 700, 2018-2022 Kodiak 450

Rear Left or Right, Inboard Position

*Not intended for use in lifted vehicles

Product features:

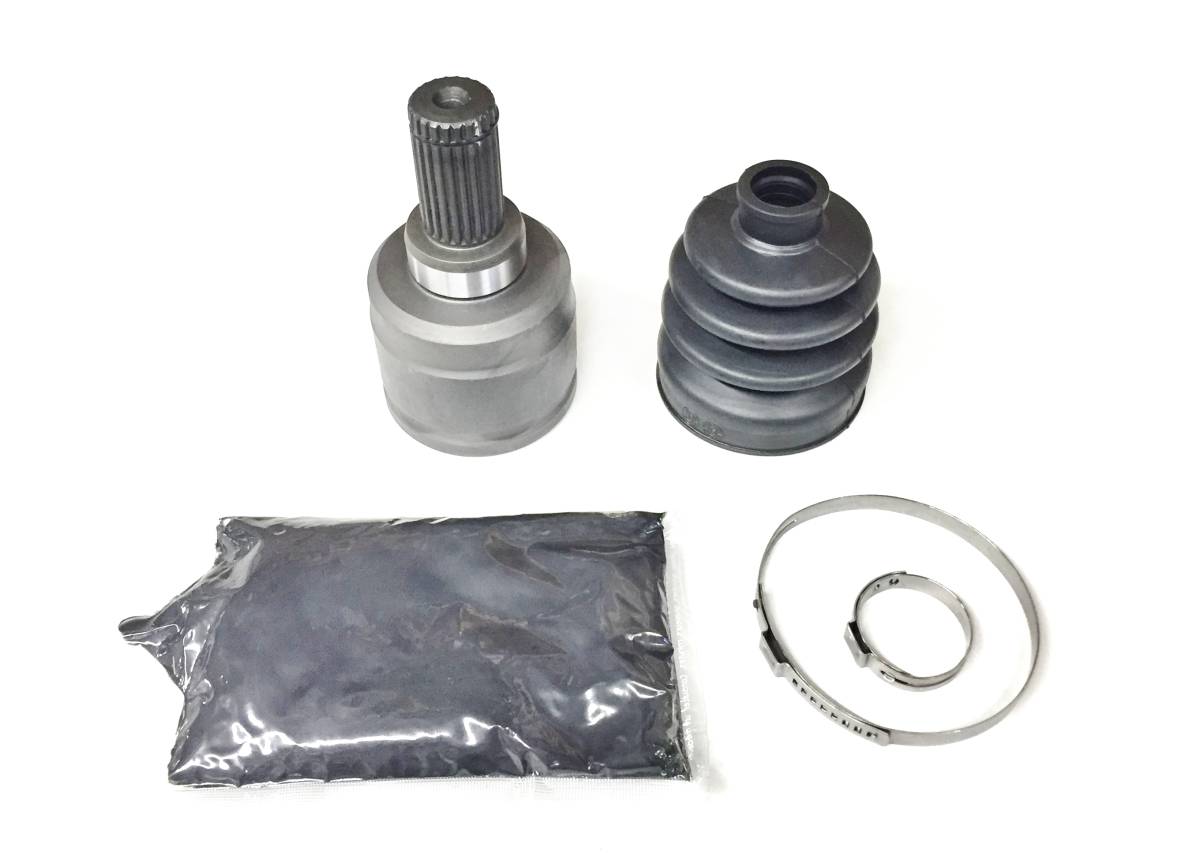

  • 1 CV joint - fully assembled with race, cage, and ball bearings
  • 1 neoprene rubber CV boot & grease packet
  • 2 boot clamps
  • Stub Height: 2.25"
  • Number of CV housing splines: 23
  • Inner race spline count: 24
  • Housing diameter: 2.40"
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $22.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits the REAR LEFT, INNER (differential side) position on the following Yamaha ATVs: 2011-2014 Grizzly 450, 2009-2014 Grizzly 550, 2007-2015 Grizzly 700, 2018-2022 Kodiak 450.
  • Includes 1 CV joint (fully assembled with race, cage, and ball bearings), 1 neoprene rubber CV boot, 1 grease packet, 2 boot clamps.
  • Stub Height: 2.25", Number of CV housing splines: 23, Inner race spline count: 24, Housing diameter: 2.40".
  • Replaces Yamaha OEM # 1CT-2530V-00-00, 1CT-2530V-01-00, 28P-2530V-00-00, 28P-2530V-01-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV Joint, 1 CV Boot, 1 Grease Pack, 2 Clamps
  • Application List

    YearMakeModelSubmodelNotes
    2014YamahaGrizzly 450YFM450D 4x4
    2014YamahaGrizzly 450YFM450DAH 4x4 Hunter Edition
    2014YamahaGrizzly 450YFM450P 4x4 EPS
    2014YamahaGrizzly 450YFM450PHH 4x4 Hunter Edition EPS
    2014YamahaGrizzly 450YFM450RSE 4x4 Special Edition
    2013YamahaGrizzly 450YFM450FG 4x4
    2013YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2013YamahaGrizzly 450YFM450FGP 4x4 EPS
    2013YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2012YamahaGrizzly 450YFM450FG 4x4
    2012YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2012YamahaGrizzly 450YFM450FGP 4x4 EPS
    2012YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2011YamahaGrizzly 450YFM450FG 4x4
    2011YamahaGrizzly 450YFM450FGH 4x4 Hunter Edition
    2011YamahaGrizzly 450YFM450FGP 4x4 EPS
    2011YamahaGrizzly 450YFM450FGPH 4x4 Hunter Edition EPS
    2007YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI
    2007YamahaGrizzly 700YFM700FGPOH 4x4 Outdoorsman Edition FI
    2007YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2007YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2007YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2007YamahaGrizzly 700YFM700FGP 4x4 FI
    2007YamahaGrizzly 700YFM700FG 4x4 Exploring Edition FI
    2008YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2008YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2008YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2008YamahaGrizzly 700YFM700FG 4x4 FI
    2009YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI EPS
    2009YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2009YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 700YFM700FG 4x4 FI
    2010YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2010YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2010YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 700YFM700FG 4x4 FI
    2011YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2011YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2011YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 700YFM700FG 4x4 FI
    2012YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2012YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2012YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 700YFM700FG 4x4 FI
    2013YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2013YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2013YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 700YFM700FG 4x4 FI
    2014YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2014YamahaGrizzly 700YFM700PHH 4x4 Hunter Edition FI EPS
    2014YamahaGrizzly 700YFM700P 4x4 FI EPS
    2014YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
    2014YamahaGrizzly 700YFM700D 4x4 FI
    2015YamahaGrizzly 700YFM700PHFH 4x4 Hunter Edition FI EPS
    2015YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2015YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2015YamahaGrizzly 700YFM700DHH 4x4 Hunter Edition FI
    2015YamahaGrizzly 700YFM700D 4x4 FI
    2009YamahaGrizzly 550YFM550FGPSE 4x4 Special Edition FI EPS
    2009YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2009YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 550YFM550FG 4x4 FI
    2010YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2010YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 550YFM550FG 4x4 FI
    2011YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2011YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 550YFM550FG 4x4 FI
    2012YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2012YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 550YFM550FG 4x4 FI
    2013YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2013YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 550YFM550FG 4x4 FI
    2014YamahaGrizzly 550YFM550PHH 4x4 Hunter Edition FI EPS
    2014YamahaGrizzly 550YFM550P 4x4 FI EPS
    2014YamahaGrizzly 550YFM550DHH 4x4 Hunter Edition FI
    2014YamahaGrizzly 550YFM550D 4x4 FI
    2020YamahaKodiak 450YFM450 4x4 Auto
    2020YamahaKodiak 450YFM450 4x4 Auto EPS
    2020YamahaKodiak 450YFM450 4x4 Auto EPS SE
    2019YamahaKodiak 450YFM450 4x4 Auto
    2019YamahaKodiak 450YFM450 4x4 Auto EPS
    2019YamahaKodiak 450YFM450 4x4 Auto EPS SE
    2018YamahaKodiak 450YFM450 4x4 Auto
    2018YamahaKodiak 450YFM450 4x4 Auto EPS

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 2.9 lbs.
    • W5.0000” x H5.0000” x L10.0000”

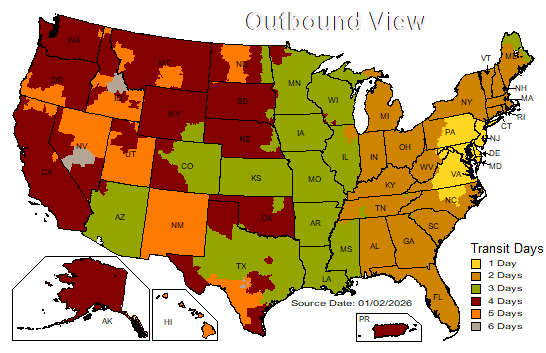

    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
