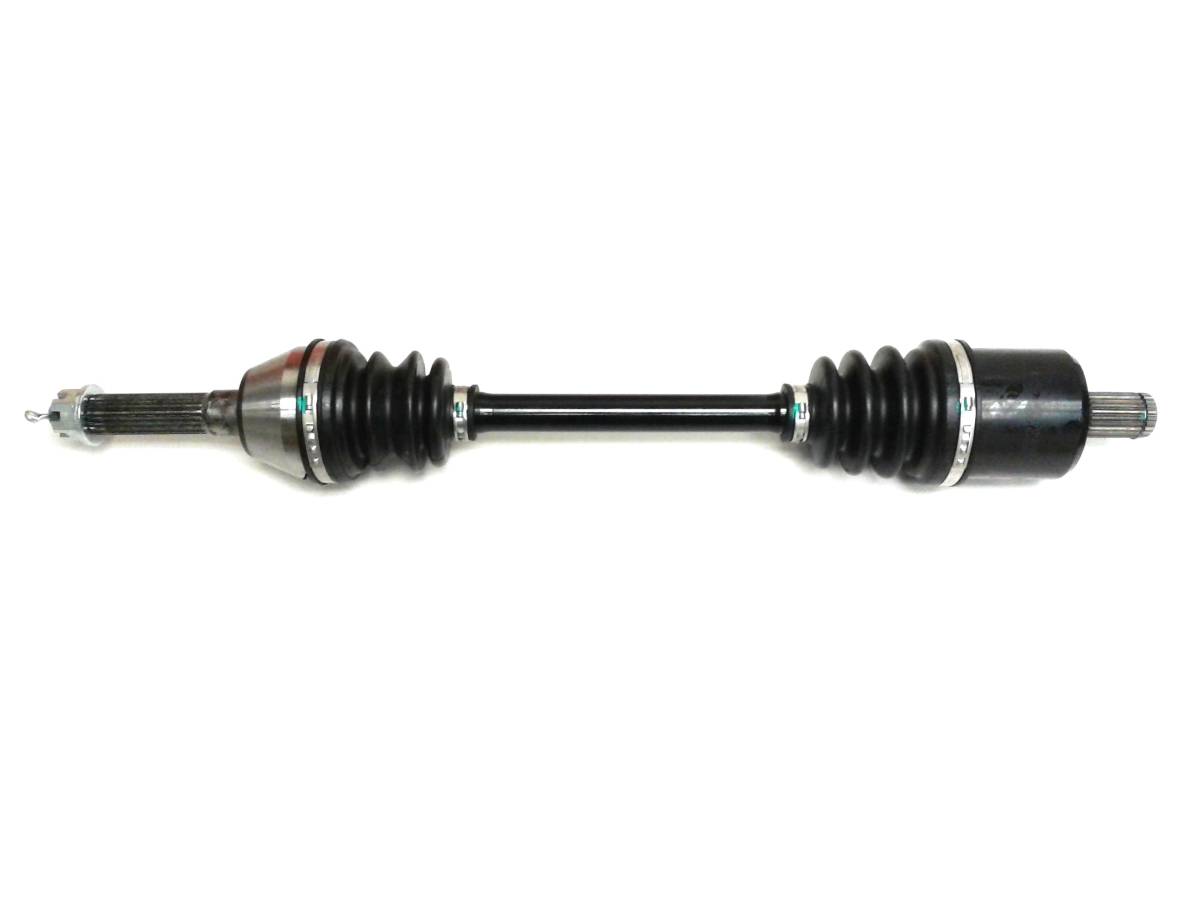

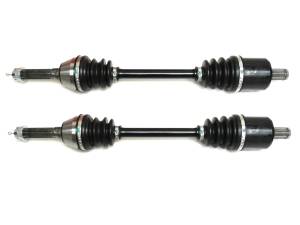

Front CV Axle for Polaris ACE 325 500 570 & 900, 1333246

Location on vehicle: Front,Left,Right

PO-379
This is a new Front CV axle for a Polaris ATV.

This axle will fit the following 4x4 applications:

2015-2016 ... ACE 325

2017-2019 ... ACE 500

2015-2018 ... ACE 570

2016 ... ACE 900

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Joints fitted with neoprene CV boots for added wear & puncture resistance

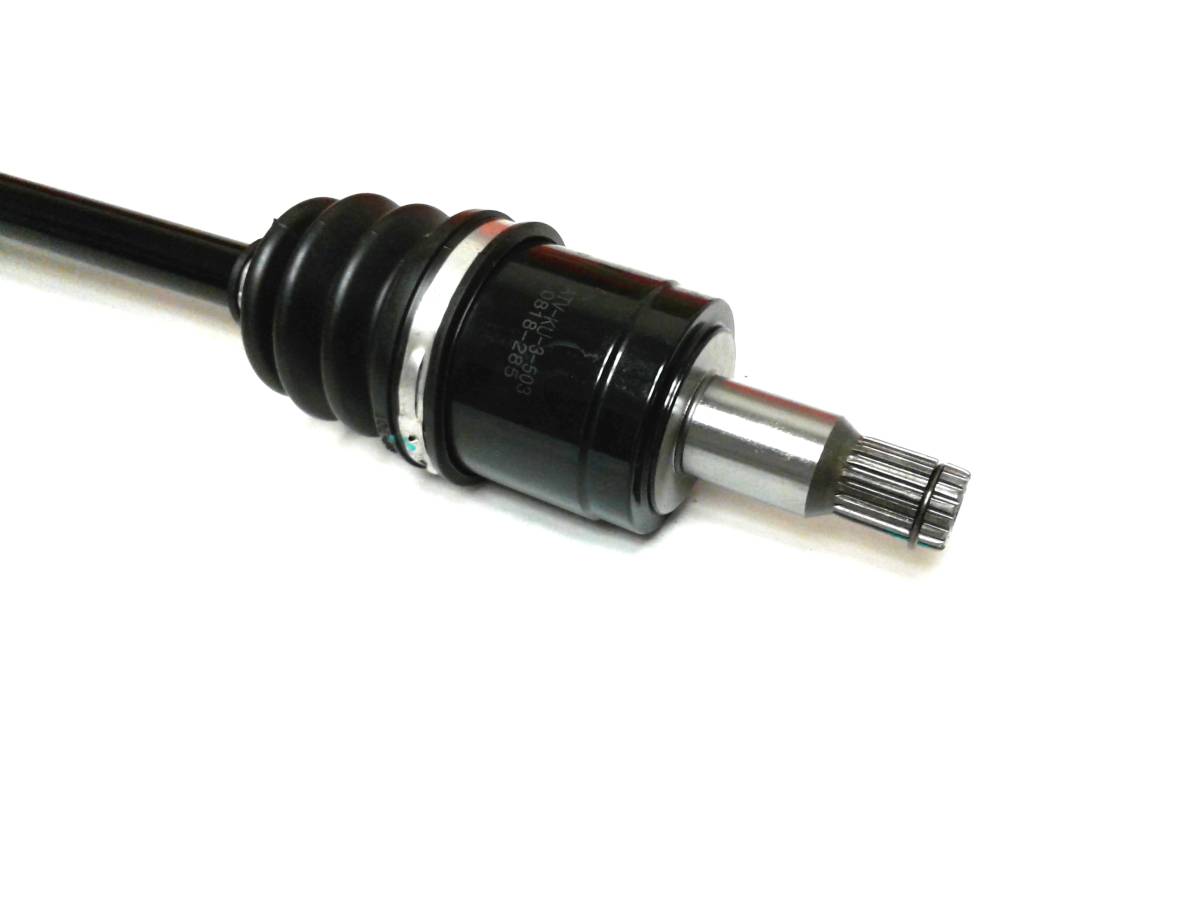

  • Inboard CV joint spline count: 22

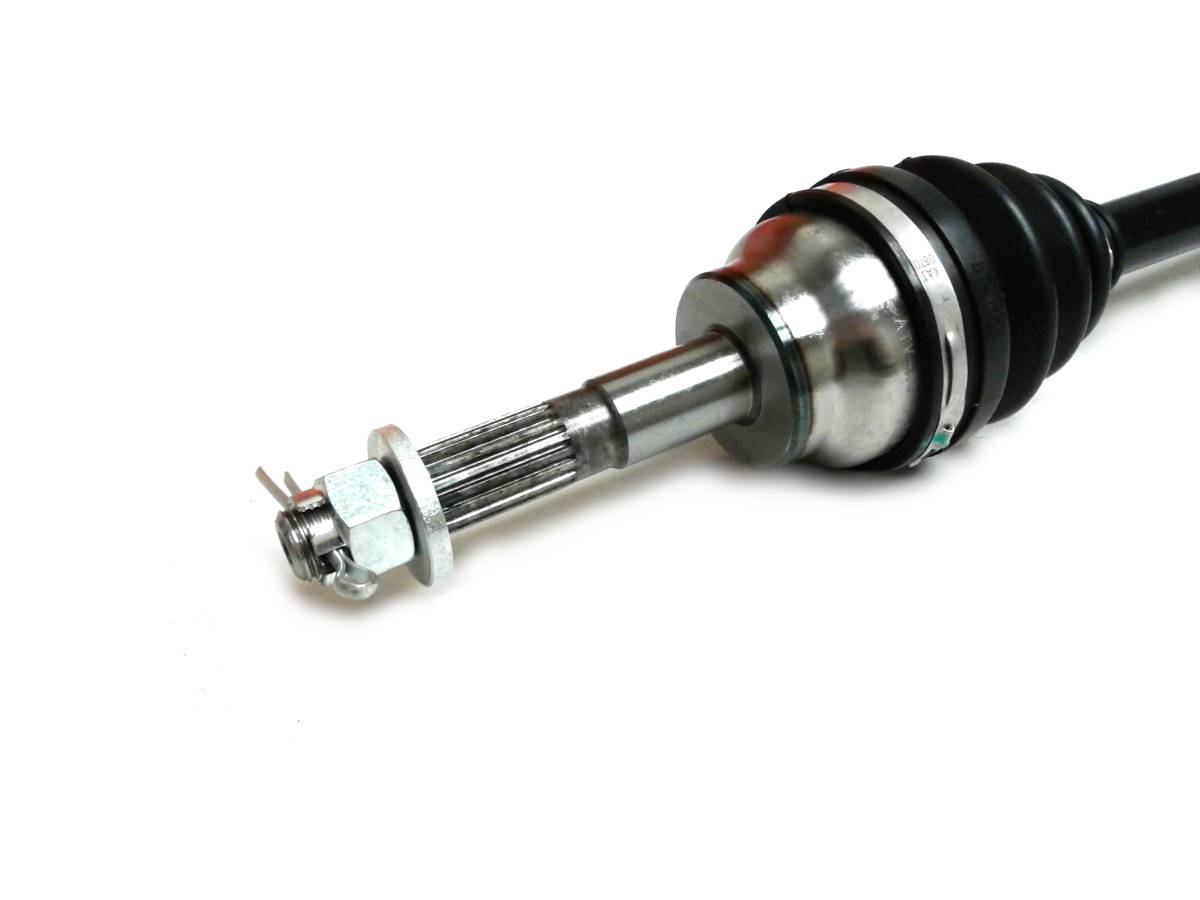

  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 549 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $74.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2015-2016 ACE 325, 2017-2019 ACE 500, 2015-2018 ACE 570, & 2016 ACE 900.
  • Axle features a stronger than OEM chromoly steel shaft fitted with neoprene boots filled with moly based grease for added wear and puncture resistance.
  • Compressed Length - 549 mm, Inboard Spline Count - 22, Outboard Spline Count - 20.
  • Replaces OE # 1333246.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2016PolarisACE--325 cc models
    2019PolarisACE 500--
    2018PolarisACE 500--
    2019PolarisACE 570EPSdoes not fit submodel A19DAE57A4 (OEM #1333675)
    2018PolarisACE 570EPSdoes not fit submodel A18DAE57B2 (OEM #1333675)
    2017PolarisACE 570--does NOT fit SP submodels
    2016PolarisACE 570--
    2016PolarisACE 570SP
    2016PolarisACE 900SP
    2015PolarisSportsman ACE--325 cc models

    Details

    Shipping Information

    • Item Requires Shipping
    • 9.8 lbs.
    • W4.0000” x H4.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
