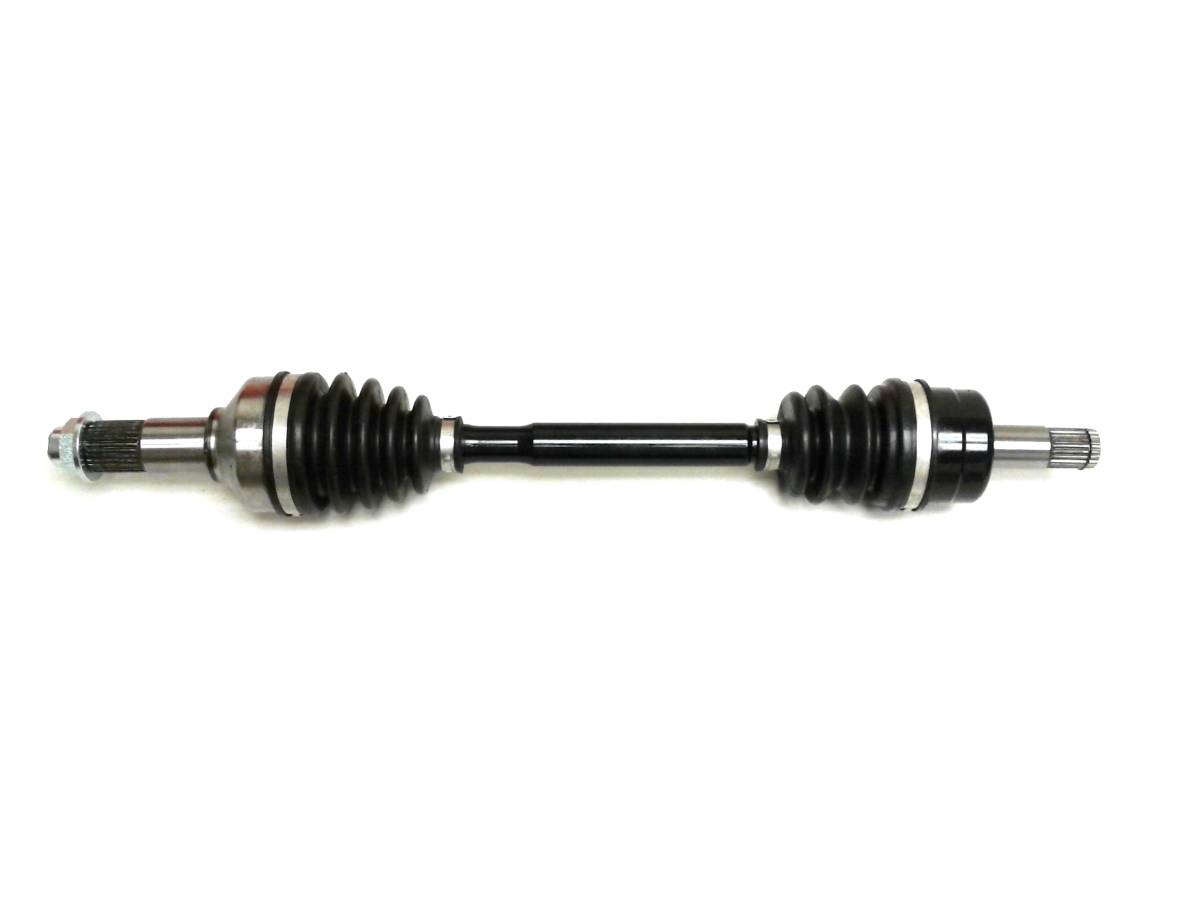

Front CV Axle for Yamaha Grizzly 700 4x4 2016-2019 ATV

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
YA-356
This is a new Front CV axle for a Yamaha ATV.

It will fit the following 4x4 models:

2016-2019 ... Grizzly 700 / 700 EPS

Front, Left or Right side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 536 mm
  • Replaces OE # 2UD-2518F-00-00, 2UD-2510J-00-00, 2UD-2518E-00-00, 2UD-2510F-00-00
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $69.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT on the 2016-2019 Yamaha Grizzly 700 / 700 EPS 4x4 ATV.
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed overall axle length: 536 mm, Inboard CV joint spline count: 21, Outboard CV joint spline count: 27.
  • Replaces OEM # 2UD-2518F-00-00, 2UD-2510J-00-00, 2UD-2518E-00-00, 2UD-2510F-00-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Application List

    YearMakeModelSubmodelNotes
    2019YamahaGrizzly 700YFM700P 4x4 FI EPS
    2019YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2018YamahaGrizzly 700YFM700P 4x4 FI EPS
    2018YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
    2018YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2017YamahaGrizzly 700YFM700P 4x4 FI EPS
    2017YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
    2017YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS
    2016YamahaGrizzly 700YFM700D 4x4 FI
    2016YamahaGrizzly 700YFM700P 4x4 FI EPS
    2016YamahaGrizzly 700YFM700PLE 4x4 Limited Edition FI EPS
    2016YamahaGrizzly 700YFM700PSE 4x4 Special Edition FI EPS

    Details

    Categories

    Shipping Information

    • Item Requires Shipping
    • 9.0 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
