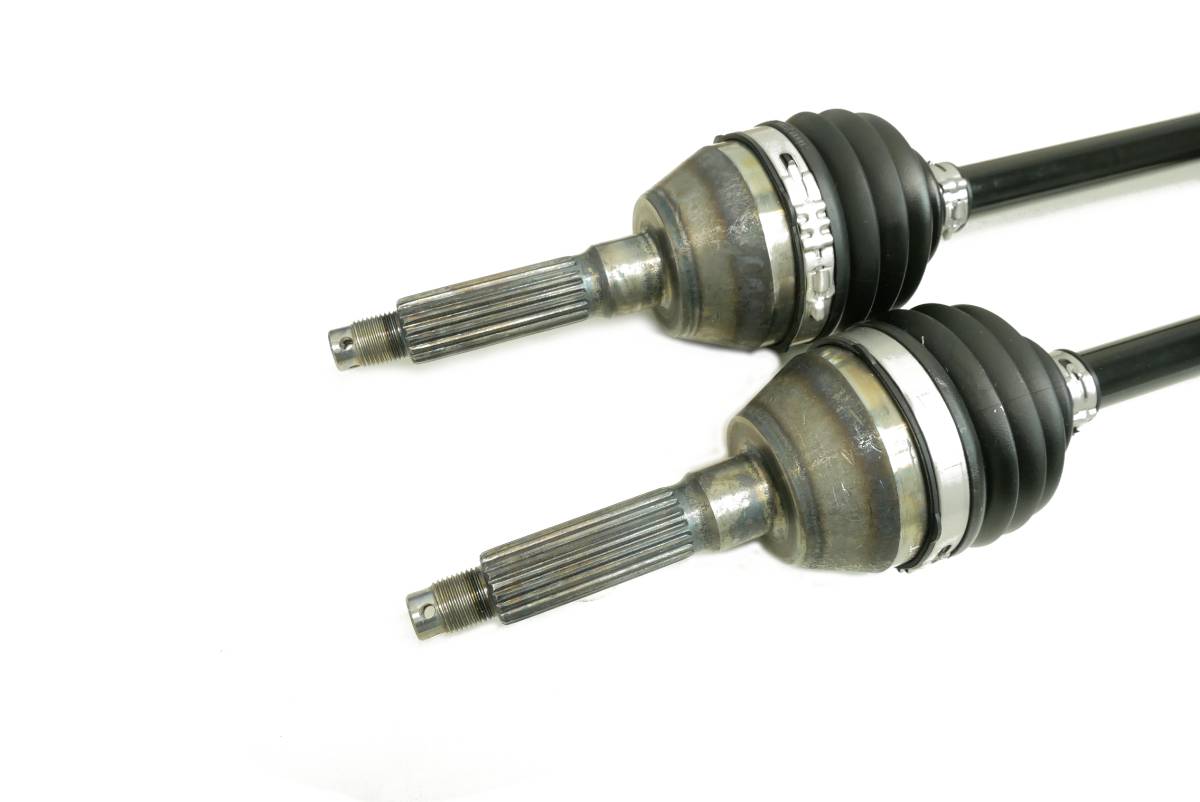

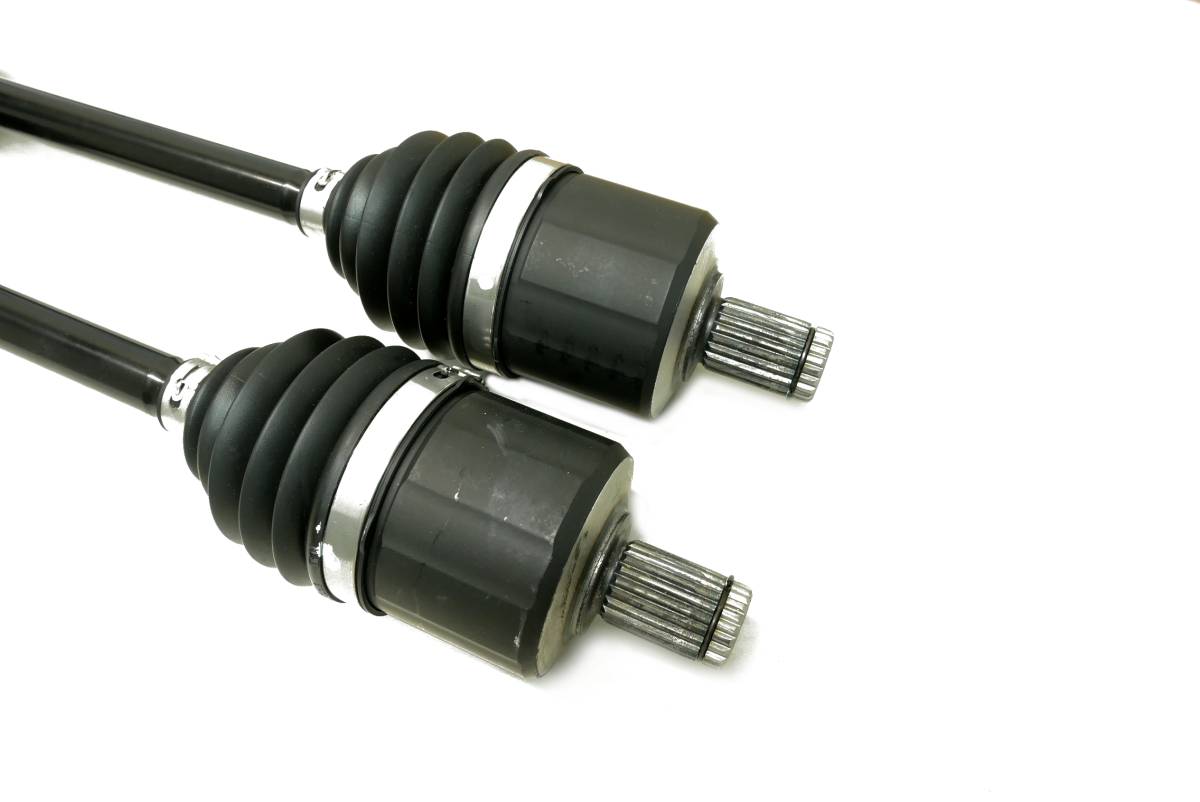

Front CV Axle Pair with Bearings for Polaris Sportsman 450 500 700 800, 1332471

Location on vehicle: Front,Left,Right

PO-326/PO-326/WB-1424/WB-1424

These CV axles & bearings will fit front left and right on the following Polaris 4x4s.

2011-2012 ... Sportsman 400

2007 ... Sportsman 450

2007-2012 ... Sportsman 500 4x4

2006-2009 ... Sportsman X2 500

2007-2008 ... Sportsman 700 / X2 700

2007-2012 ... Sportsman 800 4x4 & 6x6
(includes X2 models)

Axle Specs:

Compressed Length - 539.5 mm (both)

Inboard Spline Count - 22 (both)

Outboard Spline Count - 20 (both)

Replaces OE # 1332471, 1332501, 1332881, 3514342, 3514634

Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $129.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2011-2012 Sportsman 400, 2007 Sportsman 450, 2007-2012 Sportsman 500 4x4, 2006-2009 Sportsman X2 500, 2007-2008 Sportsman 700 / X2 700, 2007-2012 Sportsman 800 4x4 & 6x6.
  • Fitted with neoprene CV boots for added wear & puncture resistance. Greased with a moly based grease to provide superior joint lubrication.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Replaces Polaris OEM # 1332471, 1332501, 1332881. Inner Splines: 22 (both), Outer Splines: 20 (both), Compressed length: 539.5 mm (both).
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

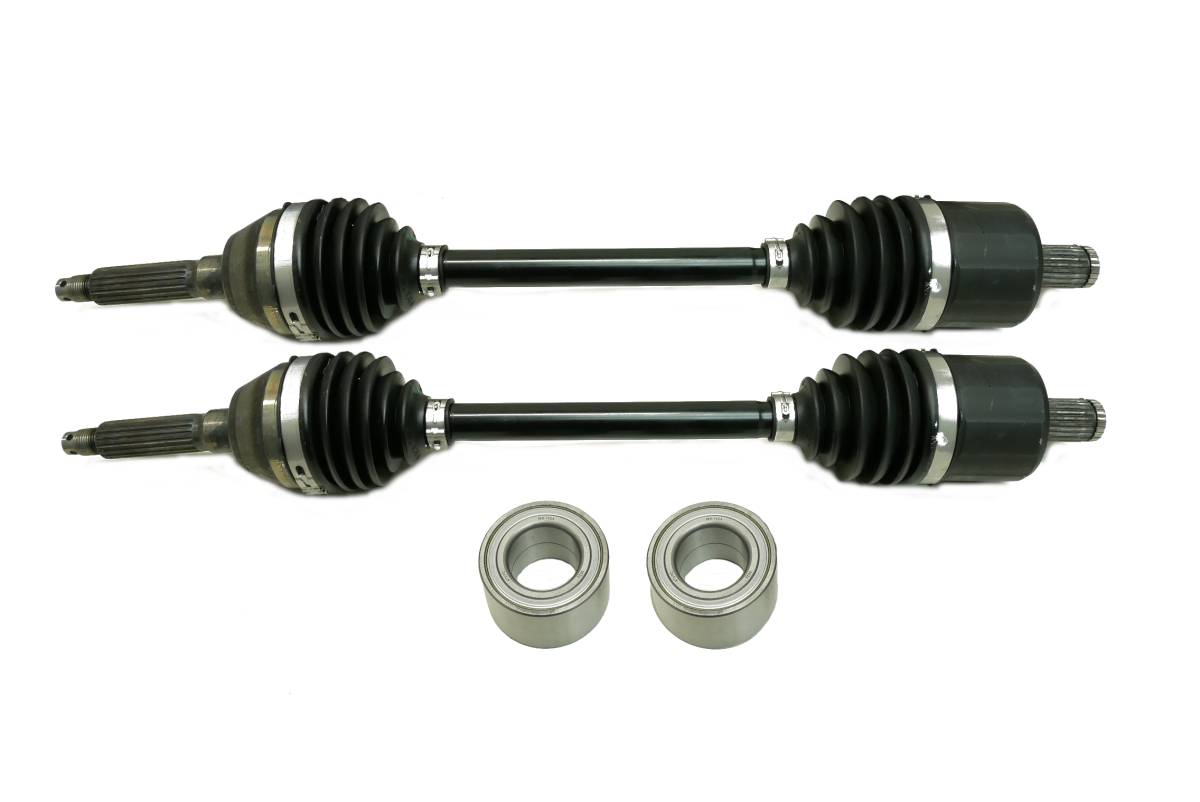

  • 2 CV Axles & 2 Wheel Bearings
  • Application List

    YearMakeModelSubmodelNotes
    2007PolarisSportsman X2 800EFI
    2007PolarisSportsman X2 800Deluxe EFI
    2008PolarisSportsman X2 800EFI
    2009PolarisSportsman X2 800EFI
    2008PolarisSportsman X2 700EFI
    2006PolarisSportsman X2 500EFI
    2007PolarisSportsman X2 500EFI
    2007PolarisSportsman X2 500Deluxe EFI
    2008PolarisSportsman X2 500EFI
    2009PolarisSportsman X2 500EFI
    2007PolarisSportsman 800EFI
    2007PolarisSportsman 800Deluxe EFI
    2007PolarisSportsman 800--
    2008PolarisSportsman 800Touring EFI
    2008PolarisSportsman 800EFI Military HO
    2008PolarisSportsman 800EFI
    2009PolarisSportsman 800Touring EFI
    2009PolarisSportsman 800HO EFI
    2009PolarisSportsman 800EFI
    2009PolarisSportsman 8006x6 EFI
    2010PolarisSportsman 800EFI HO
    2010PolarisSportsman 8006x6 EFI
    2011PolarisSportsman 800EFI
    2011PolarisSportsman 8006x6 EFI
    2012PolarisSportsman 800Forest
    2012PolarisSportsman 800EFI
    2012PolarisSportsman 8006x6 Forest
    2012PolarisSportsman 8006x6 EFI
    2007PolarisSportsman 700MV
    2007PolarisSportsman 700EFI
    2007PolarisSportsman 5004x4 NBU HO EFI
    2007PolarisSportsman 5004x4 HO EFI
    2007PolarisSportsman 5004x4 Deluxe HO EFI
    2008PolarisSportsman 500Touring EFI
    2008PolarisSportsman 5004x4 HO EFI
    2008PolarisSportsman 5004x4 HO
    2009PolarisSportsman 500Touring EFI
    2009PolarisSportsman 5004x4 HO EFI
    2009PolarisSportsman 5004x4 HO
    2010PolarisSportsman 500Touring HO
    2010PolarisSportsman 500Touring EFI
    2010PolarisSportsman 5004x4 HO
    2011PolarisSportsman 500Touring HO
    2011PolarisSportsman 500Forest Tractor
    2011PolarisSportsman 500Forest
    2011PolarisSportsman 5004x4 HO
    2012PolarisSportsman 500Touring HO
    2012PolarisSportsman 500LE HO
    2012PolarisSportsman 500Forest Tractor
    2012PolarisSportsman 500Forest
    2012PolarisSportsman 5004x4 Pursuit HO
    2012PolarisSportsman 5004x4 HO
    2007PolarisSportsman 4504X4
    2011PolarisSportsman 4004x4 HO
    2012PolarisSportsman 4004x4 HO

    Details

    • PO-326/PO-326/WB-1424/WB-1424
    • PO-326/PO-326/WB-1424/WB-1424
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 21.3 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
