Front CV Axle Pair for Arctic Cat 300 1998-2001 & 500 2001 4x4 ATV

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review

SKU: AC-118/AC-218

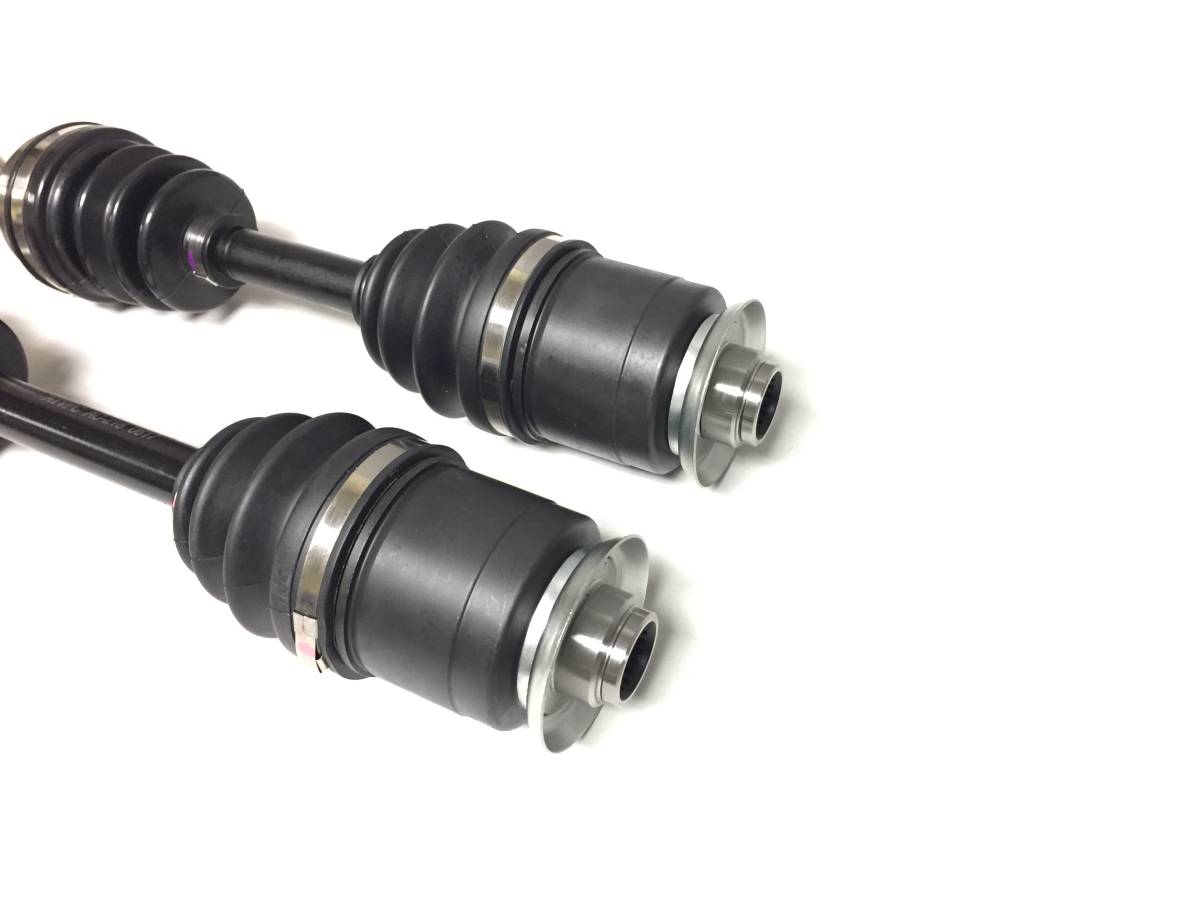

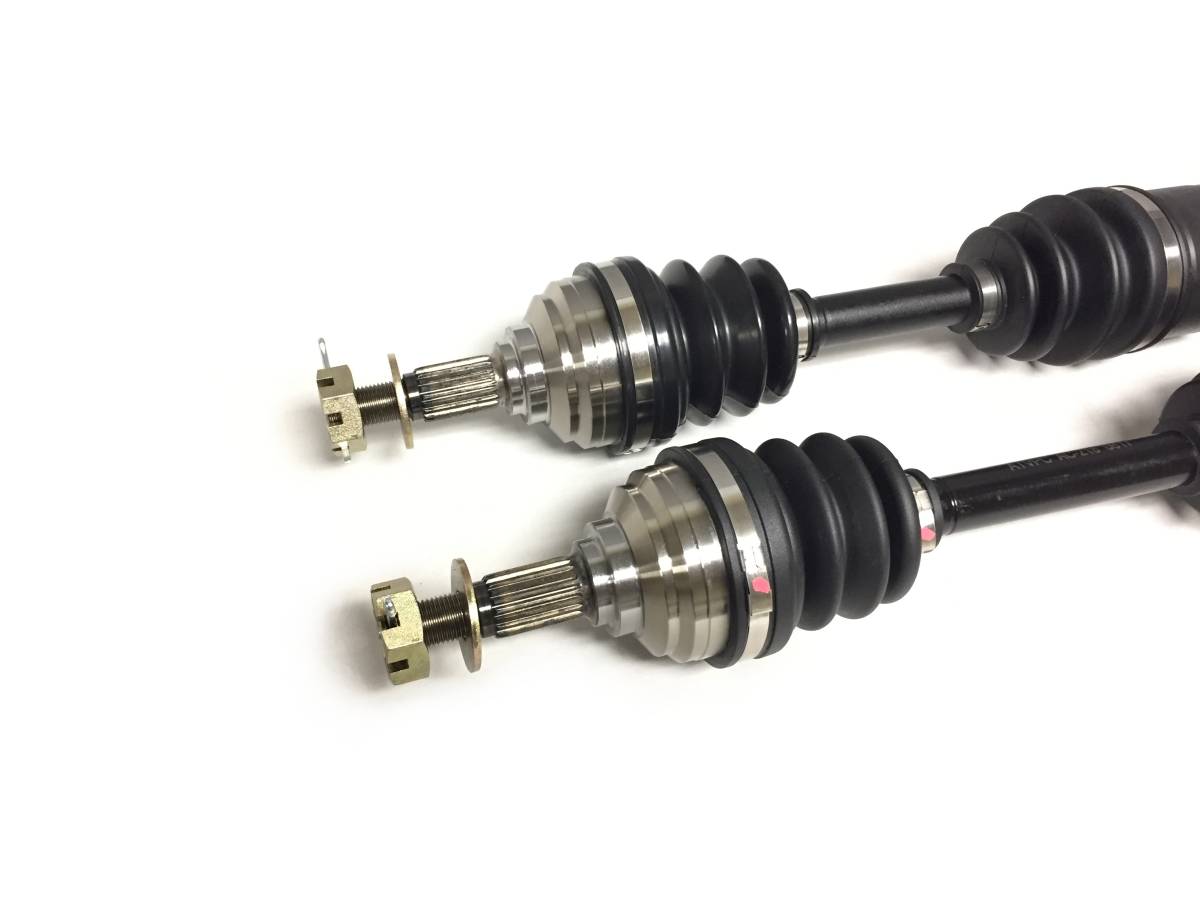

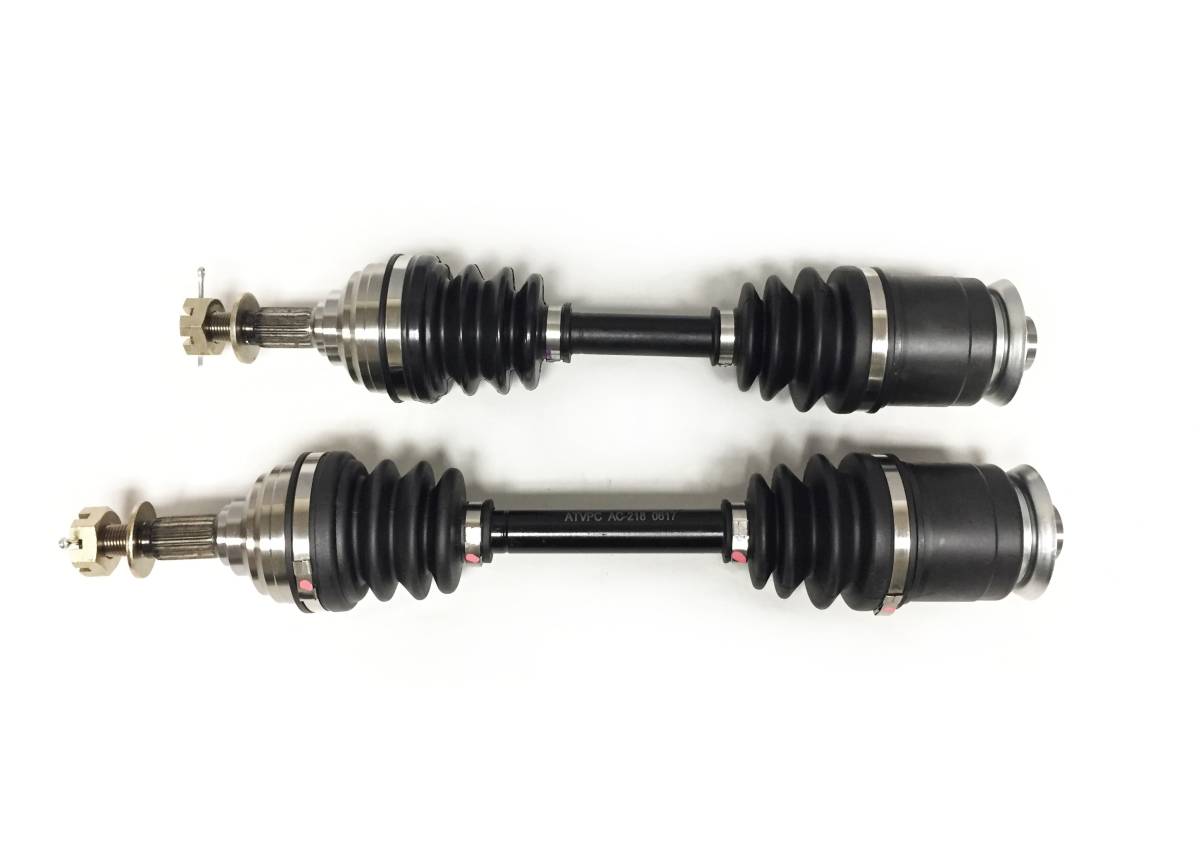

This is a pair of new Front CV axles for a Arctic Cat ATV.

They fit the following 4x4 models:

1998-2001 ... 300

2001 ... 500

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

Stronger than OEM, chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear & puncture resistance
Inboard CV joint spline count: 20 (both)
Outboard CV joint spline count: 21 (both)
Compressed overall axle length: Left- 417 mm, Right- 456 mm

Shipping: Free Shipping - Same Day If Ordered Before 3 EST

Pricing: $124.99

Application List
Product Notes
Warranty
Details
Shipping
Reviews

Application List

Year	Make	Model	Submodel
2001	Arctic Cat	300	4X4
2000	Arctic Cat	300	4X4
1999	Arctic Cat	300	4X4
1998	Arctic Cat	300	4X4
2001	Arctic Cat	500	4X4

Product Notes

Fits front left & right on the 1998-2001 300 4x4 & 2001 500 4x4.

Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.

Compressed overall axle length: Left- 417 mm, Right- 456 mm, Inboard CV joint spline count: 20 (both), Outboard CV joint spline count: 21 (both).

Replaces OE # 0402-249 1502-441, 0402-179 1502-440.

Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.
