Front CV Axle Pair for Arctic Cat 400 500 650 4x4 2005 ATV

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-110/AC-210

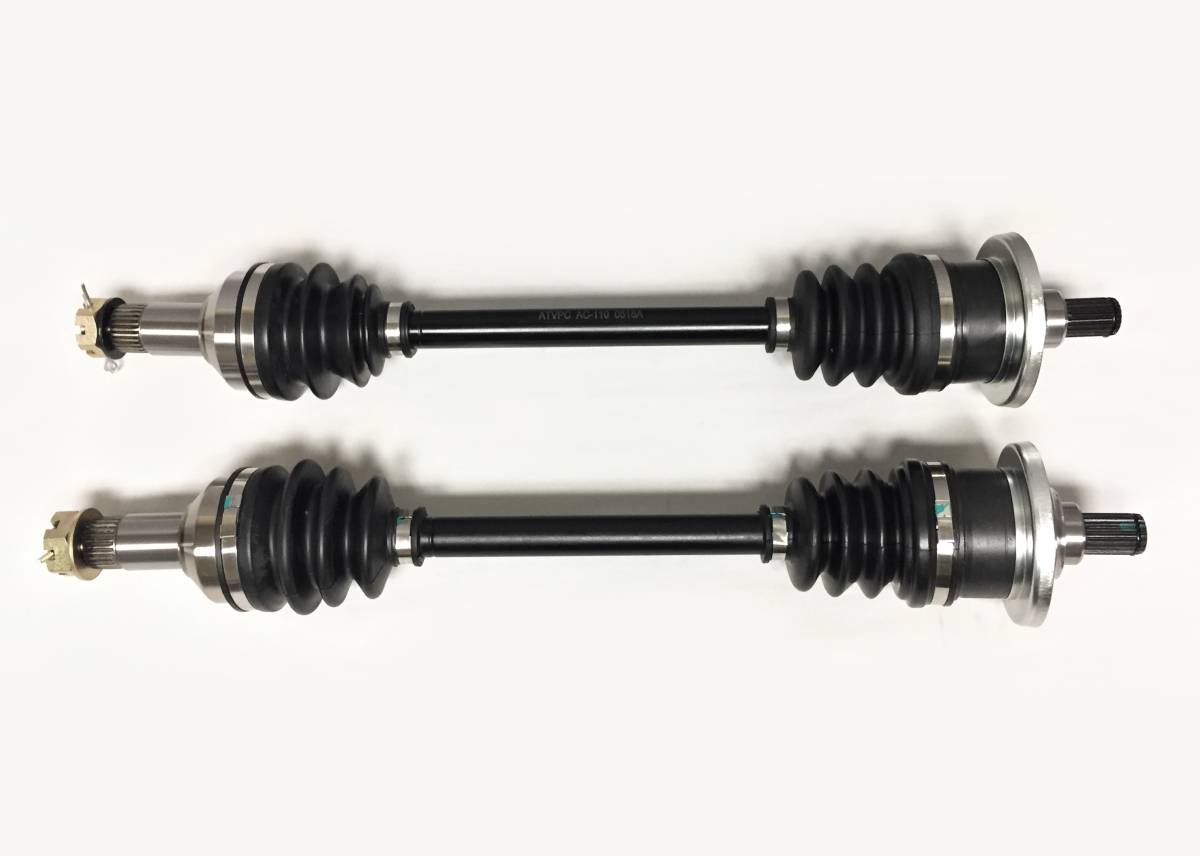

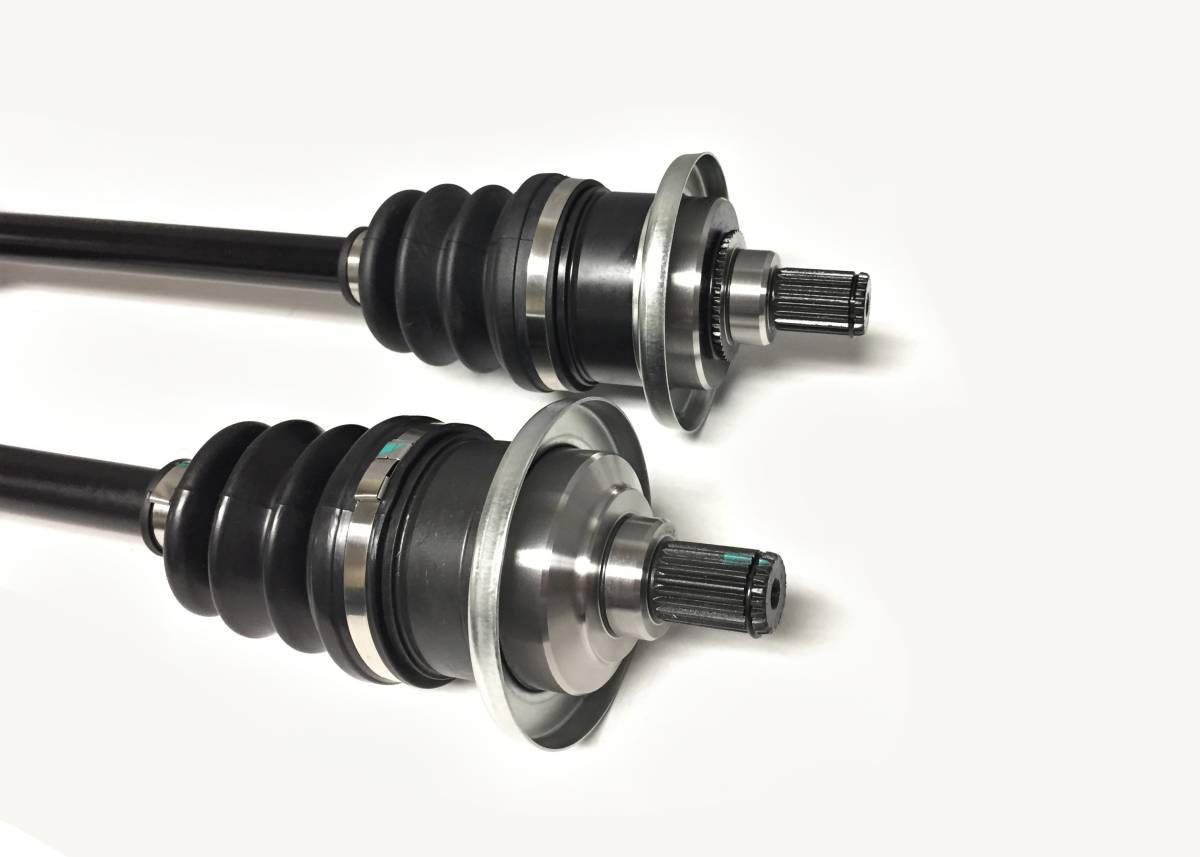

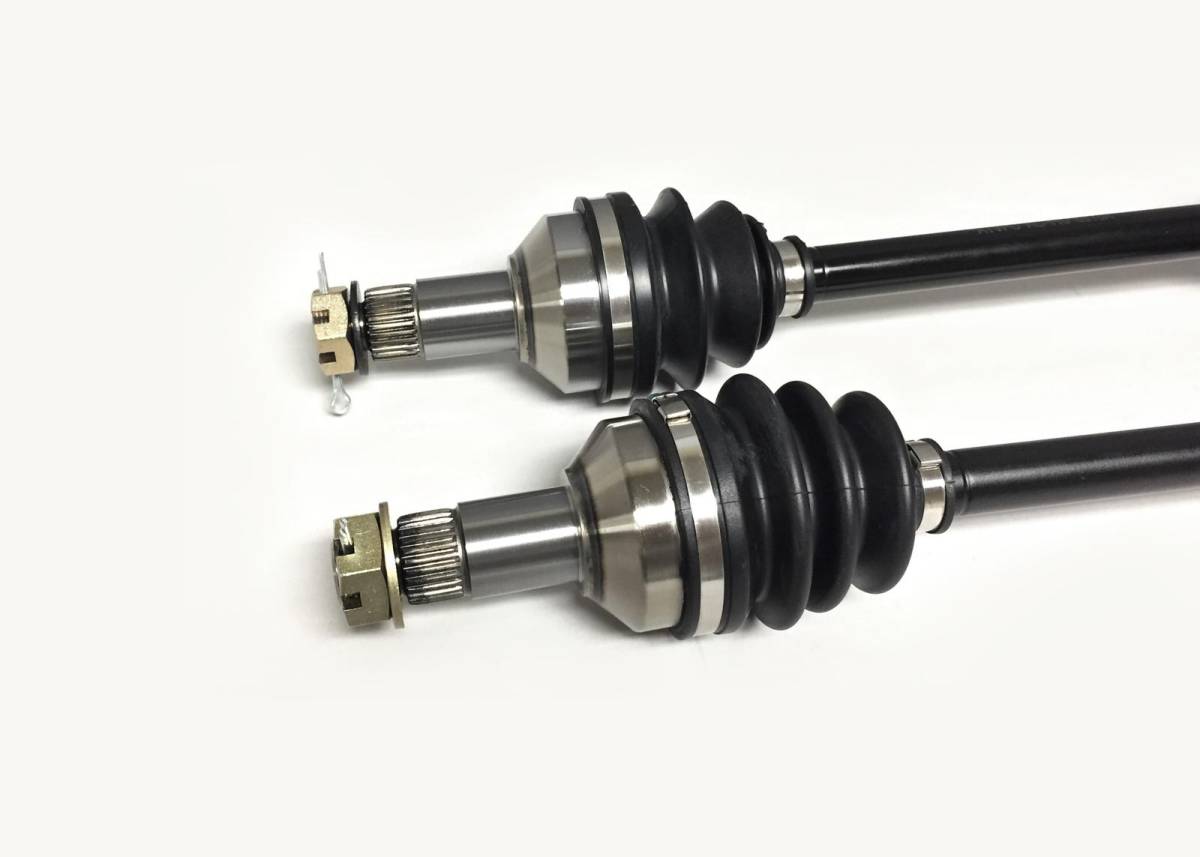

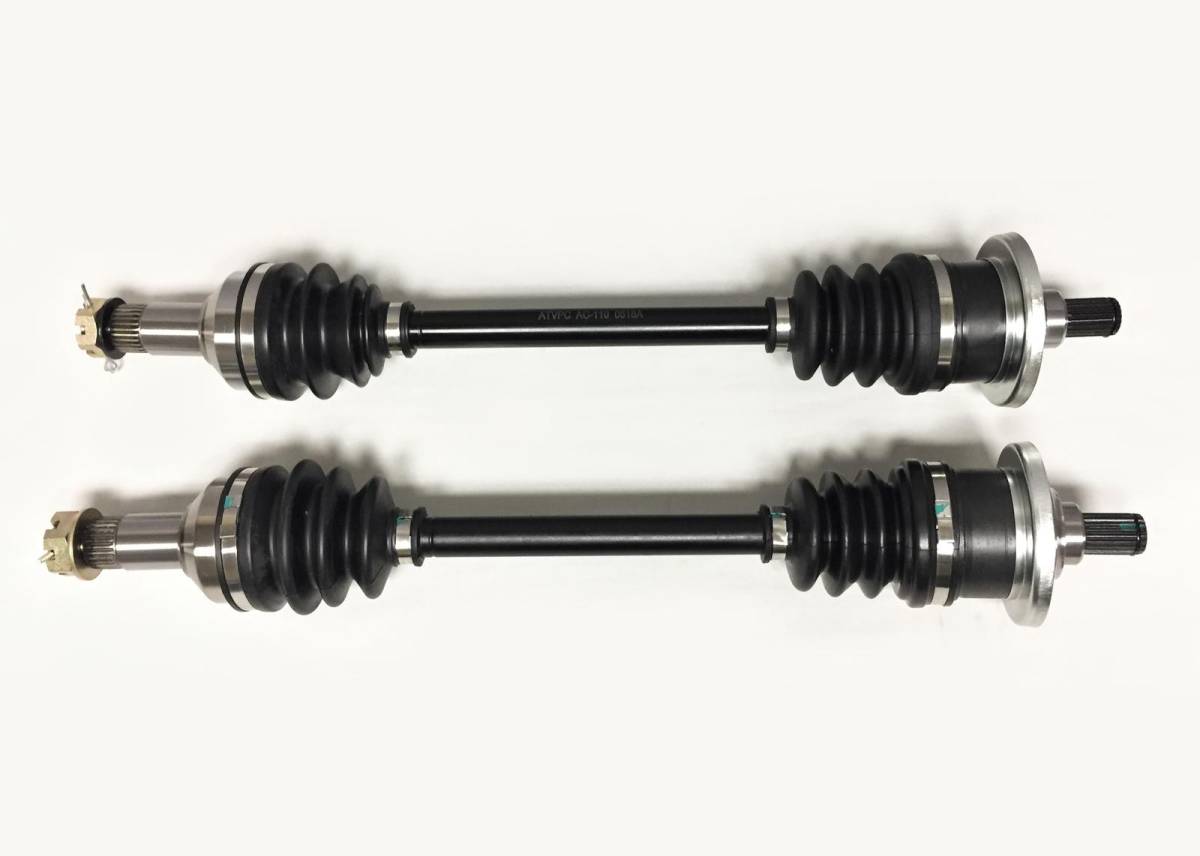

This is a pair of new front CV axles for an Arctic Cat ATV.

They fit the following 4x4 models:

2005 ... 400 FIS MT/AT

2005 ... 500 FIS MT/AT and TBX 500

2005 ... 650 H1/V2

front left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • inobard CV joint spline count: 21 (both)
  • outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: left- 551.5 mm, right- 550 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $174.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2005Arctic Cat4004X4
2005Arctic Cat4004x4 Automatic
2005Arctic Cat4004x4 LE Automatic
2005Arctic Cat4004x4 TBX Automatic
2005Arctic Cat5004X4
2005Arctic Cat5004x4 Automatic
2005Arctic Cat5004x4 LE Automatic
2005Arctic Cat5004x4 TBX Automatic
2005Arctic Cat6504x4 H1 Automatic
2005Arctic Cat6504x4 V2 Automatic
2005Arctic Cat6504x4 V2 LE Automatic

Product Notes

  • Fits the following Arctic Cat ATV models: : 2005 400 FIS AT/MT, 2005 500 FIS AT/MT, 2005 TBX 500, & 2005 650 H1/V2.
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease for additional protection against various environments and to keep vital components lubricated.
  • Replaces OEM # 0502-547, 0502-542, 1502-539, 0502-542. Compressed length: left- 551.5 mm, right- 550 mm, Inboard spline count: 21 (both), Outboard spline count: 27 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

    • What's In The Box

  • 2 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-110/AC-210
    • AC-110/AC-210
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 20.1 lbs.
    • W6.0000” x H12.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
