Front CV Axle & Wheel Bearing for Polaris Sportsman 400 500 600 700, 1380218

Location on vehicle: Front,Left,Right

PO-310/WB-1424

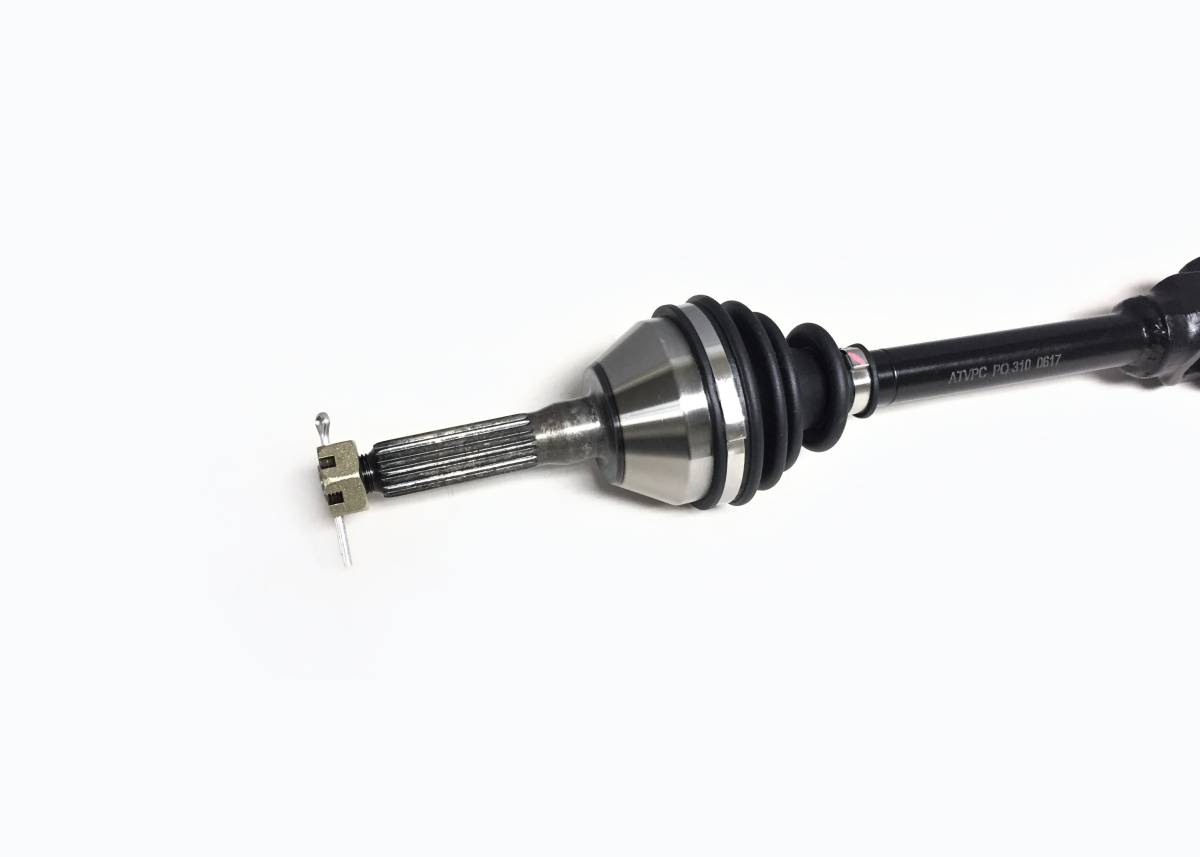

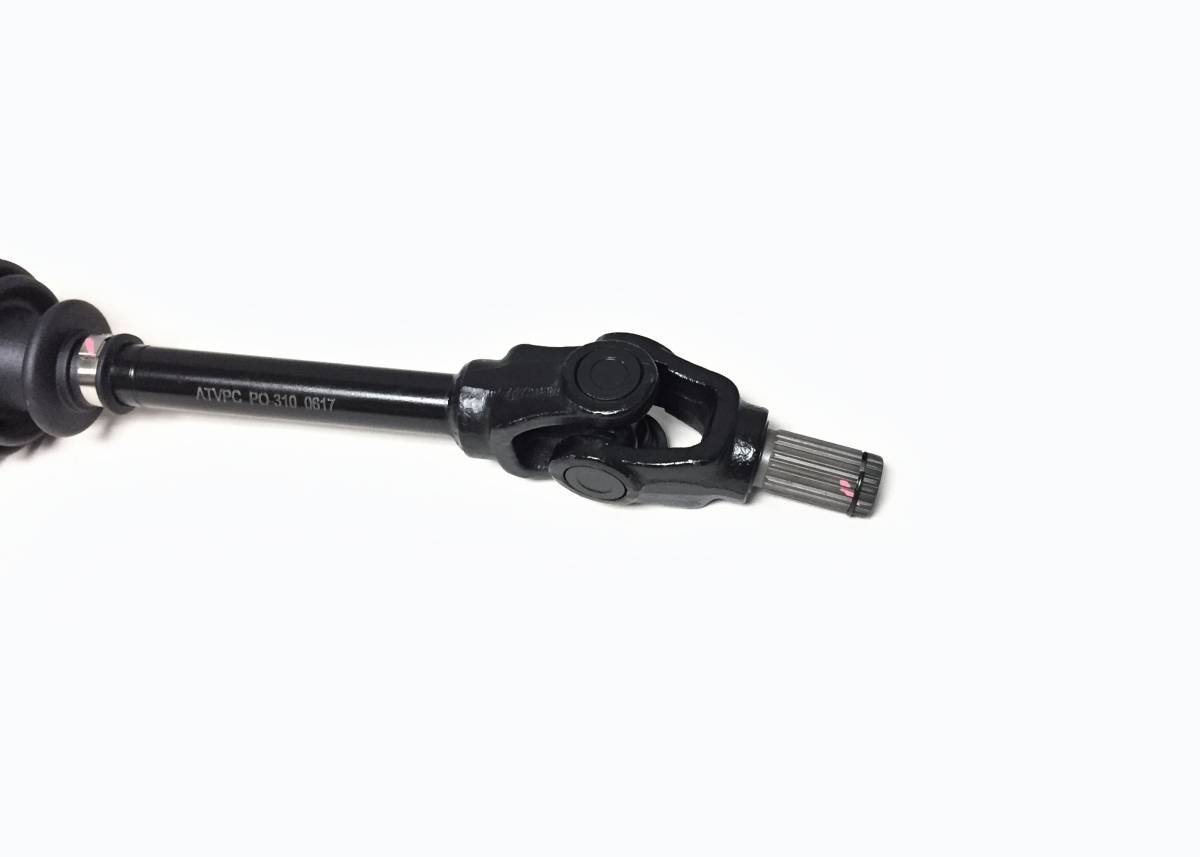

This is a new Front CV axle & wheel bearing for a Polaris ATV.

They fit the following 4x4 models:

2004 ... ATP 330 / ATP 500 HO

2003-2004 ... Sportsman 600

(models built after October 3, 2002)

2002 ... Sportsman 700

(models built after May 1st, 2002)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM, forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene boots for added wear and puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 22
  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 511 mm
  • Replaces Polaris OE # 1380218, 3514342, 3514634
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $91.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits 2004 ATP 330 / 500, 2004 Sportsman 400 (with male spline inboard yoke), 2004 Sportsman 500 4x4 (with male spline inboard yoke), 2003-2004 Sportsman 600 4x4 (built after Oct 3rd, 2002), 2002-2004 Sportsman 700 (built after May 1st, 2002).
  • Axle fitted with neoprene CV boots for added wear and puncture resistance. Greased with a moly based grease to provide superior joint lubrication.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Compressed Length - 511 mm, Inboard Spline Count - 22, Outboard Spline Count - 20. Replaces Polaris OE # 1380218, 3514342, 3514634.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

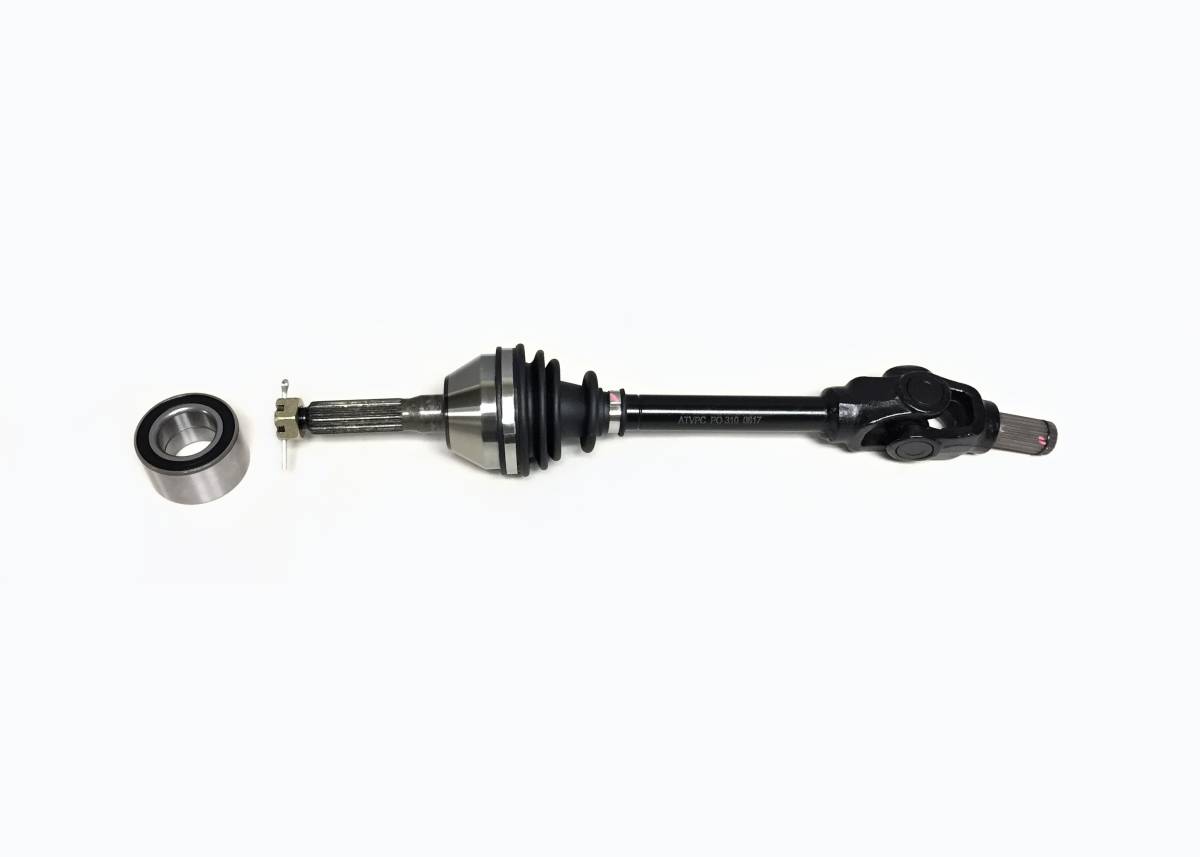

  • 1 CV axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2004PolarisATP 3304X4
    2004PolarisATP 5004x4 HO
    2004PolarisMagnum 3304X4
    2003PolarisMagnum 3304X4
    2004PolarisSportsman 4004X4w/ MALE splines on inner yoke
    2004PolarisSportsman 5004x4 HOw/ MALE splines on inner yoke
    2004PolarisSportsman 600Twin
    2003PolarisSportsman 600Twinonly models manf'd AFTER 10/3/02
    2004PolarisSportsman 700Twin
    2004PolarisSportsman 700Twin EFI
    2003PolarisSportsman 700Twin
    2002PolarisSportsman 700Twinonly models manf'd AFTER 05/1/02
