Front CV Axle & Bearing for Polaris Hawkeye 300 06-07 & Sportsman 300/400 08-10

Location on vehicle: Front,Left,Right

PO-315/WB-1424

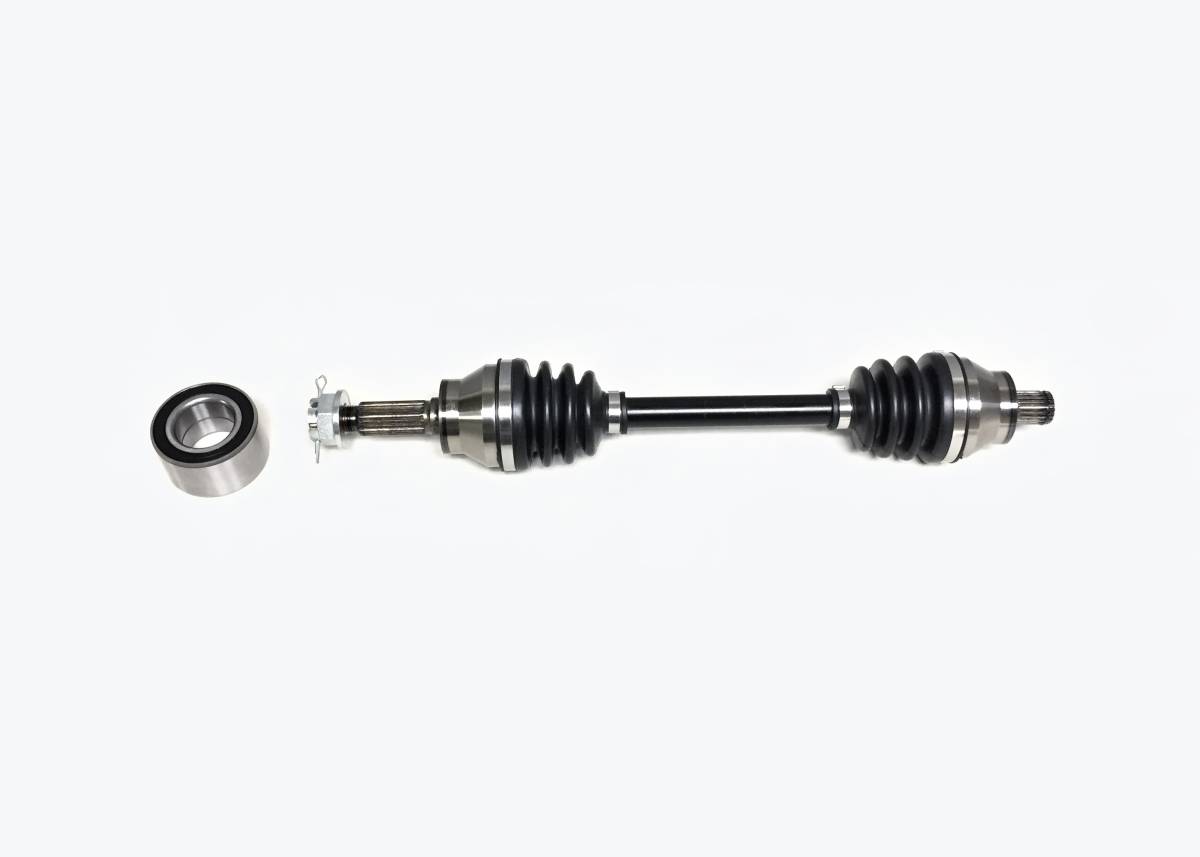

This is a new Front CV axle & wheel bearing for a Polaris ATV.

They fit the following 4x4 models:

2006-2007 ... Hawkeye 300

2008-2010 ... Sportsman 300 / 400

Front, Left or Side

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out
  • Inboard CV joint spline count: 20
  • Outboard CV joint spline count: 20
  • Compressed overall axle length: 463 mm
  • Replaces Polaris OEM # (axle) 1332340, (bearing) 3514342, 3514634
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $72.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT: 2006-2007 Polaris Hawkeye 300 4x4 & 2008-2010 Polaris Sportsman 300/400 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner spline count- 20, Outer spline count- 20, Compressed axle length- 463 mm.
  • Replaces Polaris OEM # (axle) 1332340, (bearing) 3514342, 3514634.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 CV axle & 1 wheel bearing
  • Application List

    YearMakeModelSubmodelNotes
    2007PolarisHawkeye 3002x4
    2007PolarisHawkeye 3004X4
    2006PolarisHawkeye 3002x4
    2006PolarisHawkeye 3004X4
    2010PolarisSportsman 300--
    2009PolarisSportsman 300--
    2008PolarisSportsman 300--
    2010PolarisSportsman 4004x4 HO
    2009PolarisSportsman 4004x4 HO
    2008PolarisSportsman 4004x4 HO

    Details

    • PO-315/WB-1424
    • PO-315/WB-1424
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 8.3 lbs.
    • W5.0000” x H5.0000” x L25.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
