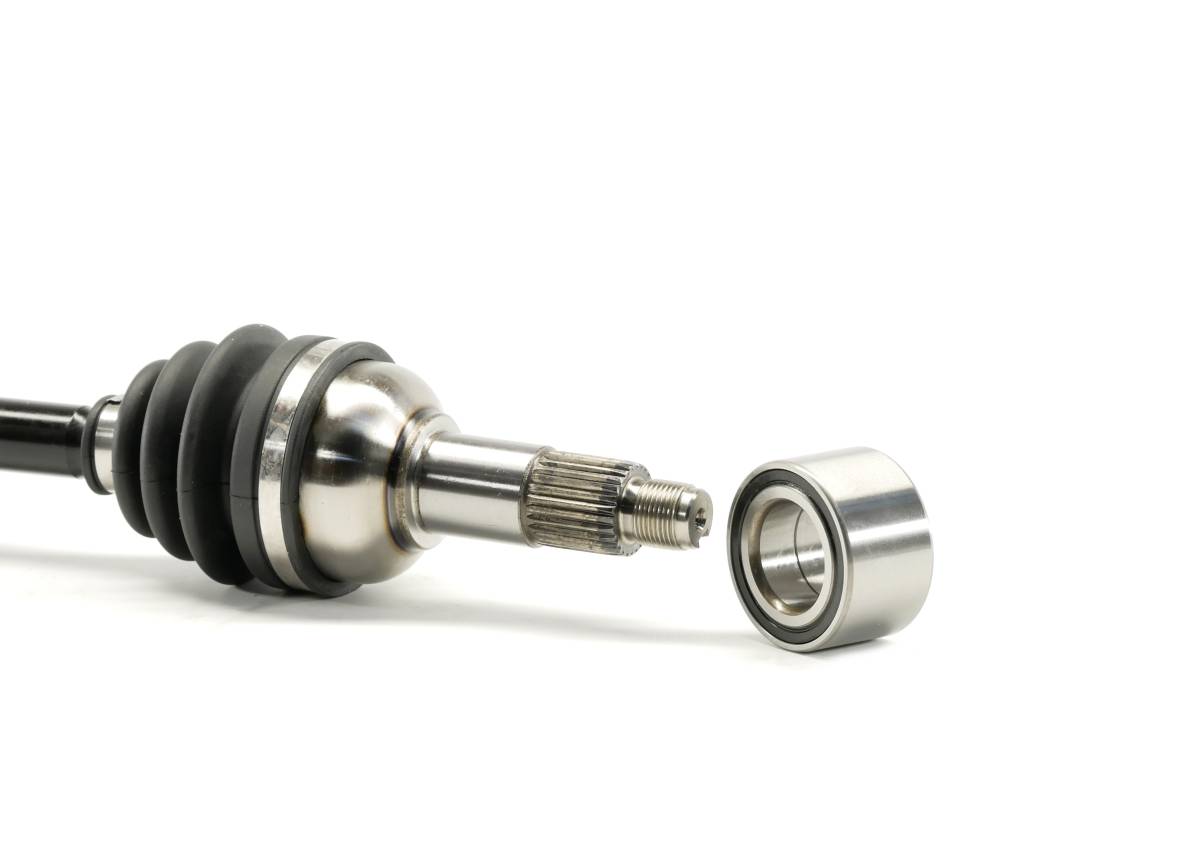

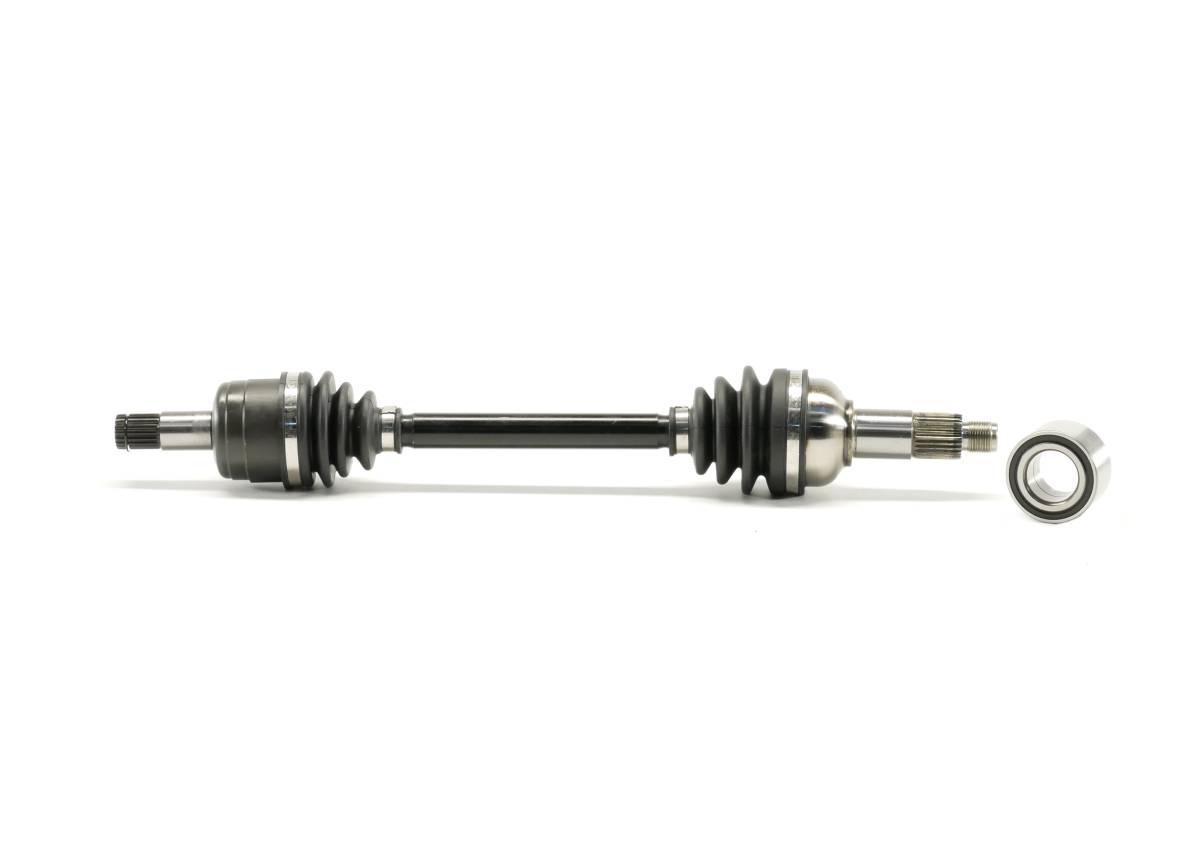

Front CV Axle & Wheel Bearing for Yamaha Grizzly 550 700 & Kodiak 450 700 4x4

Location on vehicle: Front,Left,Right

WB-1496/YA-300
This is a new Front CV axle & wheel bearing for a Yamaha ATV.

Replacement for Yamaha OEM # 3B4-2510J-00-00, 28P-2510J-00-00, 28P-2510J-01-00

They will fit the following 4x4 applications:

2009-2014 ... Grizzly 550

2007-2013 ... Grizzly 700

2018-2019 ... Kodiak 450

2016-2021 ... Kodiak 700

Front, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

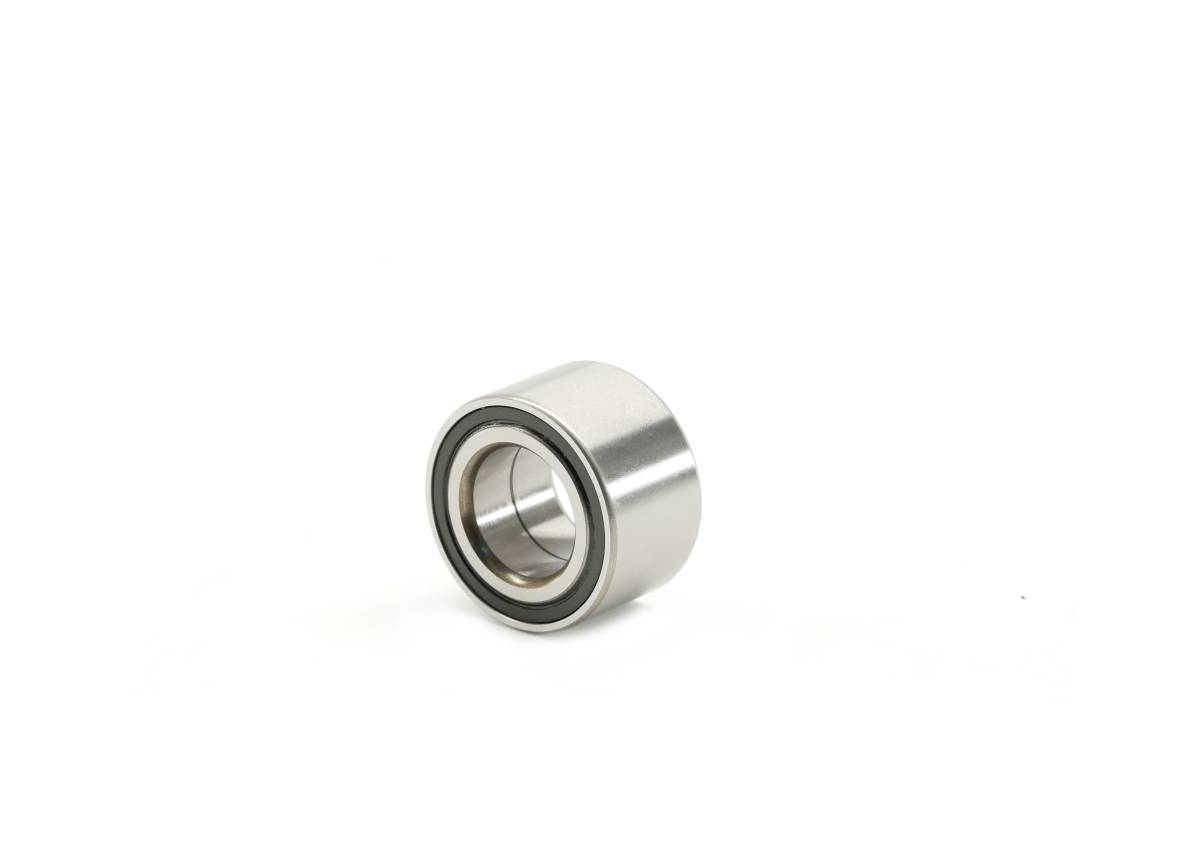

  • High speed bearing manufactured for long life
  • Double lip seal made to keep grease in and dirt out

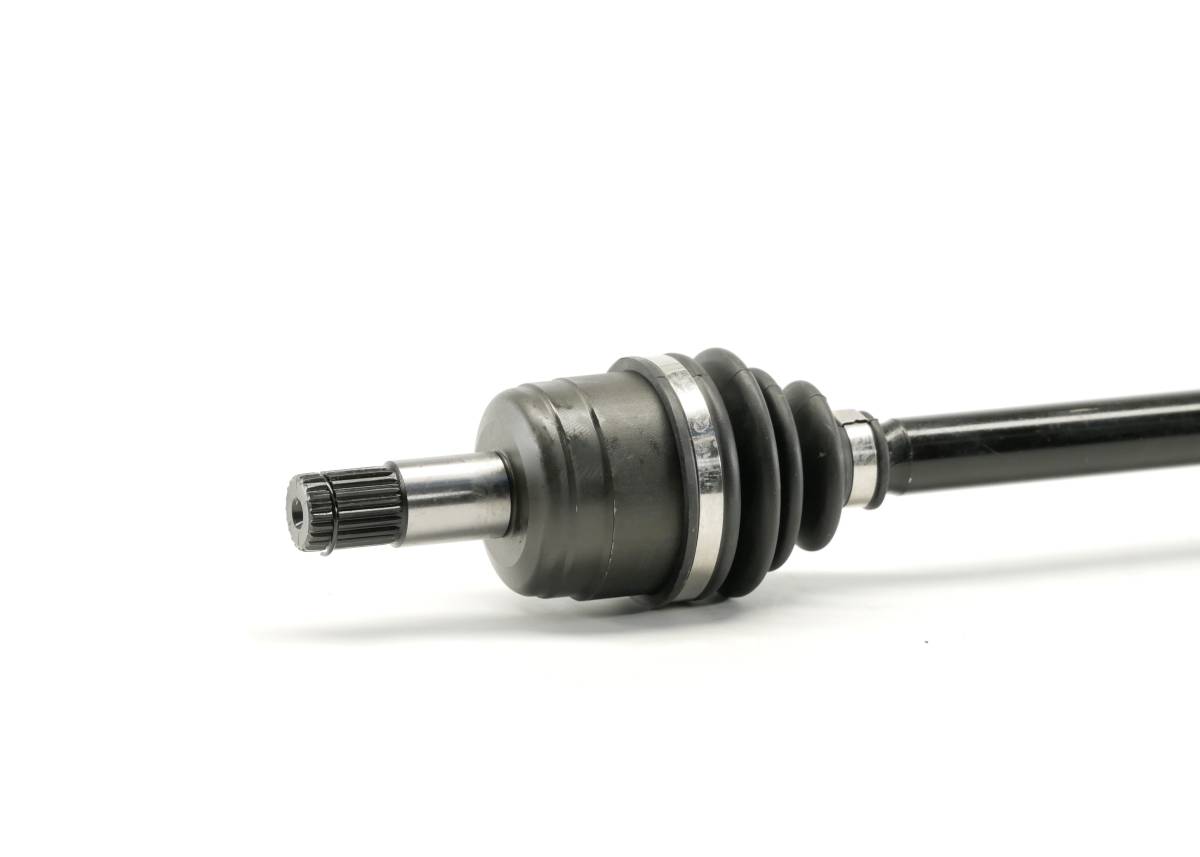

  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 507 mm
Shipping: Free Shipping - Ships Same Day If Ordered Before 3EST
Pricing: $81.33
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits front left or right: 2009-2015 Grizzly 550, 2007-2014 Grizzly 700, 2018-2019 Kodiak 450, 2016-2021 Kodiak 700.
  • Fitted with neoprene CV boots for added wear & puncture resistance. Greased with a moly based grease to provide superior joint lubrication.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inner Splines: 21, Outer Splines: 27, Compressed length: 507 mm.
  • Replaces OE # 3B4-2510J-00-00, 28P-2510J-00-00, 28P-2510J-01-00, 3B4-2510F-00-00, 28P-2510F-00-00, 28P-2510F-01-00, 28P-2510F-04-00, 93305-00602-00, 93305-00601-00.
  • Application List

    YearMakeModelSubmodelNotes
    2014YamahaGrizzly 550YFM550D 4x4 FI
    2014YamahaGrizzly 550YFM550DHH 4x4 Hunter Edition FI
    2014YamahaGrizzly 550YFM550P 4x4 FI EPS
    2014YamahaGrizzly 550YFM550PHH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 550YFM550FG 4x4 FI
    2013YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2013YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 550YFM550FG 4x4 FI
    2012YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2012YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 550YFM550FG 4x4 FI
    2011YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2011YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 550YFM550FG 4x4 FI
    2010YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2010YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 550YFM550FG 4x4 FI
    2009YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 550YFM550FGP 4x4 FI EPS
    2009YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 550YFM550FGPSE 4x4 Special Edition FI EPS
    2013YamahaGrizzly 700YFM700FG 4x4 FI
    2013YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2013YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2013YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2013YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2012YamahaGrizzly 700YFM700FG 4x4 FI
    2012YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2012YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2012YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2012YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2011YamahaGrizzly 700YFM700FG 4x4 FI
    2011YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2011YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2011YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2011YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2010YamahaGrizzly 700YFM700FG 4x4 FI
    2010YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2010YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2010YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2010YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2009YamahaGrizzly 700YFM700FG 4x4 FI
    2009YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
    2009YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2009YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
    2009YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
    2008YamahaGrizzly 700YFM700FG 4x4 FI
    2008YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2008YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2008YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2007YamahaGrizzly 700YFM700FG 4x4 Exploring Edition FI
    2007YamahaGrizzly 700YFM700FGP 4x4 FI
    2007YamahaGrizzly 700YFM700FGP 4x4 FI EPS
    2007YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
    2007YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
    2007YamahaGrizzly 700YFM700FGPOH 4x4 Outdoorsman Edition FI
    2007YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI
    2016YamahaKodiak 700KYFM700K 4x4 FI
    2016YamahaKodiak 700KYFM700KP 4x4 FI EPS
    2016YamahaKodiak 700KYFM700KPSE 4x4 Special Edition FI EPS

    What's in the box

    1 CV Axle & 1 Wheel Bearing

    Details

    • WB-1496/YA-300
    • WB-1496/YA-300
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 8.8 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Ships Same Day If Ordered Before 3EST
