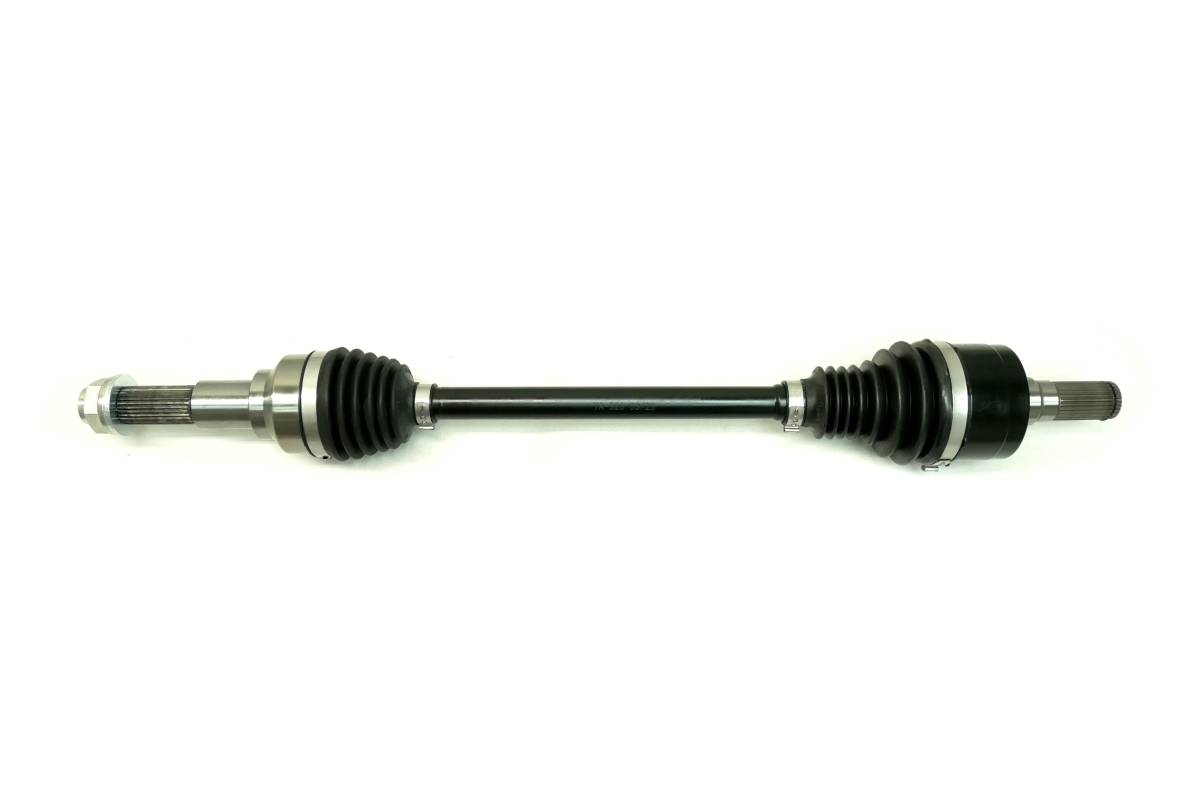

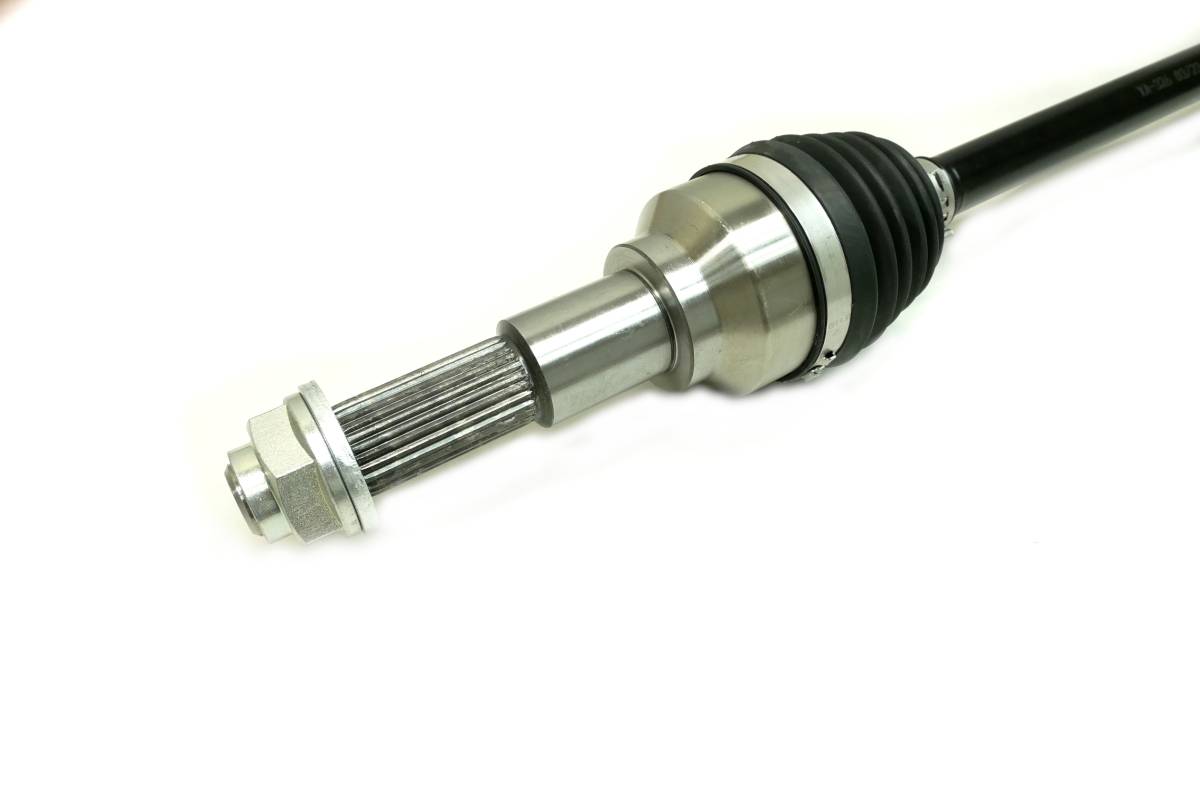

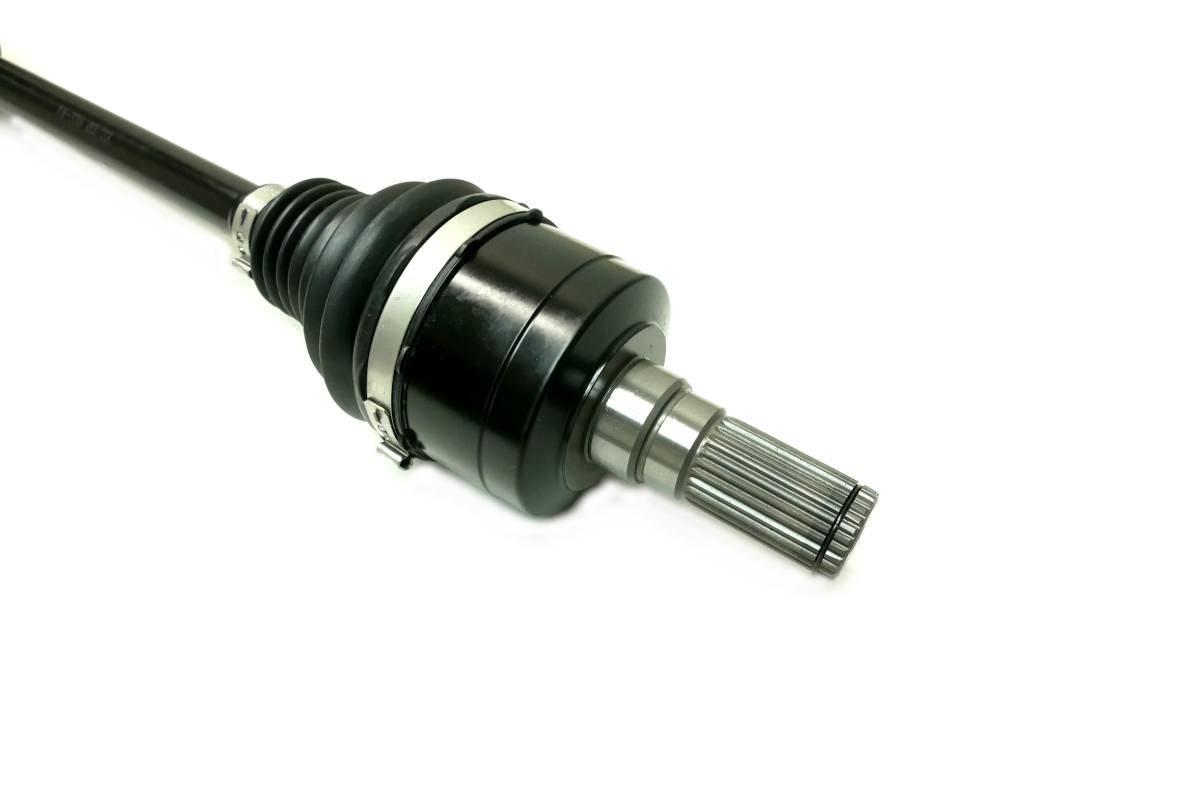

Rear CV Axle for Yamaha Wolverine X2 & Wolverine X4 2020-2024, BAR-2531H-00-00

Location on vehicle: Rear,Left,Right

(0) Reviews: Write first review
YA-326
This is a new CV axle for a Yamaha Side x Side.

It fits REAR, LEFT or RIGHT on the following models:

2020-2024 Wolverine X2 & X2 R-Spec (YXE85)

2020-2024 Wolverine X4 (YXF85)

*Axle made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

  • Stronger than OEM, 4340 chromoly steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 27
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 717 mm
  • Replaces OEM # BAR-2531H-00-00, BAR-2531H-01-00
Limited Supply: only 7 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $83.30
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2020YamahaWolverine X2YXE85 4x4
2023YamahaWolverine X2 850YXE85 4x4 R-Spec
2023YamahaWolverine X2 850YXE85 4x4 XT-R
2022YamahaWolverine X2 850YXE85 4x4 R-Spec
2022YamahaWolverine X2 850YXE85 4x4 XT-R
2021YamahaWolverine X2 850YXE85 4x4 R-Spec
2021YamahaWolverine X2 850YXE85 4x4 XT-R
2020YamahaWolverine X44x4 XT-R
2020YamahaWolverine X4YXF85 4x4
2023YamahaWolverine X4 850YXF85 4x4 R-Spec
2023YamahaWolverine X4 850YXF85 4x4 XT-R
2022YamahaWolverine X4 850YXF85 4x4 R-Spec
2022YamahaWolverine X4 850YXF85 4x4 XT-R
2021YamahaWolverine X4 850YXF85 4x4 R-Spec
2021YamahaWolverine X4 850YXF85 4x4 XT-R
2024YamahaWolverine X4 850YXF85 4x4 R-Spec
2024YamahaWolverine X4 850YXF85 4x4 XT-R
2024YamahaWolverine X2 850YXE85 4x4 R-Spec
2024YamahaWolverine X2 850YXE85 4x4 XT-R

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Yamaha SXS models: 2020-2024 Wolverine X2/R-Spec (YXE85), 2020-2024 Wolverine X4 (YXF85).
  • Features a stronger than OEM, 4340 chromoly steel bar. Joints fitted with neoprene boots for added flexibility and resistance to hot/cold temperatures.
  • Uses high-performance moly grease for additional protection against extreme temperatures and to keep vital components lubricated.
  • Replaces OEM # BAR-2531H-00-00, BAR-2531H-01-00. Inboard spline count: 27, Outboard spline count 27, Compressed axle length 717 mm.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 1 axle

    • Warranty

    1 year factory defect warranty

    Details

    • YA-326
    • YA-326
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 14.2 lbs.
    • W5.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
