Front CV Axle for Can-Am Maverick X3 72", Turbo R RR XRS XMR XRC, 705402048

Location on vehicle: Front,Left,Right

CA-127

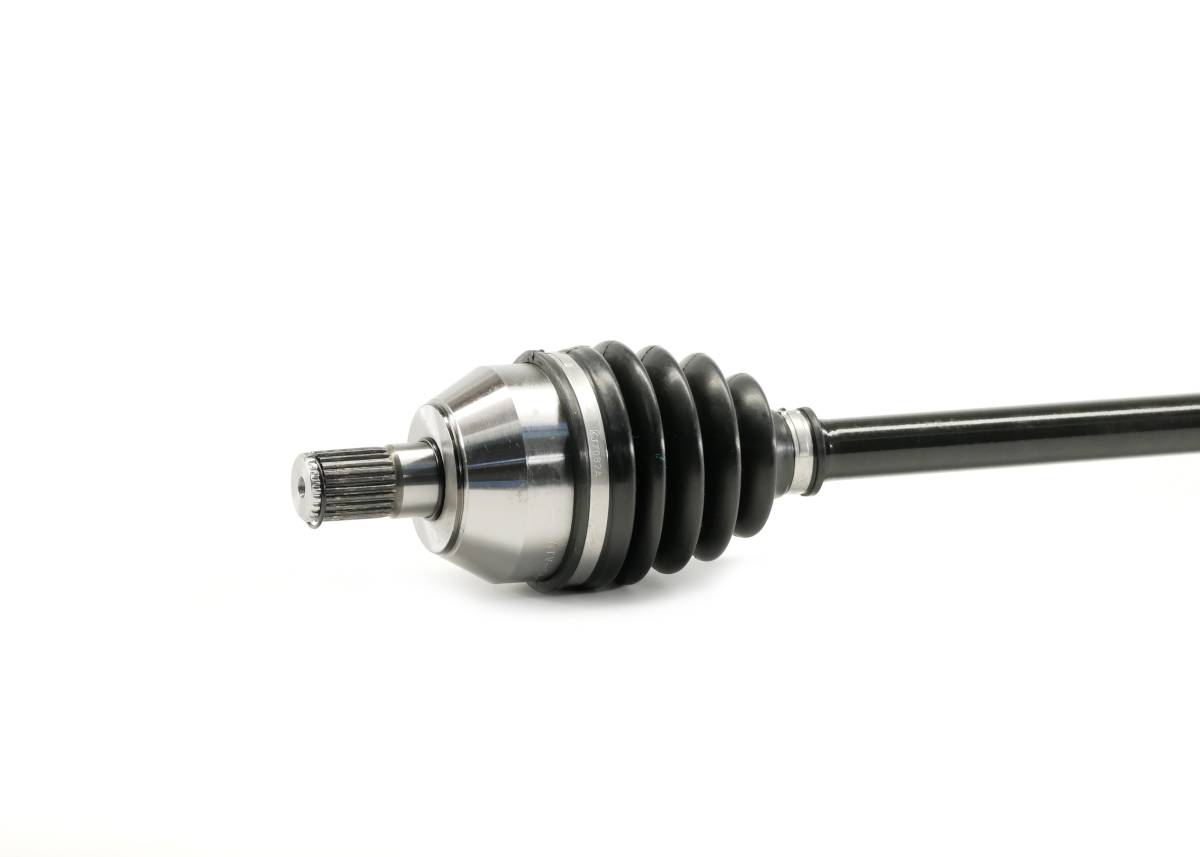

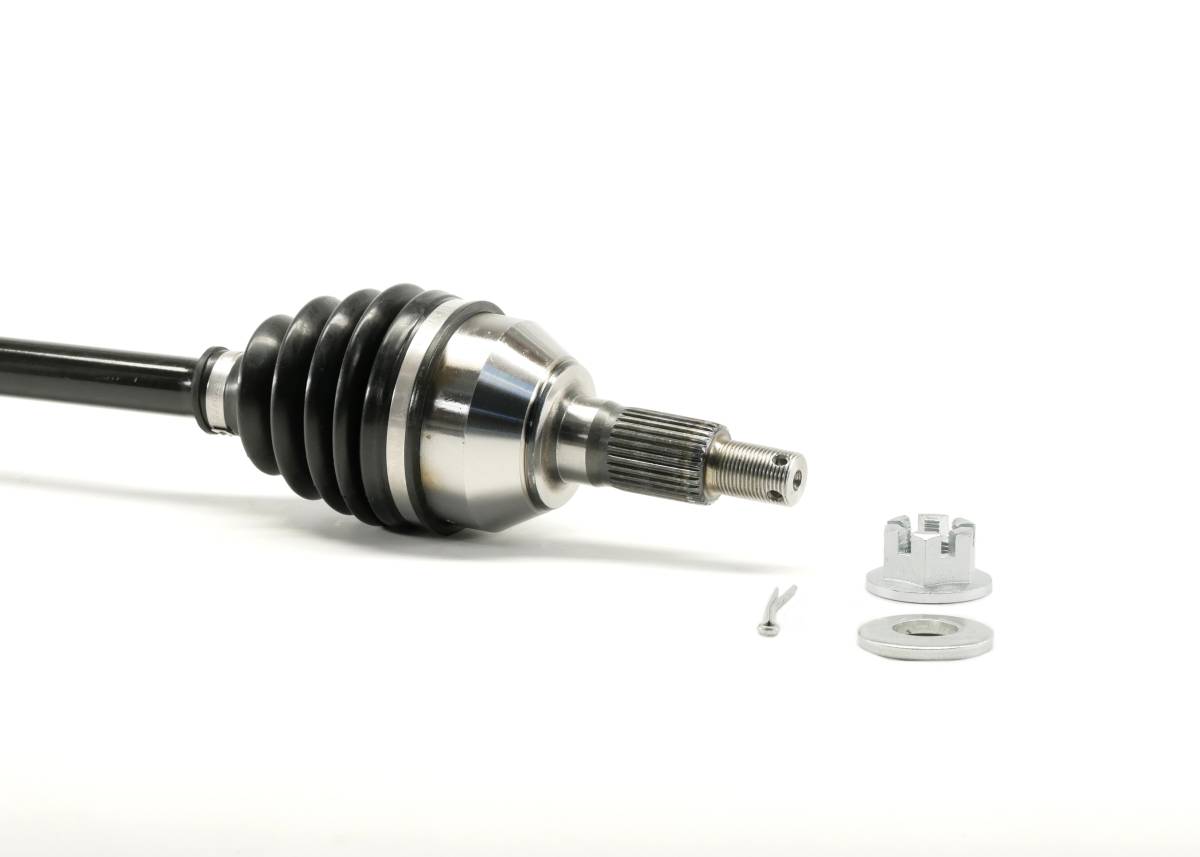

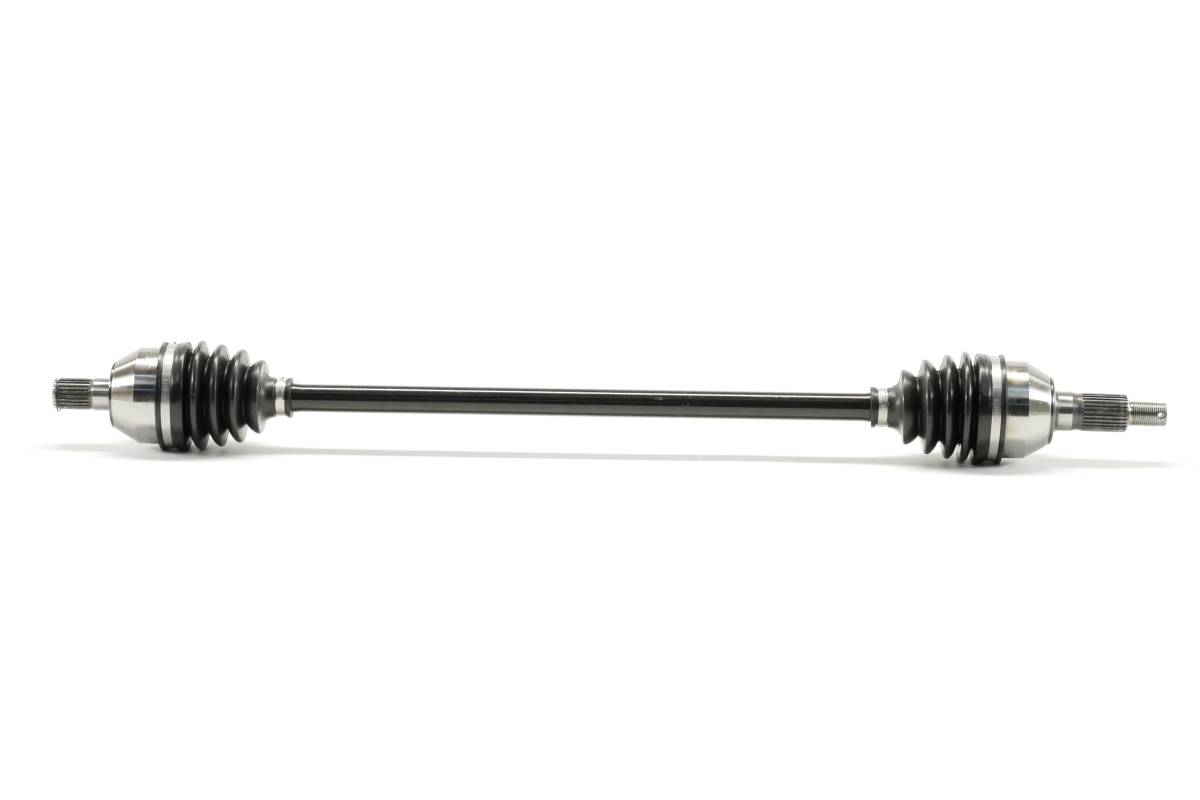

This is a new Front CV axle for a Can-Am Maverick X3.

It will fit the following 4x4 models:

2018-2019 Turbo R: XRC, XMR, XRS (with Smart Lok), 2022 Turbo RR RS, 2019 Max Turbo R XRS, 2020-2022 Turbo RR/MAX Turbo RR: XRC, XMR, XRS

*Not intended for use on lifted vehicles

Product features:

  • Features a stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • Inboard CV joint spline count: 24
  • Outboard CV joint spline count: 29
  • Compressed axle length : 849.5 mm
  • Replaces OEM # 705402048
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $104.99
Qty:
Free Standard Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT or RIGHT on the following Can-Am Maverick X3 72" models: 2018-2019 Turbo R: XRC, XMR, XRS (with Smart Lok), 2022 Turbo RR RS, 2019 Max Turbo R XRS, 2020-2022 Turbo RR/MAX Turbo RR: XRC, XMR, XRS.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inboard CV joint spline count: 24, Outboard CV joint spline count: 29, Compressed overall axle length: 845.5 mm.
  • Replaces OEM # 705402048. Please note the Maverick X3 has 64" and 72" models, and this will only fit the 72" models referenced above.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

  • 1 axle
  • Application List

    YearMakeModelSubmodelNotes
    2019Can-AmMaverick X3 Max R4x4 XRS Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2022Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2021Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XMR Turbo DPS
    2020Can-AmMaverick X3 Max RR4x4 XRS Turbo DPS
    2019Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2019Can-AmMaverick X3 R4x4 XRC Turbo DPS
    2019Can-AmMaverick X3 R4x4 XRS Turbo DPS
    2018Can-AmMaverick X3 R4x4 XMR Turbo DPS
    2018Can-AmMaverick X3 R4x4 XRC Turbo DPS
    2018Can-AmMaverick X3 R4x4 XRS Turbo DPSmodels with Smart Lok
    2022Can-AmMaverick X3 RR4x4 RS Turbo DPS
    2022Can-AmMaverick X3 RR4x4 XMR Turbo DPS 72
    2022Can-AmMaverick X3 RR4x4 XRC Turbo DPS 72
    2021Can-AmMaverick X3 RR4x4 XMR Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XRC Turbo DPS
    2021Can-AmMaverick X3 RR4x4 XRS Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XMR Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XRC Turbo DPS
    2020Can-AmMaverick X3 RR4x4 XRS Turbo DPS

    Details

    Shipping Information

    • Item Requires Shipping
    • 15.0 lbs.
    • W5.0000” x H5.0000” x L39.0000”
    • Free Standard Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
