Rear Axle Pair with Wheel Bearings for Polaris Sportsman 400 500 570 800 11-15

Location on vehicle: Rear,Left,Right

PO-329/PO-329/WB-1150

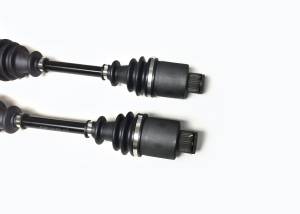

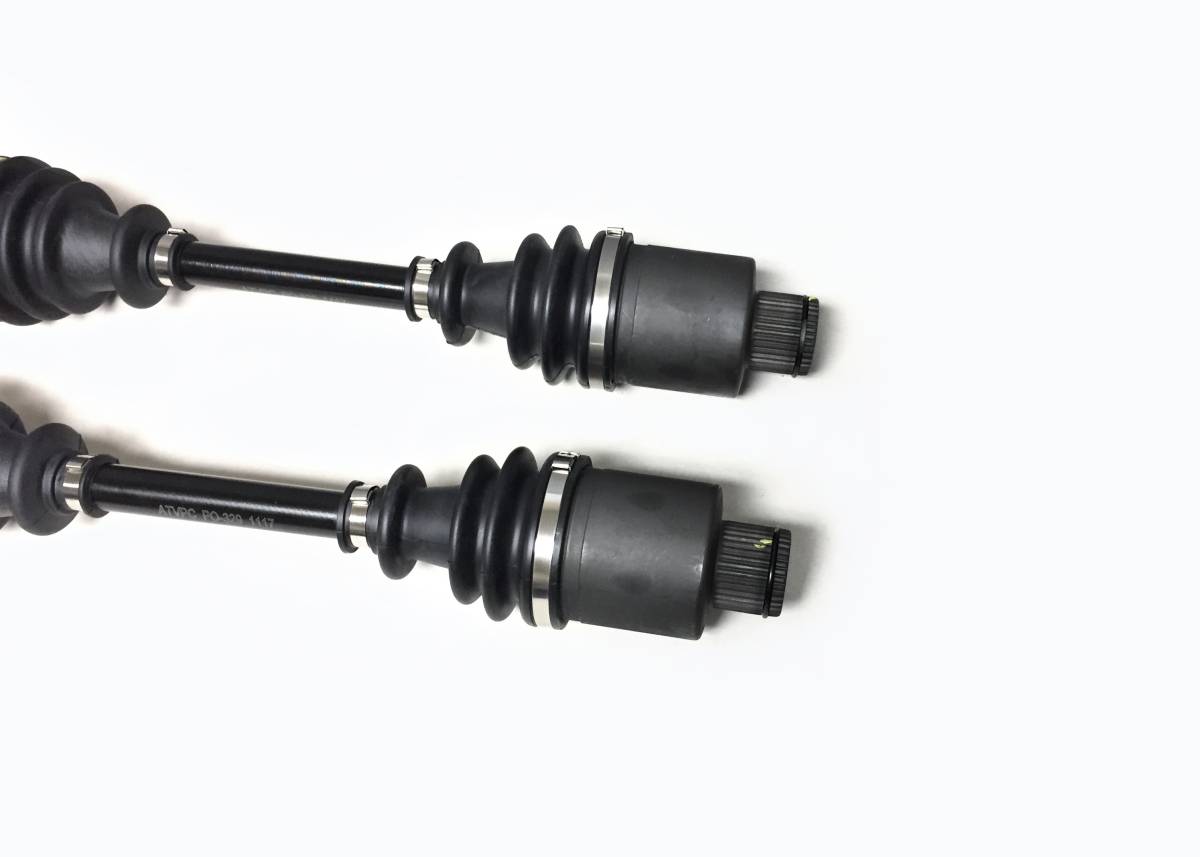

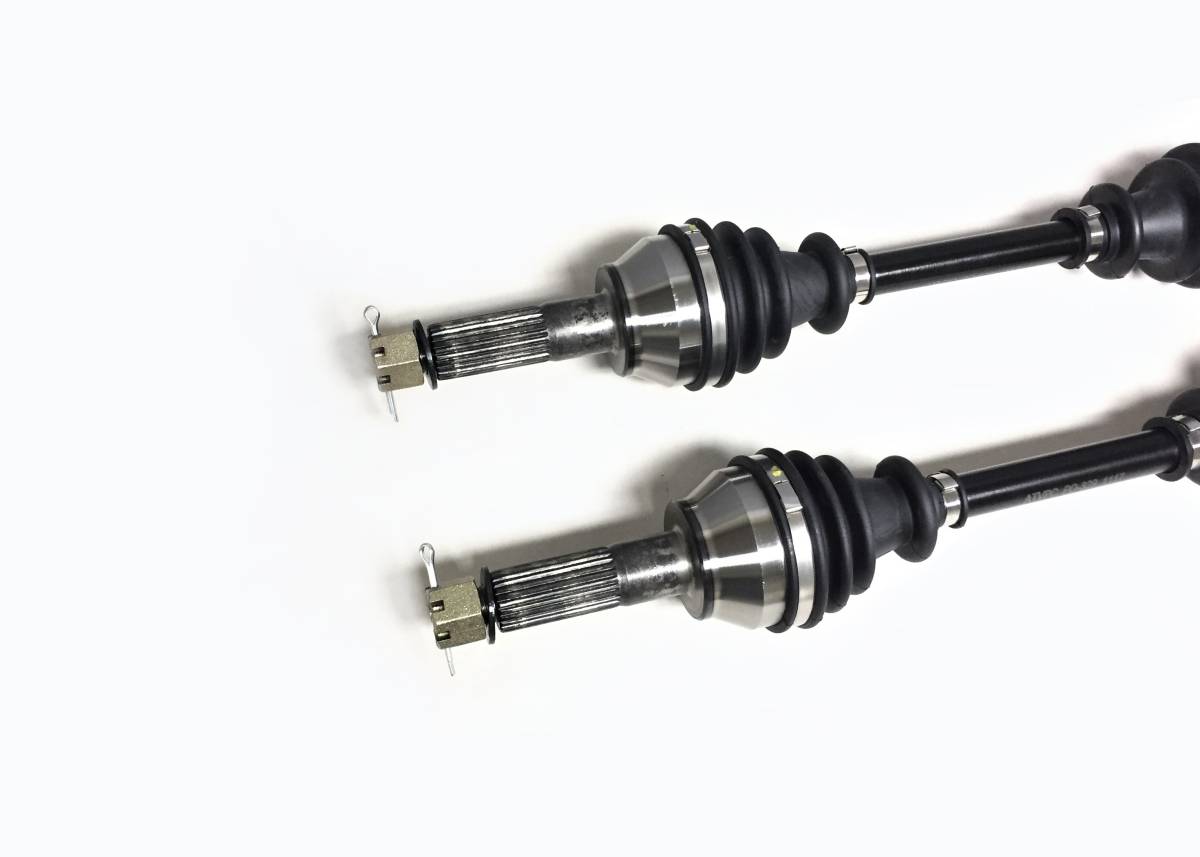

This is a set of new Rear CV axles & wheel bearings for a Polaris ATV.

They fit the following models:

2011-2014 ... Hawkeye 400

2011-2014 ... Sportsman 400

2011-2014 ... Sportsman 500 (excluding 'Touring' models)

2014 ... Sportsman 570

2011-2015 ... Sportsman 800

(also fits middle left & right on Sportsman 6x6 800 models)

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance
  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 36 (both)
  • Outboard CV joint spline count: 26 (both)
  • Compressed overall axle length: 558.5 mm (both)
  • Replaces Polaris OE # (axles) 1332935, 1332421, 1332511, 1332654, (bearings) 3514635 3585502
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $171.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits: 2011-2014 Hawkeye 400 HO, 2011-2014 Sportsman 400, 2011-2014 Sportsman 500 (excluding Touring models), 2014 Sportsman 570, 2011-2015 Sportsman 800 4x4 & 6x6 * Also fits the middle left & right side on Sportsman 800 6x6 models from 2011-2015.
  • Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Compressed Length - 558.5 mm (both), Inboard Spline Count - 36 (both), Outboard Spline Count - 26 (both). Replaces Polaris OE # (axles) 1332935, 1332421, 1332511, 1332654, (bearings) 3514635 3585502.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

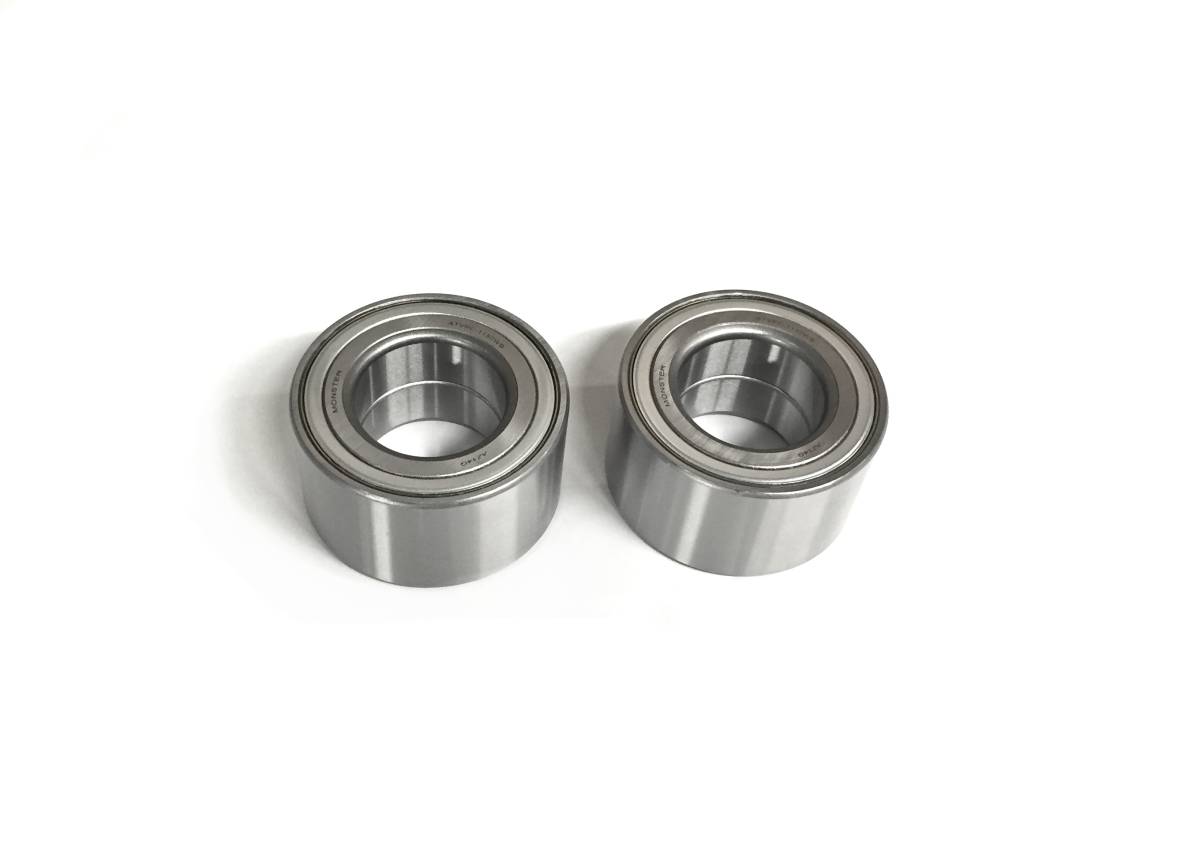

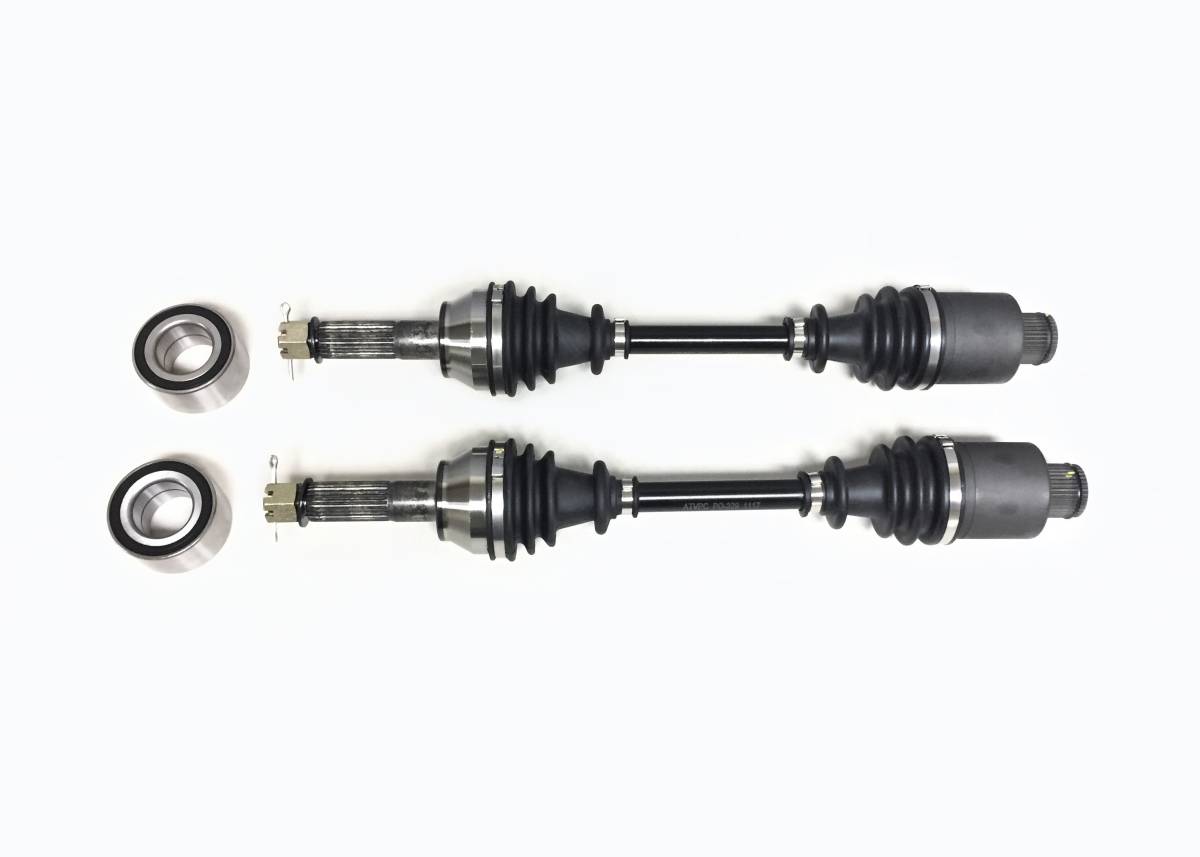

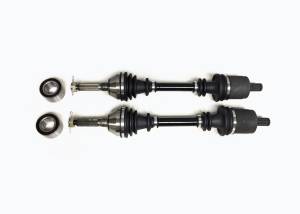

  • 2 CV axles & 2 wheel bearings
  • Application List

    YearMakeModelSubmodelNotes
    2014PolarisHawkeye 400HO 2x4
    2013PolarisHawkeye 400HO 2x4
    2012PolarisHawkeye 400HO 2x4
    2011PolarisHawkeye 400HO 2x4
    2014PolarisSportsman 500Forrest Tractor
    2014PolarisSportsman 400--
    2014PolarisSportsman 400HO
    2014PolarisSportsman 400South Edition HO
    2013PolarisSportsman 4004x4 HO
    2013PolarisSportsman 4004x4 South Edition HO
    2012PolarisSportsman 4004x4 HO
    2011PolarisSportsman 4004x4 HO
    2013PolarisSportsman 5004x4 HO
    2013PolarisSportsman 500Forest
    2013PolarisSportsman 500Forest Tractor
    2013PolarisSportsman 500Pursuit HO
    2012PolarisSportsman 5004x4 HO
    2012PolarisSportsman 5004x4 Pursuit HO
    2012PolarisSportsman 500Forest
    2012PolarisSportsman 500Forest Tractor
    2012PolarisSportsman 500LE HO
    2011PolarisSportsman 5004x4 HO
    2011PolarisSportsman 500Forest
    2011PolarisSportsman 500Forest Tractor
    2014PolarisSportsman 570EFI
    2014PolarisSportsman 570EFI EPS
    2014PolarisSportsman 570Forest
    2014PolarisSportsman 570Pursuit EFI
    2014PolarisSportsman 570Pursuit EFI EPS
    2014PolarisSportsman 570Touring
    2014PolarisSportsman 570Touring EFI EPS
    2014PolarisSportsman 800EFI
    2014PolarisSportsman 800Forest
    2013PolarisSportsman 800EFI
    2013PolarisSportsman 800Forest
    2012PolarisSportsman 800EFI
    2012PolarisSportsman 800Forest
    2011PolarisSportsman 800EFI

    Details

    • PO-329/PO-329/WB-1150
    • PO-329/PO-329/WB-1150
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 24.9 lbs.
    • W5.0000” x H10.0000” x L25.0000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
