Rear Axle Pair with Wheel Bearings for Arctic Cat Wildcat 1000 4x4 2012-2015

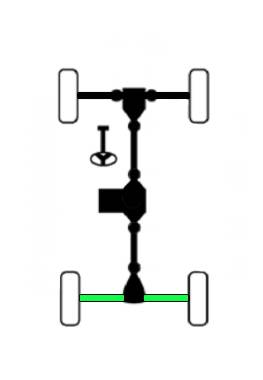

Location on vehicle: Rear,Left,Right

AC-324/AC-324/WB-1496/WB-1496

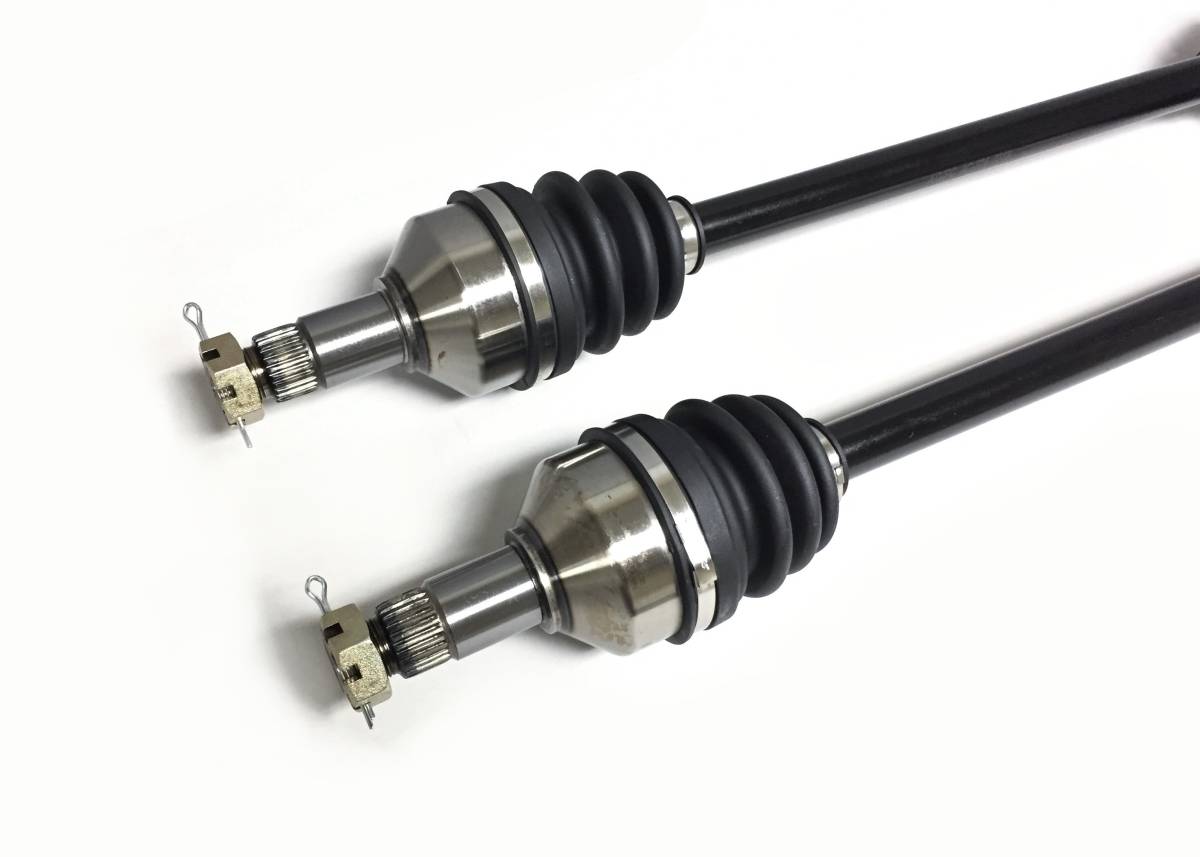

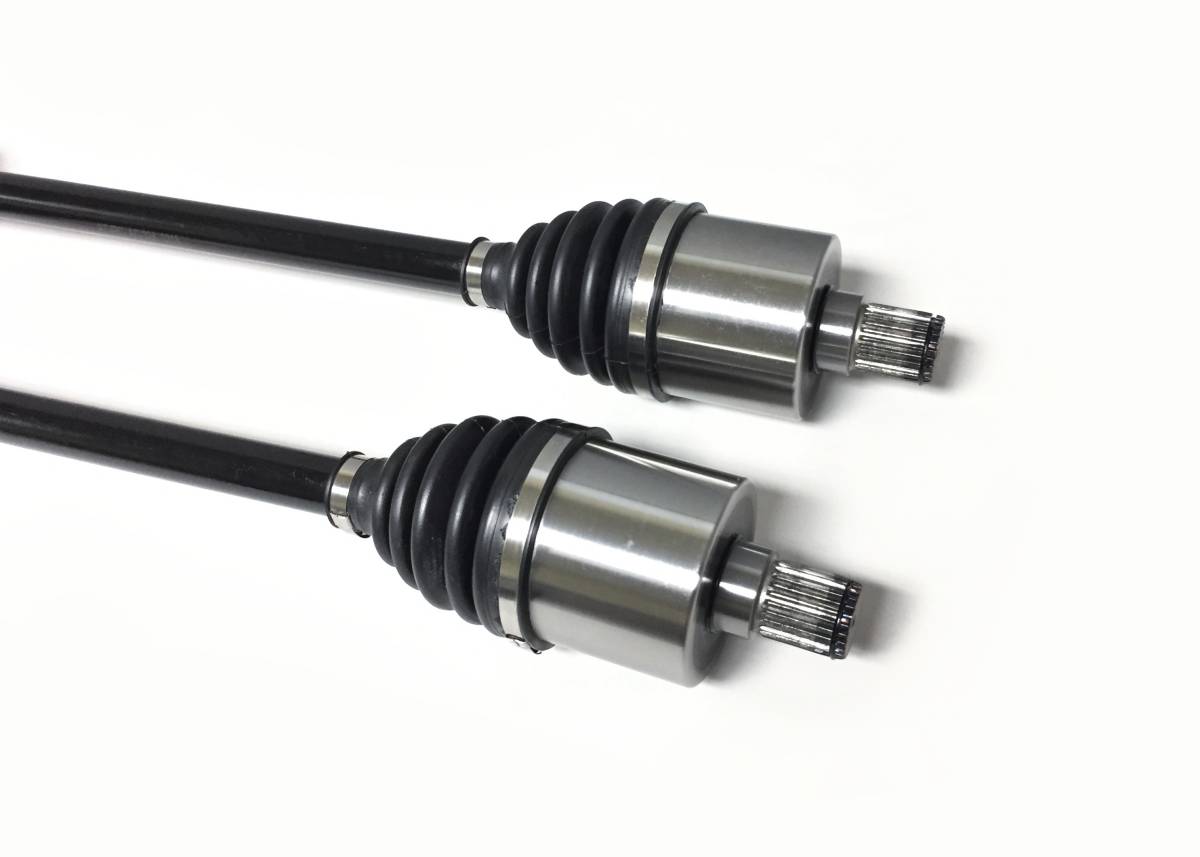

This is a set of new rear CV axles and wheel bearings for an Arctic Cat UTV.

They fit the following 4x4 models:

2012-2015 ..... Wildcat 1000

(fits: GT, Standard, Limited, 4, X and 4X models)

rear, left & right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

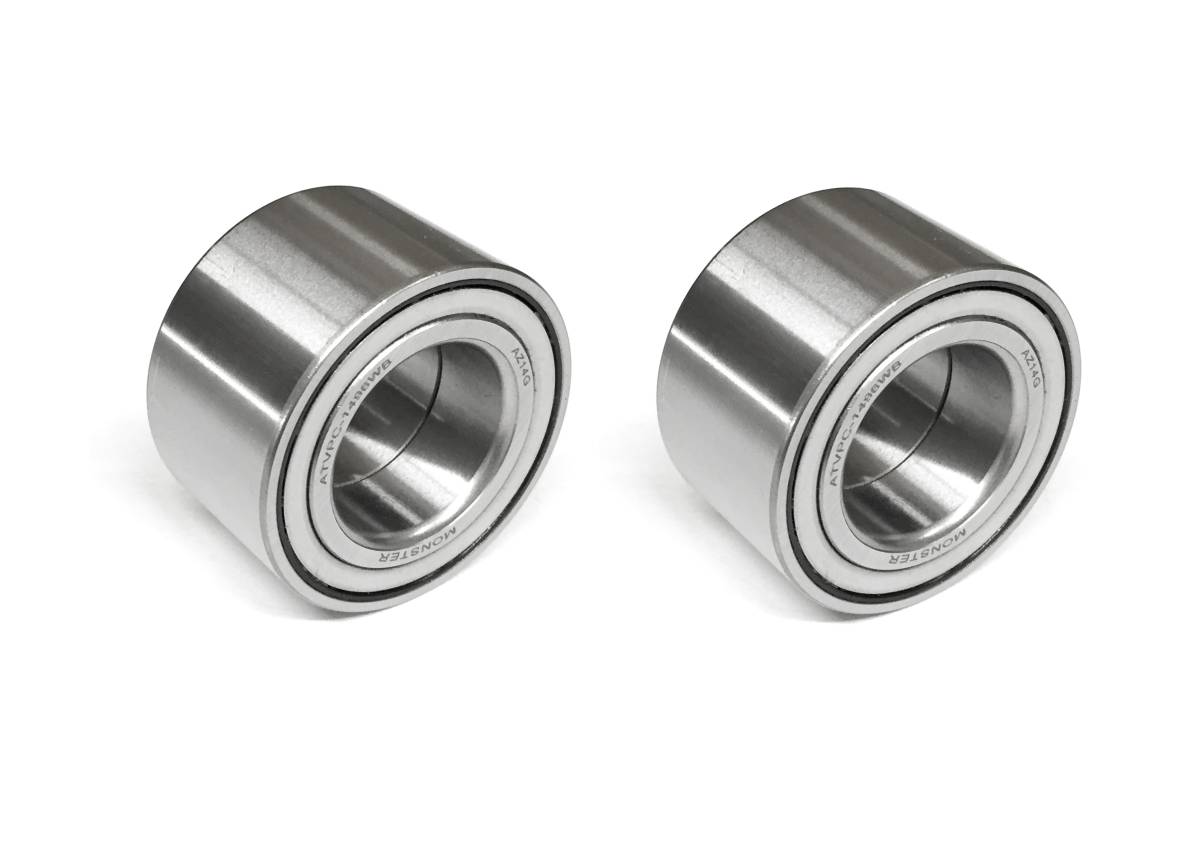

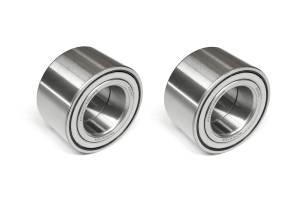

  • High speed bearings manufactured for long life
  • Double lip seals made to keep grease in and dirt and water out
  • inobard CV joint spline count: 27 (both)
  • outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: 710.5 mm (both)
  • Replaces Arctic Cat OEM # 1502-914, 1402-027, 1402-809
Limited Supply: only 8 remaining
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $189.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2014Arctic CatWildcat 4 1000--
2014Arctic CatWildcat 4 1000Limited
2013Arctic CatWildcat 4 1000--
2015Arctic CatWildcat 4X 10004x4 EPS
2015Arctic CatWildcat 4X 10004x4 Limited EPS
2014Arctic CatWildcat 4X 1000--
2014Arctic CatWildcat 4X 1000Limited
2015Arctic CatWildcat 10004x4 EPS
2014Arctic CatWildcat 1000--
2014Arctic CatWildcat 1000Limited
2013Arctic CatWildcat 1000--
2013Arctic CatWildcat 1000Limited
2013Arctic CatWildcat 1000Walker Evans Limited
2012Arctic CatWildcat 1000GT HO
2015Arctic CatWildcat X 10004x4 EPS
2015Arctic CatWildcat X 10004x4 Limited EPS
2014Arctic CatWildcat X 1000--
2014Arctic CatWildcat X 1000Limited
2013Arctic CatWildcat X 1000--

Product Notes

  • Fits rear, left and right on the following Arctic Cat models: 2012-2015 Wildcat 1000 (all including GT, STD, LTD, SE, X, 4, & 4X).
  • Features stronger than OEM, 4340 chromoly steel bars for a higher tensile strenth and more durability. Engineered as a direct replacement, fully-assembled, and ready to install. Please note the bearings are usually shipped inside the axle boxes.
  • Joints fitted with neoprene CV boots for added flexibility and resistance to hot/cold temperatures. Also uses high-performance moly grease to keep vital components lubricated. High speed bearings manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces OEM # 1502-914, 1402-027, 1402-809. Compressed axle length: 710.5 mm (both), Inboard CV joint spline count: 27 (both), Outboard CV joint spline count: 27 (both).
  • Warranty: 1 Year (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on modified suspensions.

  • What's In The Box

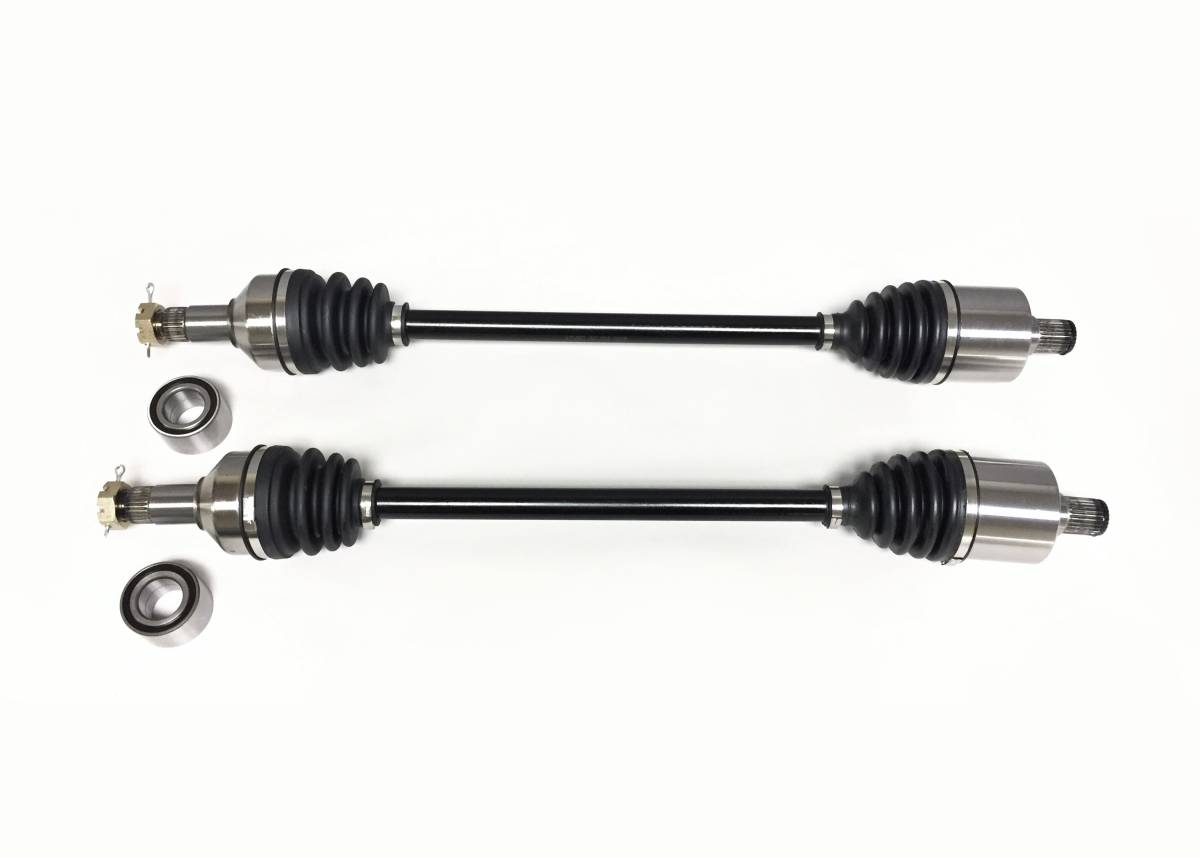

  • 2 CV Axles & 2 Wheel Bearings
  • Warranty

    1 year factory defect limited warranty

    Details

    • AC-324/AC-324/WB-1496/WB-1496
    • AC-324/AC-324/WB-1496/WB-1496
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 29.5 lbs.
    • W5.0000” x H10.0000” x L32.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
