Front CV Axle Pair for Arctic Cat ATV 0502-813, 1502-345, 0502-812

Location on vehicle: Front,Left,Right

(0) Reviews: Write first review
AC-145/AC-245

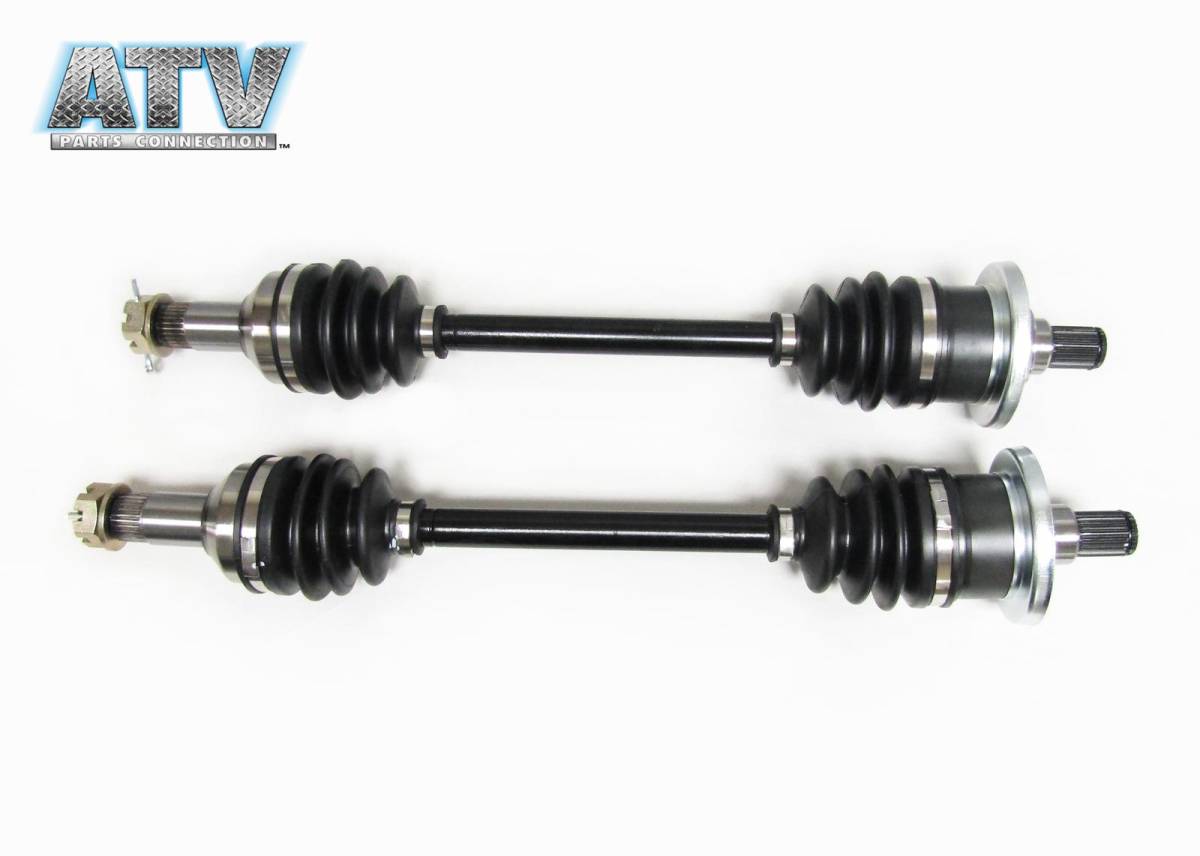

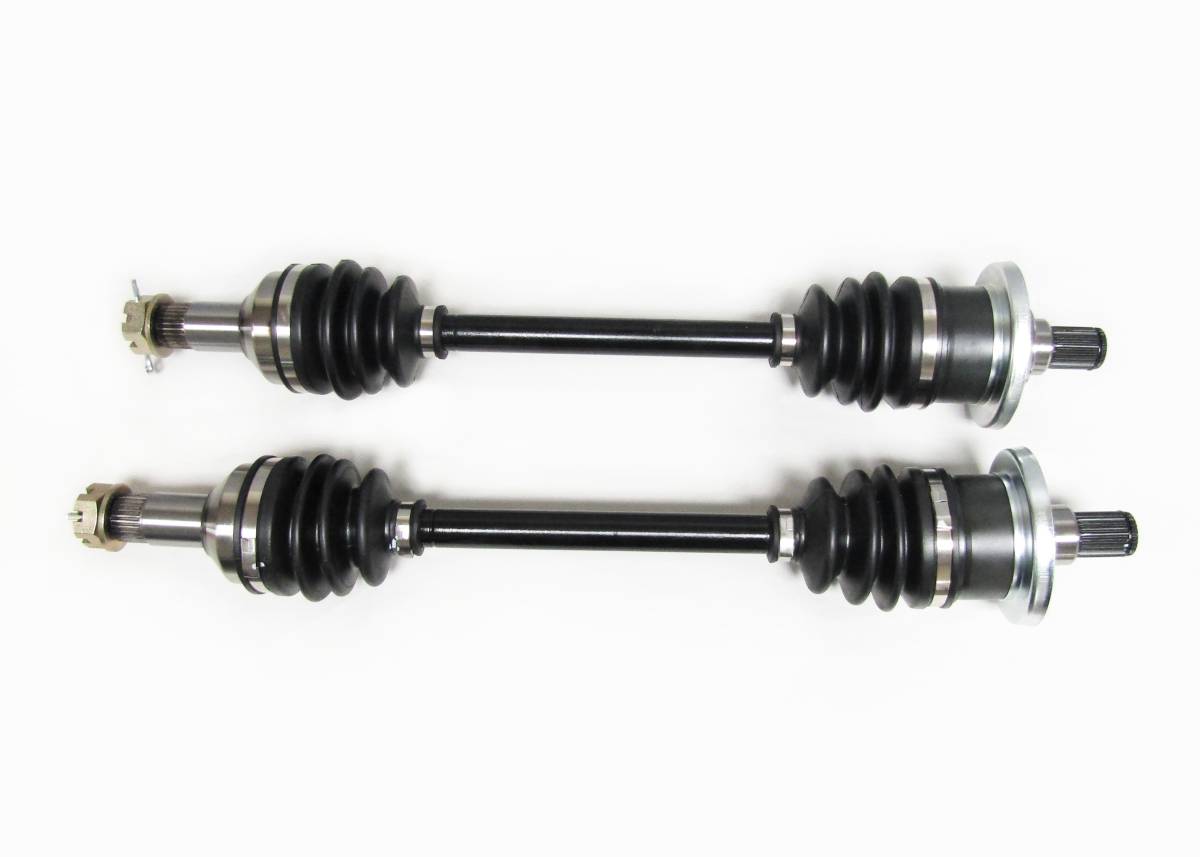

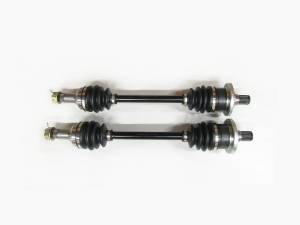

This is a pair of new Front CV axles for an Arctic Cat ATV.

They replace the following OEMs:

1502-344, 1502-345, 0502-812, 1502-874, 1502-873, 0502-813

Front, Left & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance

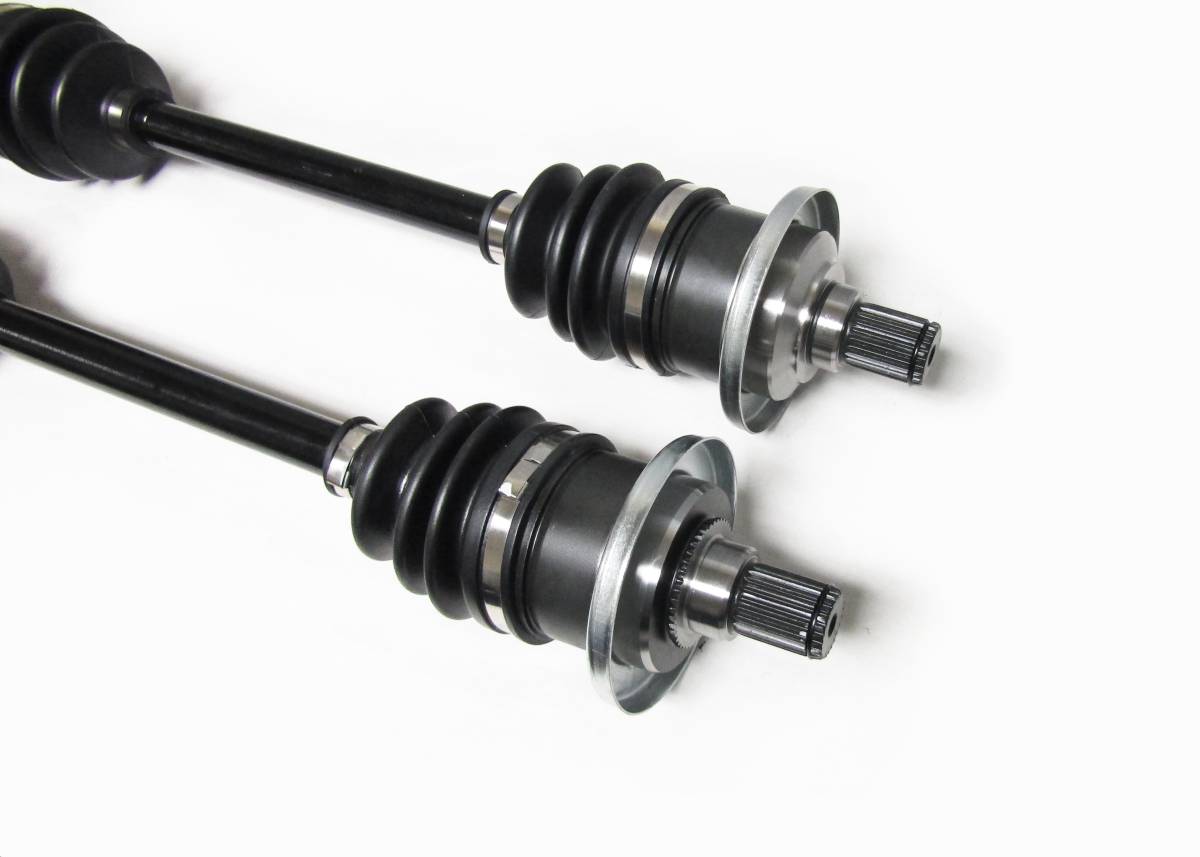

  • Inboard CV joint spline count: 24 (both)

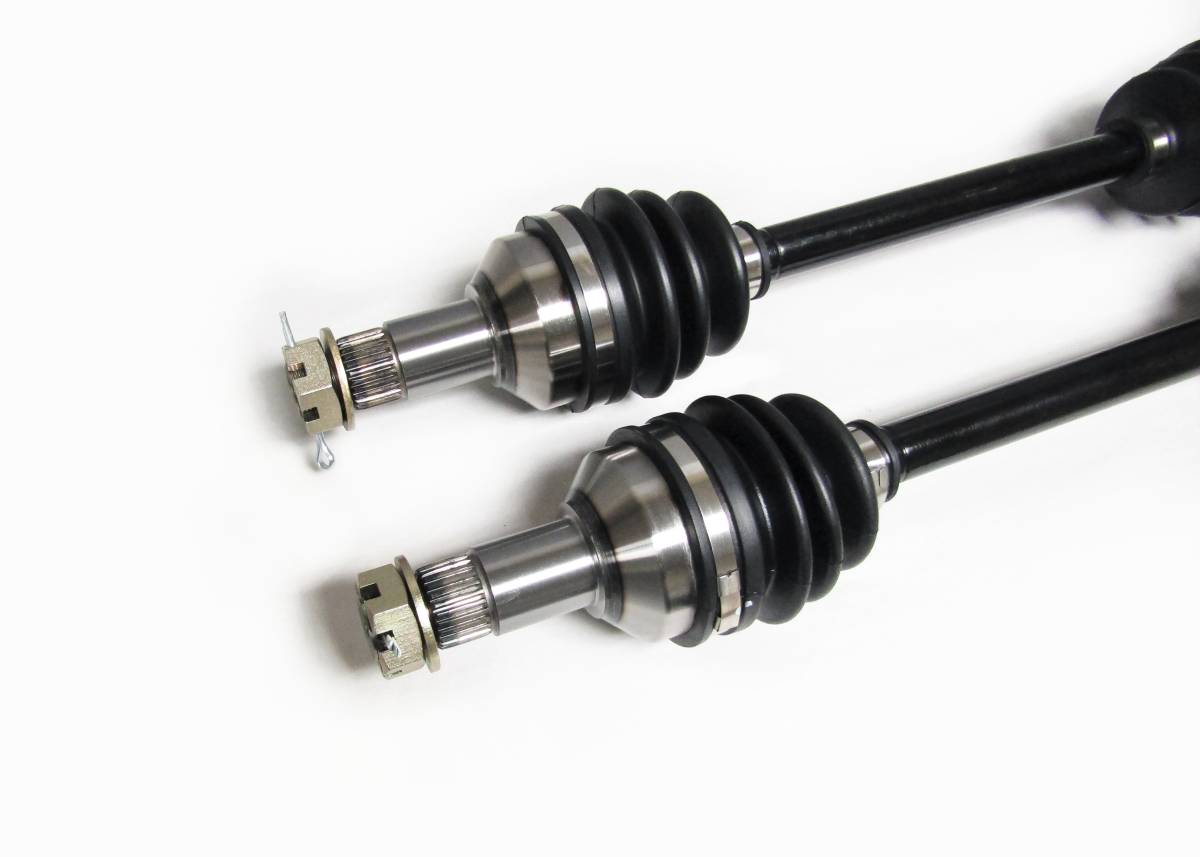

  • Outboard CV joint spline count: 27 (both)
  • Compressed overall axle length: Left 550 mm, Right 548 mm
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $119.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits FRONT, LEFT & RIGHT on the following Arctic Cat ATV models: 2006-2011 400, 2013-2014 TRV 400, 2009-2012 450, 2006-2014 500, 2009-2014 550, 2006-2011 650, 2006-2014 700, 2009-2011 1000. Please note these are not for Prowler or Mud Pro models.
  • Features stronger than OEM chromoly hardened steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Inner CV joint spline count: 24 each, Outer CV joint spline count: 27 each, Compressed overall axle length: L-550 R-548.
  • Replaces OE# 1502-345, 0502-813, 0502-812, 1502-344, 1502-874.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 2 axles

    • Application List

    YearMakeModelSubmodelNotes
    2011Arctic Cat4004x4 TRV
    2010Arctic Cat4004x4 TRV Automatic
    2009Arctic Cat4004x4 TRV Automatic
    2008Arctic Cat4004X4
    2008Arctic Cat4004x4 Automatic
    2007Arctic Cat4004X4
    2007Arctic Cat4004x4 Automatic
    2007Arctic Cat4004x4 LE Automatic
    2006Arctic Cat4004X4
    2006Arctic Cat4004x4 Automatic
    2006Arctic Cat4004x4 LE Automatic
    2006Arctic Cat4004x4 M4 Automatic
    2014Arctic Cat5504X4
    2014Arctic Cat5504x4 Limited
    2014Arctic Cat5504x4 TRV Limited
    2014Arctic Cat5504x4 TRV XT
    2014Arctic Cat5504x4 XT
    2013Arctic Cat5504x4 CR
    2013Arctic Cat5504x4 Limited
    2013Arctic Cat5504x4 TRV Limited
    2013Arctic Cat5504x4 TRV XT
    2013Arctic Cat5504x4 XT
    2012Arctic Cat5504x4 EFI
    2012Arctic Cat5504x4 GT EFI
    2012Arctic Cat5504x4 LTD EFI
    2012Arctic Cat5504x4 TRV Cruiser EFI
    2012Arctic Cat5504x4 TRV GT EFI
    2011Arctic Cat5504x4 H1 Automatic EFI
    2011Arctic Cat5504x4 H1 LTD EFI
    2011Arctic Cat5504x4 H1 TRV Automatic EFI
    2011Arctic Cat5504x4 H1 TRV Cruiser EFI
    2011Arctic Cat5504x4 H1 TRV GT EFI
    2010Arctic Cat5504x4 H1 Automatic EFI
    2010Arctic Cat5504x4 H1 LE Automatic EFI
    2010Arctic Cat5504x4 H1 TRV EFI
    2010Arctic Cat5504x4 TRV Automatic
    2010Arctic Cat5504x4 TRV GT
    2009Arctic Cat5504x4 Automatic
    2009Arctic Cat5504x4 LE Automatic
    2009Arctic Cat5504x4 M4 Automatic
    2009Arctic Cat5504x4 TRV Automatic
    2009Arctic Cat5504x4 TRV LE Automatic
    2011Arctic Cat550S4x4 H1 EFI
    2010Arctic Cat550S4x4 H1 EFI
    2010Arctic Cat550S4x4 H1 LTD EFI
    2010Arctic Cat550S4x4 H1 TRV GT EFI
    2010Arctic Cat7004x4 Automatic EFI
    2010Arctic Cat7004x4 H1 Automatic EFI
    2010Arctic Cat7004x4 H1 LE Automatic EFI
    2010Arctic Cat7004x4 H1 MudPro Automatic EFI
    2010Arctic Cat7004x4 H1 TBX Automatic EFI
    2010Arctic Cat7004x4 H1 TRV Automatic EFI
    2010Arctic Cat7004x4 H1 TRV Cruiser Automatic EFI
    2010Arctic Cat7004x4 Super Duty Diesel
    2010Arctic Cat7004x4 TRV GT
    2009Arctic Cat7004x4 Automatic EFI
    2009Arctic Cat7004x4 H1 Automatic EFI
    2009Arctic Cat7004x4 H1 LE Automatic EFI
    2009Arctic Cat7004x4 H1 MudPro Automatic EFI
    2009Arctic Cat7004x4 H1 SE Automatic EFI
    2009Arctic Cat7004x4 H1 TRV Automatic EFI
    2009Arctic Cat7004x4 TRV Cruiser EFI
    2008Arctic Cat7004x4 Automatic Diesel
    2008Arctic Cat7004x4 Automatic EFI
    2008Arctic Cat7004x4 H1 SE Automatic EFI
    2008Arctic Cat7004x4 M4 Automatic EFI
    2008Arctic Cat7004x4 TRV Cruiser Automatic EFI
    2008Arctic Cat7004x4 TRV LE Automatic EFI
    2007Arctic Cat7004x4 Automatic Diesel
    2007Arctic Cat7004x4 Automatic EFI
    2007Arctic Cat7004x4 LE Automatic EFI
    2006Arctic Cat7004x4 SE EFI
    2010Arctic Cat10004x4 H2 MudPro Automatic EFI
    2010Arctic Cat10004x4 TRV Automatic EFI
    2010Arctic Cat10004x4 TRV Cruiser
    2009Arctic Cat10004x4 H2 TRV Cruiser EFI
    2009Arctic Cat10004x4 TRV
    2010Arctic CatThunder Cat4x4 Automatic EFI
    2010Arctic CatThunder Cat4x4 LE Automatic EFI
    2009Arctic CatThunder Cat4x4 SE Automatic EFI
    2008Arctic CatThunder Cat4x4 Automatic
    2008Arctic CatThunder Cat4x4 H2 SE Automatic EFI

    Details

    • AC-145/AC-245
    • AC-145/AC-245
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 20.0 lbs.
    • W10.0000” x H5.0000” x L31.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
