CV Axle & Wheel Bearing Kit for Arctic Cat 400 & 500 FIS 4x4 2003-2004

Location on vehicle: Rear,Left,Right

AC-244/WB-1434

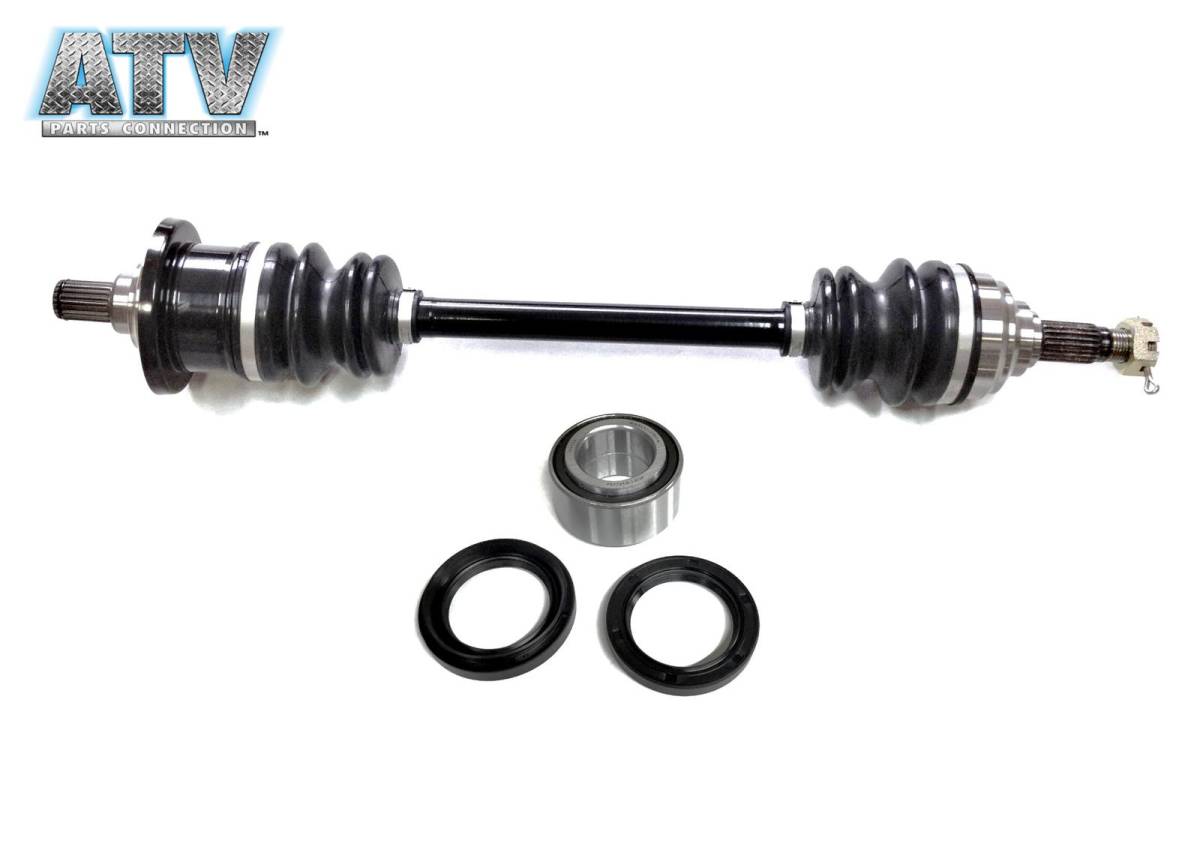

This is a new Front or Rear CV axle & wheel bearing/seal kit for an Arctic Cat ATV.

They fit the following 4x4 models:

2003-2004 ... 400 FIS MT/AT, TBX 400

2003-2004 ... 500 FIS MT/AT, TBX 500, & TRV 500

Front or Rear, Left or Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly hardened steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear and puncture resistance

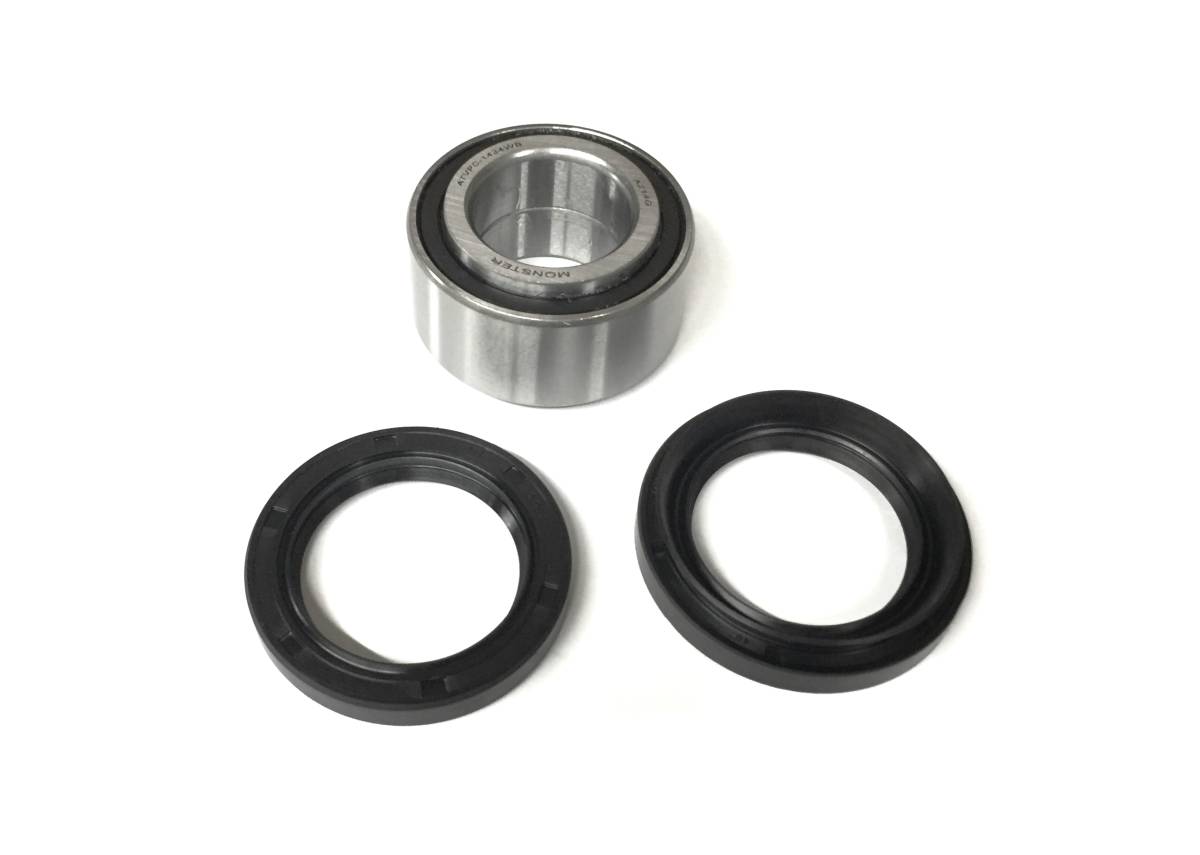

  • High speed bearing manufactured for long life
  • Double lip seals made to keep grease in and dirt out
  • Inboard CV joint spline count: 21
  • Outboard CV joint spline count: 21
  • Compressed overall axle length: 548 mm
  • Replaces Arctic Cat OEM # (axle) 0402-907, 0502-544, 1502-442, (bearing & seals), 0402-275, 0402-089, 0402-069
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $89.99
Qty:
Free ground shipping for lower 48 states ( some exclusions may apply)

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all 4 positions (front, rear, left, right) on the 2003-2004 Arctic Cat 400 FIS & 500 FIS 4x4.
  • Features a stronger than OEM chromoly forged steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seals made to keep grease in and dirt out.
  • Replaces Arctic Cat OEM # (axle) 0402-907, 0502-544, 1502-442, (bearing & seals), 0402-275, 0402-089, 0402-069. Compressed Length: 548 mm, Inboard Spline Count: 21, Outboard Spline Count: 21.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

  • What's In The Box

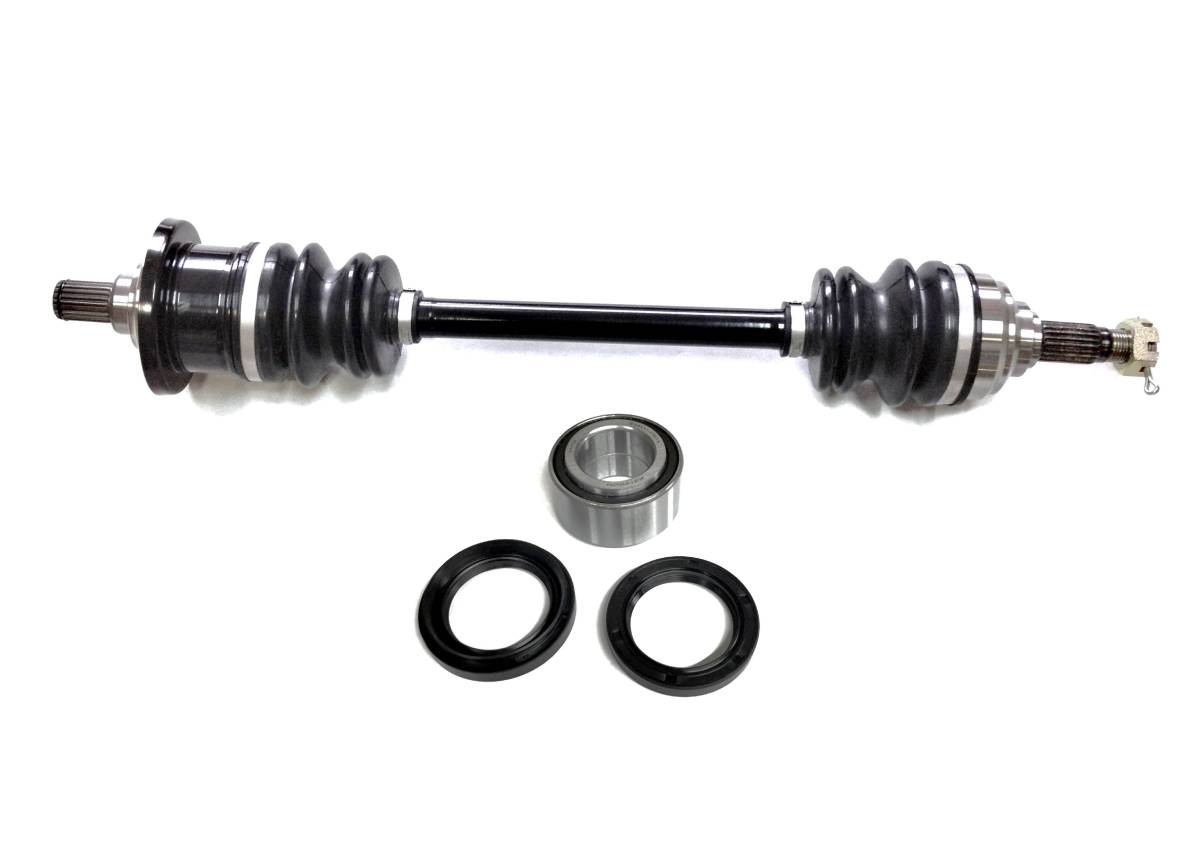

  • 1 CV axle & 1 wheel bearing kit
  • Application List

    YearMakeModelSubmodelNotes
    2004Arctic Cat4004x4 Automatic
    2004Arctic Cat4004x4 MRP
    2004Arctic Cat4004x4 MRP Automatic
    2004Arctic Cat4004x4 TBX Automatic
    2003Arctic Cat4004x4 Automatic
    2003Arctic Cat4004x4 Automatic EFI
    2003Arctic Cat4004x4 EFI
    2003Arctic Cat4004x4 MRP
    2003Arctic Cat4004x4 MRP Automatic
    2004Arctic Cat5004X4
    2004Arctic Cat5004x4 Automatic
    2004Arctic Cat5004x4 MRP
    2004Arctic Cat5004x4 MRP Automatic
    2004Arctic Cat5004x4 TBX Automatic
    2004Arctic Cat5004x4 TRV Automatic
    2003Arctic Cat5004X4
    2003Arctic Cat5004x4 Automatic
    2003Arctic Cat5004x4 Automatic EFI
    2003Arctic Cat5004x4 EFI
    2003Arctic Cat5004x4 MRP
    2003Arctic Cat5004x4 MRP Automatic
    2003Arctic Cat5004x4 TBX Automatic
    2003Arctic Cat5004x4 TRV Automatic

    Details

    • AC-244/WB-1434
    • AC-244/WB-1434
    • ATV Parts Connection
    • Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 10.2 lbs.
    • W5.0000” x H5.0000” x L23.5000”
    • Free ground shipping for lower 48 states ( some exclusions may apply)
    • Free Shipping - Same Day If Ordered Before 3 EST
