Rear Right Axle & Wheel Bearing for Yamaha Grizzly 660 2003-2008 ATV

Location on vehicle: Rear,Right

(0) Reviews: Write first review
WB-1496/YA-302

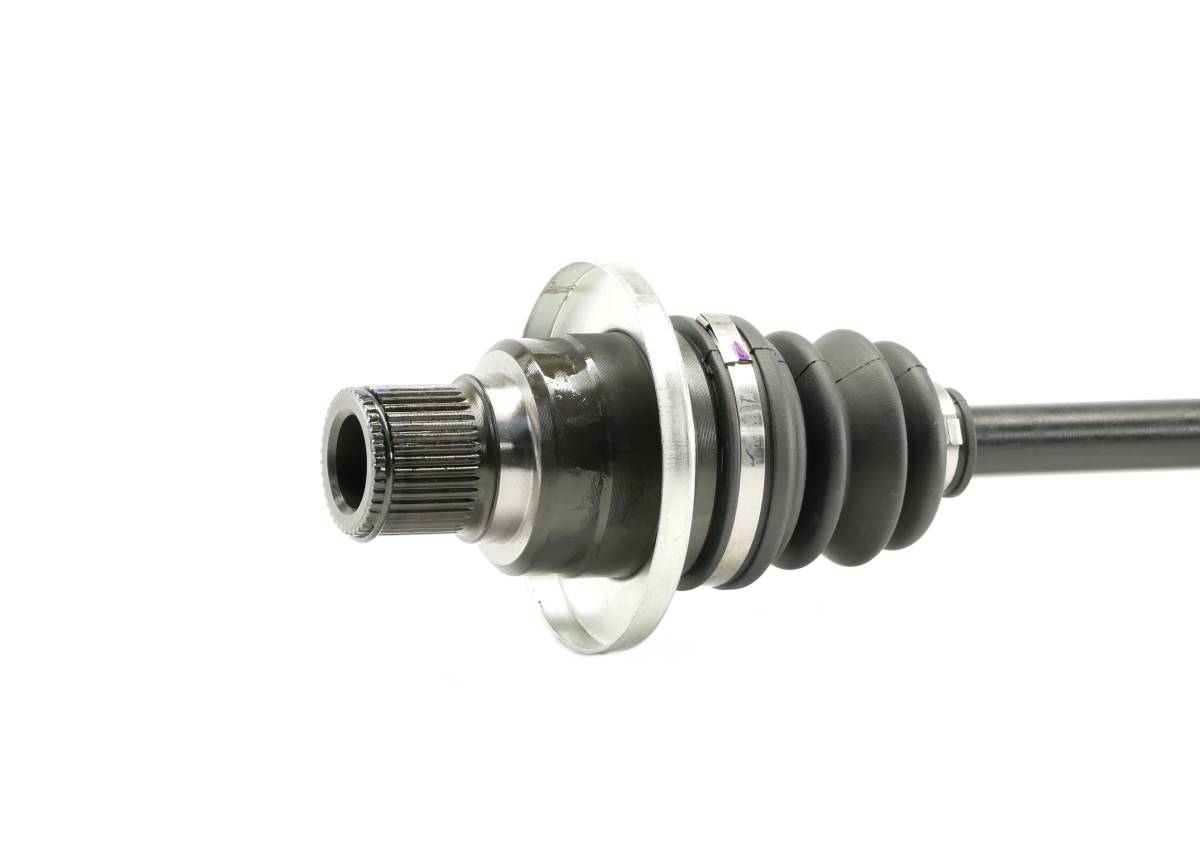

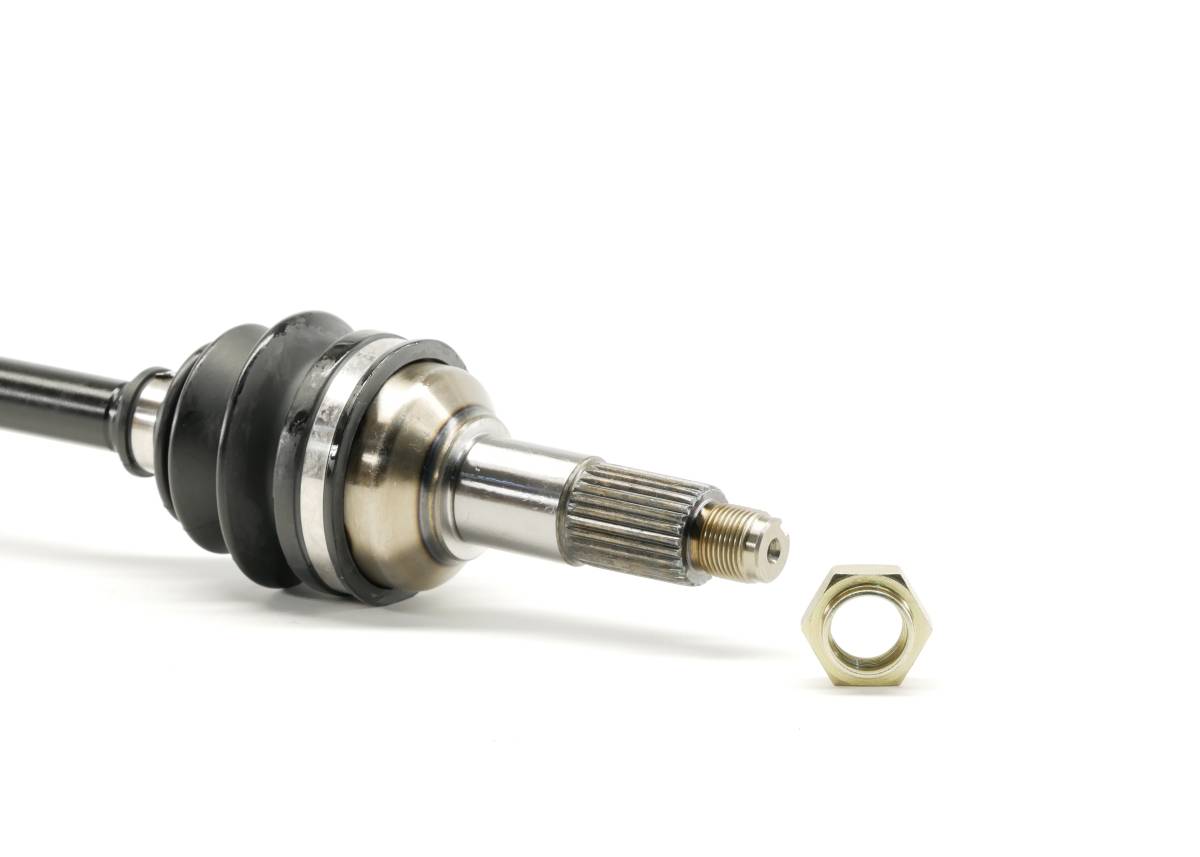

.auto-style1 { font-family: Arial, Helvetica, sans-serif; } .auto-style2 { font-family: Arial, Helvetica, sans-serif; font-size: medium; } .auto-style3 { font-size: large; } .auto-style4 { font-family: Arial, Helvetica, sans-serif; font-size: large; } .auto-style5 { font-size: medium; } This is a new CV axle with wheel bearing for a Yamaha Grizzly ATV

This axle and wheel bearings will fit the following 4x4/em> applications:

2003-2008 ..... Grizzly 660

Rear, Right

*/em>Not intended for use in lifted vehicles

Product features:

  • IIncluded: 1 rear right axle, 1 wheel bearing
  • Stronger than OEM chromoly forged steel axle bar/em>
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: 39
  • Outboard CV joint spline count: 27
  • Compressed overall axle length: 502 mm,
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $82.99
Qty:
Free Ground Shipping

Warranty

1 year factory defect limited warranty

Product Notes

  • Fits all Grizzly 660 models from 2003-2008.
  • Features a stronger than OEM chromoly hardened steel axle bar. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • High speed bearing manufactured for long life. Double lip seal made to keep grease in and dirt out.
  • Inner splines: 39, Outer splines: 27 Inner, Compressed axle length: 502 mm. Replaces OE # 5KM-2530T-11-00, 5KM-2530V-10-00, 5KM-2530T-12-00, 5KM-2530V-10-00, 93305-00601-00, 93305-00602-00.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

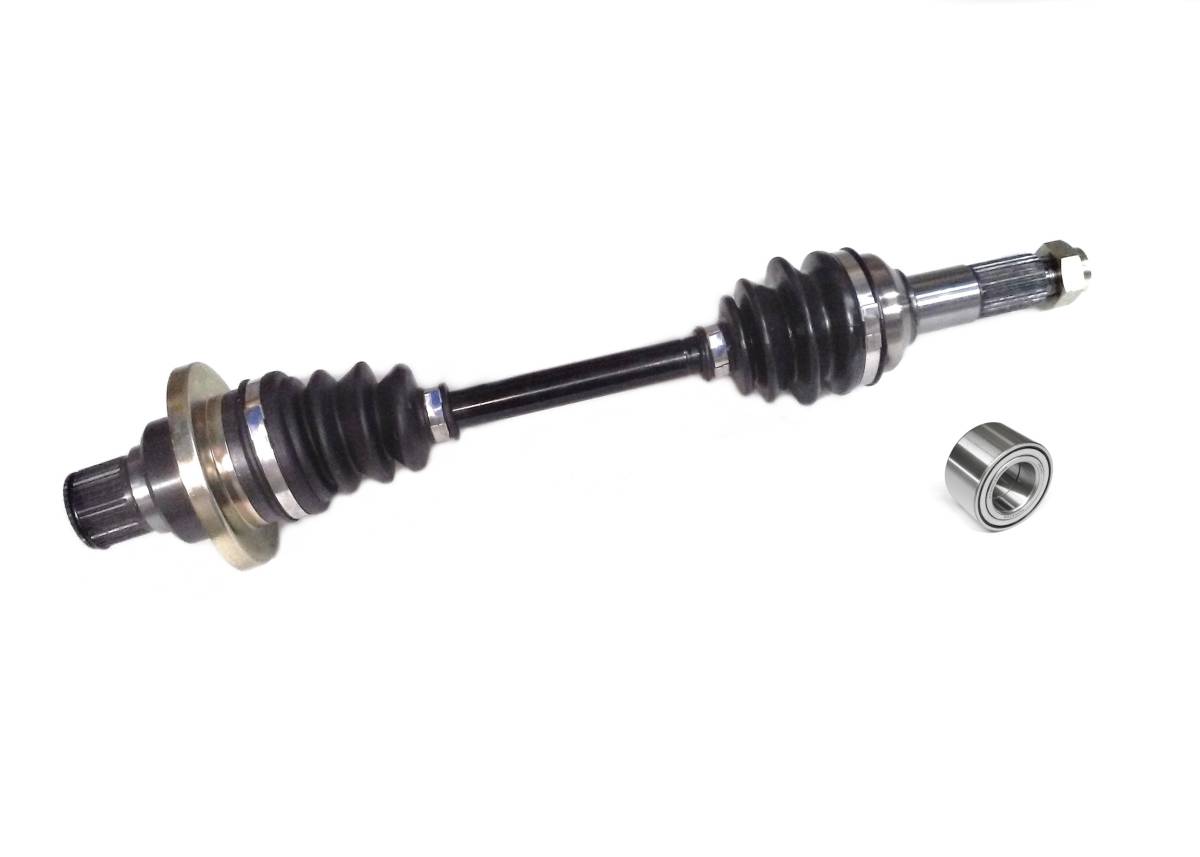

  • 1 CV Axle & 1 Wheel Bearing

    • Application List

    YearMakeModelSubmodelNotes
    2008YamahaGrizzly 660YFM660FA 4x4
    2008YamahaGrizzly 660YFM660FG 4x4
    2008YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2007YamahaGrizzly 660YFM660FG 4x4
    2007YamahaGrizzly 660YFM660FGH 4x4 Hunter Edition
    2006YamahaGrizzly 660YFM660FA 4x4
    2006YamahaGrizzly 660YFM660FAH 4x4 Hardwoods Hunter Edition
    2006YamahaGrizzly 660YFM660FAH 4x4 Outdoorsman Edition
    2006YamahaGrizzly 660YFM660FAHD 4x4 Ducks Unlimited Edition
    2006YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2005YamahaGrizzly 660YFM660FA 4x4
    2005YamahaGrizzly 660YFM660FAH 4x4 Hunter Edition
    2005YamahaGrizzly 660YFM660FAHW 4x4 Wetlands Hunter Edition
    2005YamahaGrizzly 660YFM660FASE 4x4 Special Edition
    2004YamahaGrizzly 660YFM660F 4x4
    2004YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2004YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition
    2004YamahaGrizzly 660YFM660FLE 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660F 4x4
    2003YamahaGrizzly 660YFM660F 4x4 Limited Edition
    2003YamahaGrizzly 660YFM660FH 4x4 Hardwoods Hunter Edition
    2003YamahaGrizzly 660YFM660FHW 4x4 Wetlands Hunter Edition

    Details

    • WB-1496/YA-302
    • WB-1496/YA-302
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 10.1 lbs.
    • W5.0000” x H5.0000” x L39.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
