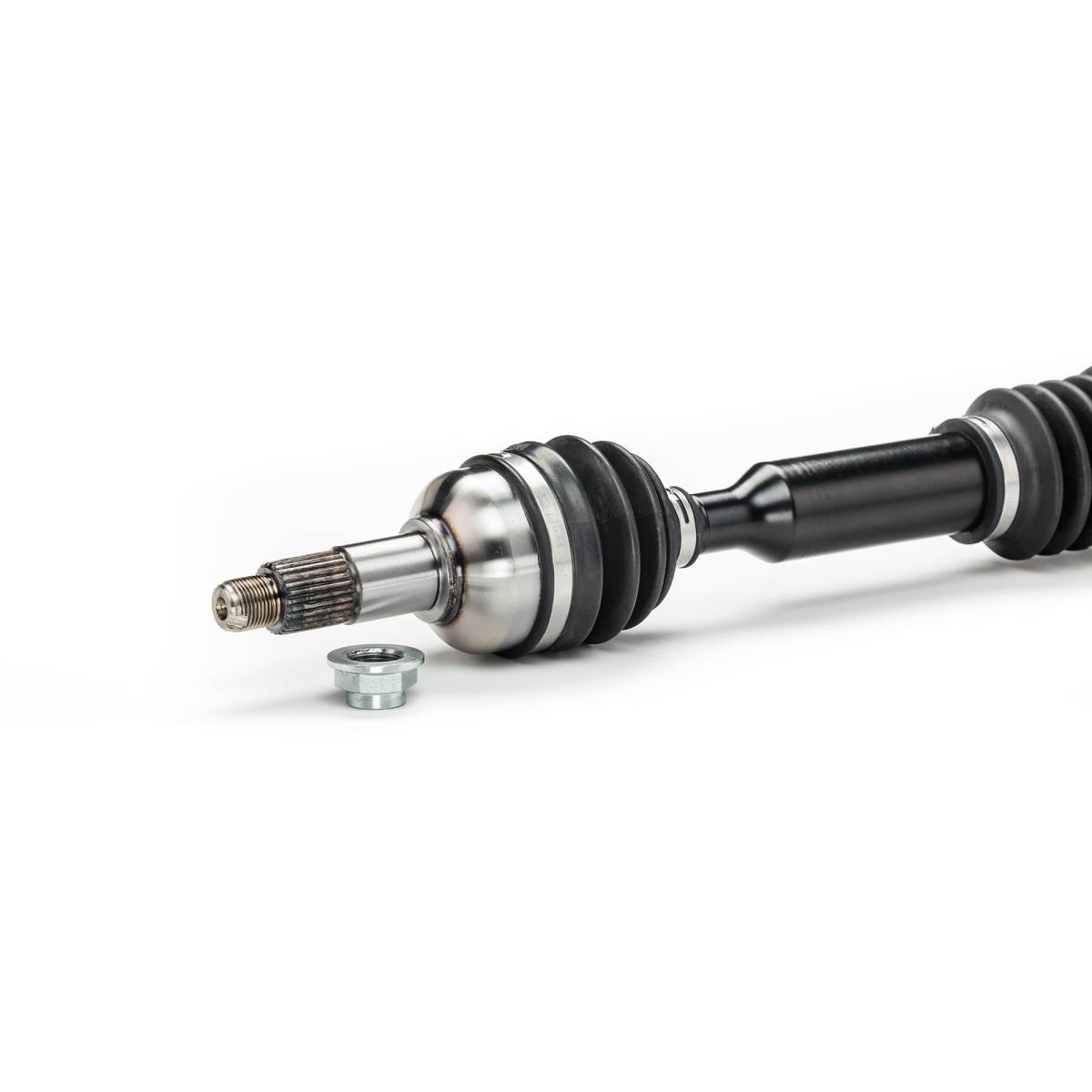

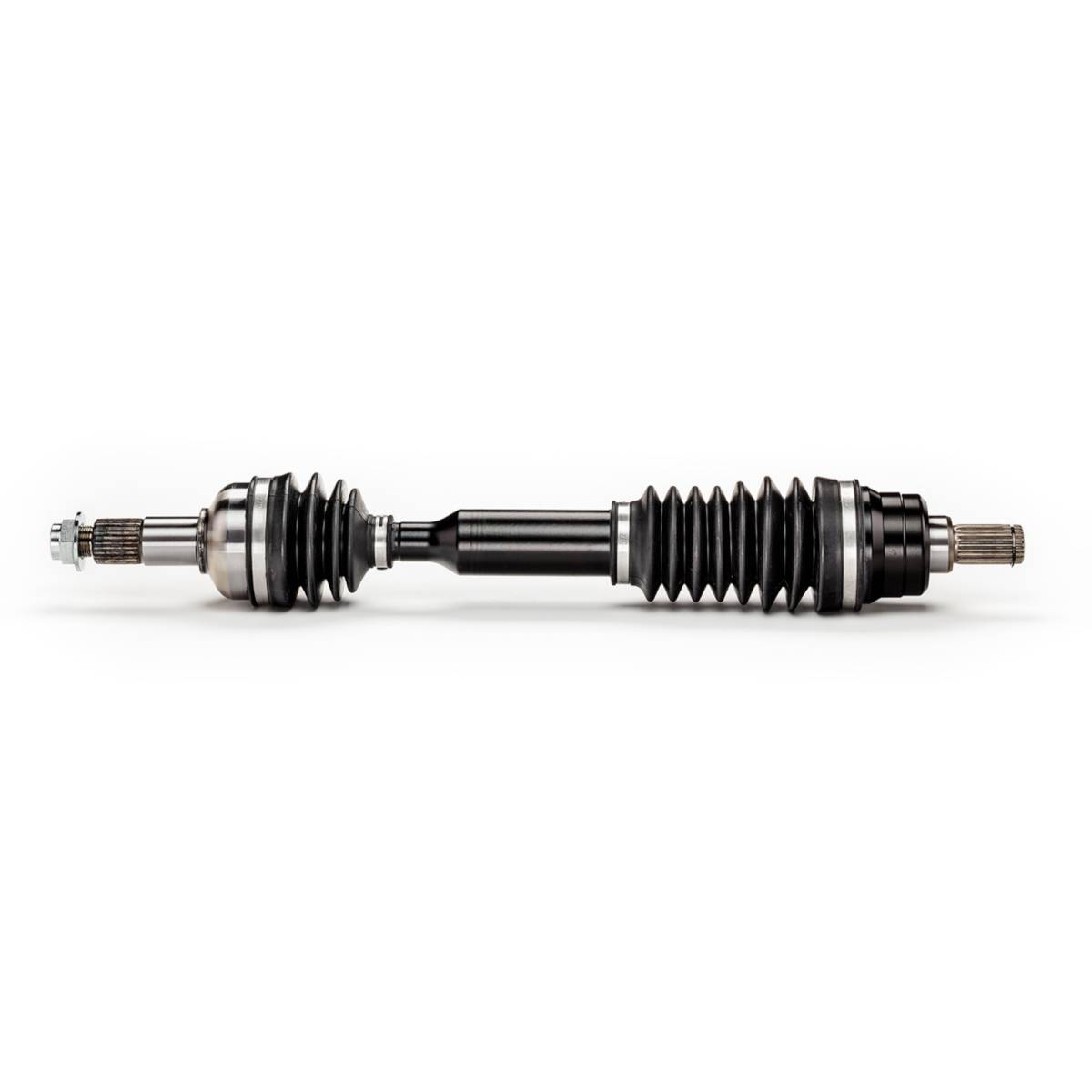

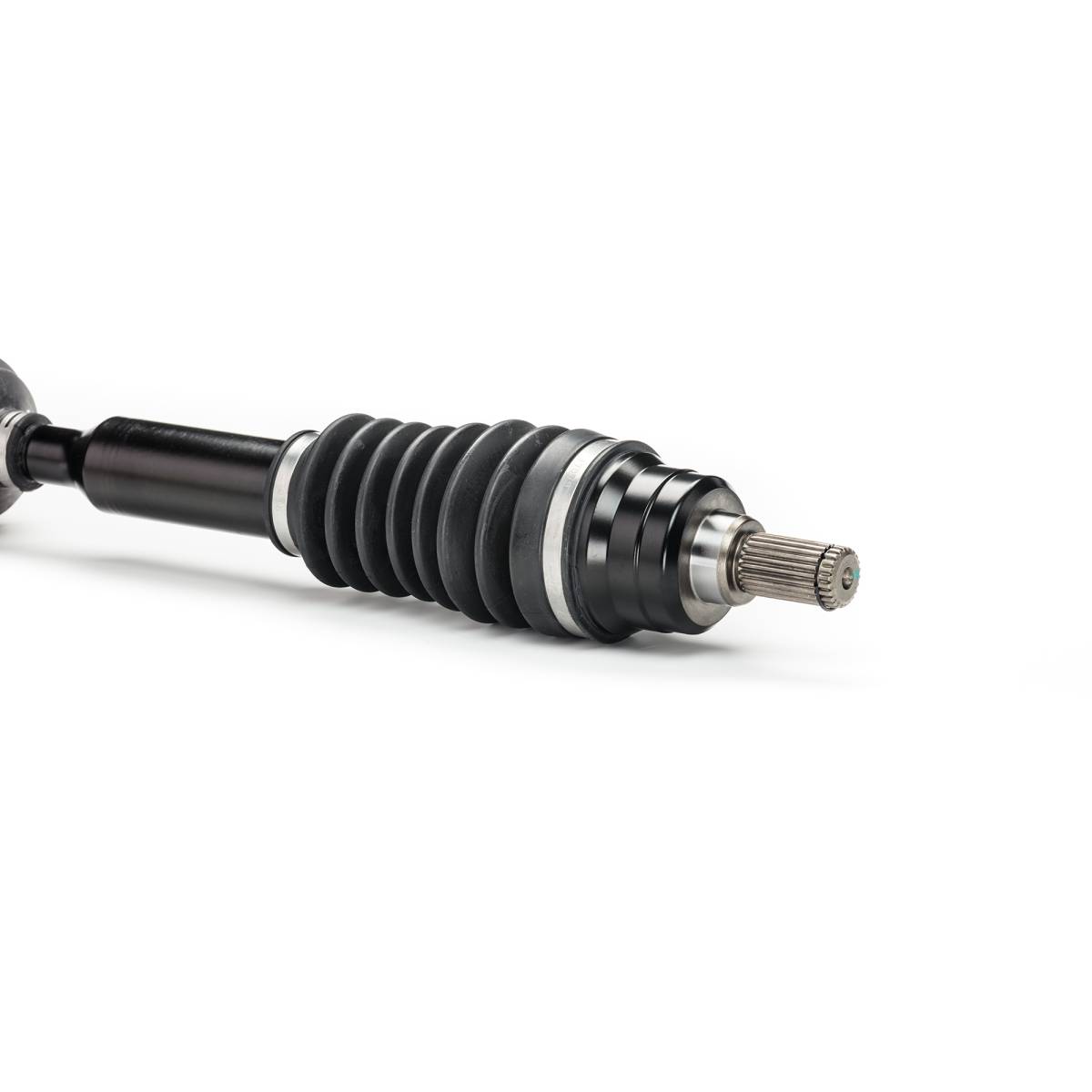

Monster Axles Rear Axle for Yamaha Kodiak 450 700 & Grizzly 550 700, XP Series

Location on vehicle: Rear,Left,Right

YA-331XP
The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride.

A high-performance axle that can fit stock length all the way up to a 4" lift kit.

Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.

More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). The telescoping shaft provides 60 mm of travel (twice what you get from an OEM axle).

Serviceable in the field - Boots rip, it happens. Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need to ship the whole axle back to us.

Built from a unique, stronger than OEM chromoly-forged steel axle shaft. Fitted with heavy duty boots for greater resistance to wear & punctures.

Contact us to inquire about replacement parts.

Not Available
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $179.95

Application List

YearMakeModelSubmodelNotes
2014YamahaGrizzly 550YFM550D 4x4 FI
2014YamahaGrizzly 550YFM550DHH 4x4 Hunter Edition FI
2014YamahaGrizzly 550YFM550P 4x4 FI EPS
2014YamahaGrizzly 550YFM550PHH 4x4 Hunter Edition FI EPS
2013YamahaGrizzly 550YFM550FG 4x4 FI
2013YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2013YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2013YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2012YamahaGrizzly 550YFM550FG 4x4 FI
2012YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2012YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2012YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2011YamahaGrizzly 550YFM550FG 4x4 FI
2011YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2011YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2011YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2010YamahaGrizzly 550YFM550FG 4x4 FI
2010YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2010YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2010YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2009YamahaGrizzly 550YFM550FG 4x4 FI
2009YamahaGrizzly 550YFM550FGH 4x4 Hunter Edition FI
2009YamahaGrizzly 550YFM550FGP 4x4 FI EPS
2009YamahaGrizzly 550YFM550FGPH 4x4 Hunter Edition FI EPS
2009YamahaGrizzly 550YFM550FGPSE 4x4 Special Edition FI EPS
2013YamahaGrizzly 700YFM700FG 4x4 FI
2013YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2013YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2013YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2013YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2012YamahaGrizzly 700YFM700FG 4x4 FI
2012YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2012YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2012YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2012YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2011YamahaGrizzly 700YFM700FG 4x4 FI
2011YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2011YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2011YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2011YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2010YamahaGrizzly 700YFM700FG 4x4 FI
2010YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2010YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2010YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2010YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2009YamahaGrizzly 700YFM700FG 4x4 FI
2009YamahaGrizzly 700YFM700FGH 4x4 Hunter Edition FI
2009YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2009YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI EPS
2009YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI EPS
2009YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI EPS
2008YamahaGrizzly 700YFM700FG 4x4 FI
2008YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2008YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
2008YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
2007YamahaGrizzly 700YFM700FG 4x4 Exploring Edition FI
2007YamahaGrizzly 700YFM700FGP 4x4 FI
2007YamahaGrizzly 700YFM700FGP 4x4 FI EPS
2007YamahaGrizzly 700YFM700FGPDU 4x4 Ducks Unlimited Edition FI
2007YamahaGrizzly 700YFM700FGPH 4x4 Hunter Edition FI
2007YamahaGrizzly 700YFM700FGPOH 4x4 Outdoorsman Edition FI
2007YamahaGrizzly 700YFM700FGPSE 4x4 Special Edition FI
2021YamahaKodiak 450YFM450 4x4 Auto
2021YamahaKodiak 450YFM450 4x4 Auto EPS
2021YamahaKodiak 450YFM450 4x4 Auto EPS SE
2020YamahaKodiak 450YFM450 4x4 Auto
2020YamahaKodiak 450YFM450 4x4 Auto EPS
2020YamahaKodiak 450YFM450 4x4 Auto EPS SE
2019YamahaKodiak 450YFM450 4x4 Auto
2019YamahaKodiak 450YFM450 4x4 Auto EPS
2019YamahaKodiak 450YFM450 4x4 Auto EPS SE
2018YamahaKodiak 450YFM450 4x4 Auto
2018YamahaKodiak 450YFM450 4x4 Auto EPS
2021YamahaKodiak 700YFM700K 4x4 FI
2021YamahaKodiak 700YFM700KP 4x4 FI EPS
2021YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2020YamahaKodiak 700YFM700K 4x4 FI
2020YamahaKodiak 700YFM700KP 4x4 FI EPS
2020YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2019YamahaKodiak 700YFM700K 4x4 FI
2019YamahaKodiak 700YFM700KP 4x4 FI EPS
2019YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2018YamahaKodiak 700YFM700K 4x4 FI
2018YamahaKodiak 700YFM700KP 4x4 FI EPS
2018YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2017YamahaKodiak 700YFM700K 4x4 FI
2017YamahaKodiak 700YFM700KP 4x4 FI EPS
2017YamahaKodiak 700YFM700KPSE 4x4 Special Edition FI EPS
2016YamahaKodiak 700KYFM700K 4x4 FI
2016YamahaKodiak 700KYFM700KP 4x4 FI EPS
2016YamahaKodiak 700KYFM700KPSE 4x4 Special Edition FI EPS

Product Notes

  • Fits REAR, LEFT or RIGHT on the following Yamaha ATV models: 2009-2014 Grizzly 550, 2007-2013 Grizzly 700, 2018-2021 Kodiak 450, & Kodiak 700 2016-2021.
  • The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit.
  • Key to its performance - The plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause most joints to bind and break. And should you need to replace a broken joint or boot, the CV joint can be easily removed for service without specialized tools.
  • More angle, more plunge - With its inner CV joint designed like an outer joint, it can achieve a 45 degree angle of operation (OEM axles can only operate up to around 23). Plus you have a telescoping shaft that provides and additional 60 mm of travel.
  • Replaces OEM # 3B4-2510F-00-00, 3B4-2518E-10-00, 3B4-2530V-00-00, 28P-2510F-00-00, 28P-2518E-10-00. Compressed length - 530 mm, Inboard spline count - 23, Outboard spline count - 27. Comes with a 1 year limited warranty (excluding torn boots)

  • What's In The Box

  • 1 axle
  • Warranty

    1 year, one-time repair/ replace. Buyer pays shipping

    Product Videos

    Details

    • YA-331XP
    • YA-331XP
    • 87958600001
    • MONSTER AXLES
    • Temporarily Not Available
    • New

    Shipping Information

    • Item Requires Shipping
    • 12.5 lbs.
    • W5.0000” x H5.0000” x L24.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
