CV Axle Set for Arctic Cat 300 1998-2001 & 250 2001 4x4

Location on vehicle: Front,Rear,Left,Right

(0) Reviews: Write first review
AC-118/AC-218/AC-304/AC-304

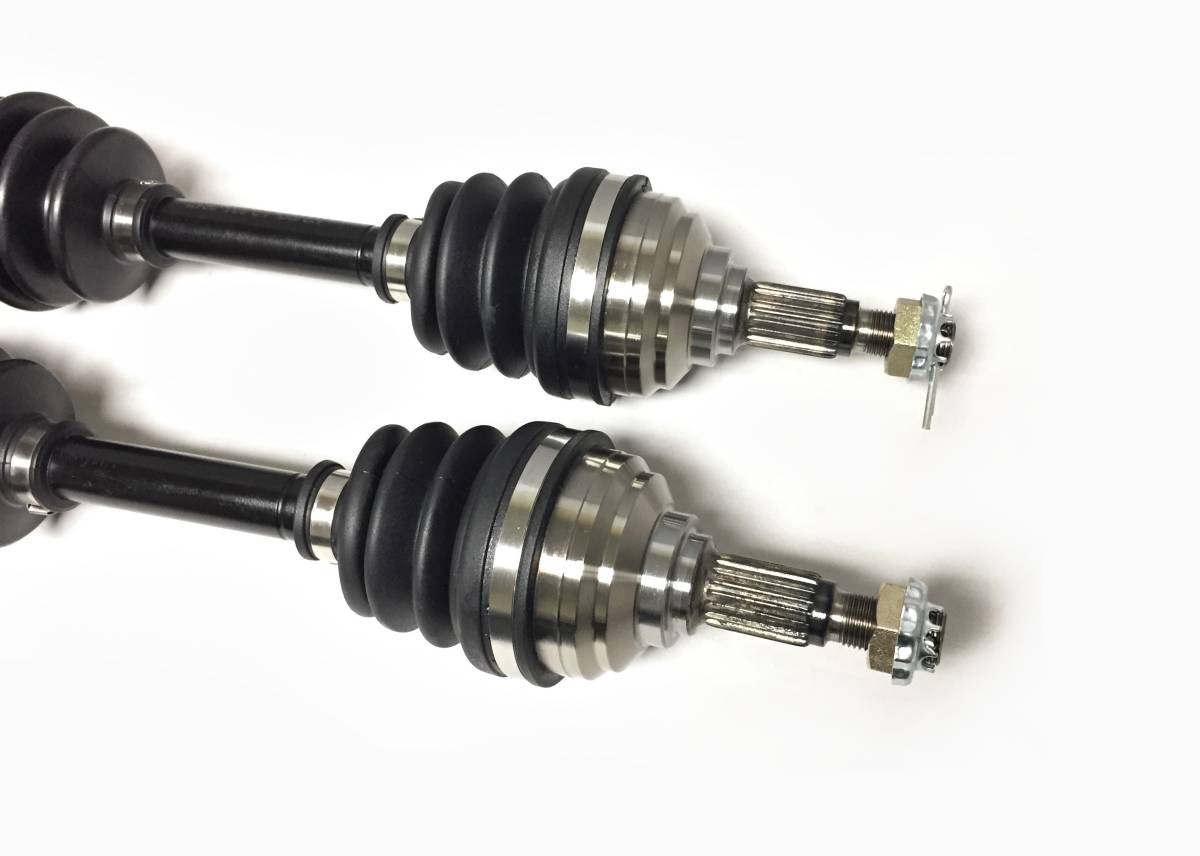

This is a set of new Front & Rear CV axles for an Arctic Cat ATV.

They fit the following 4x4 models:

1998-2001 ... 300

2001 ... 500

Front & Rear, Lef & Right

*Not intended for use in lifted vehicles

Product features:

  • Stronger than OEM chromoly forged steel axle bar
  • Greased with a moly based grease to provide superior joint lubrication
  • Fitted with neoprene CV boots for added wear & puncture resistance
  • Inboard CV joint spline count: Fronts: 20, Rears: 22
  • Outboard CV joint spline count: Fronts: 21, Rears: 21
  • Compressed overall axle length (mm): FL: 417, FR: 456, RL: 436, RR: 436
Shipping: Free Shipping - Same Day If Ordered Before 3 EST
Pricing: $247.99
Qty:
Free Ground Shipping

Application List

YearMakeModelSubmodelNotes
2001Arctic Cat2504X4
2001Arctic Cat3004X4
2000Arctic Cat3004X4
1999Arctic Cat3004X4
1998Arctic Cat3004X4

Product Notes

  • Fits REAR, LEFT & RIGHT: 1998-2001 Arctic Cat 300 4x4, & 2001 Arctic Cat 250 4x4
  • Features stronger than OEM chromoly forged steel axle bars * Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance.
  • Compressed overall axle length (mm): FL: 417, FR: 456, RL: 436, RR: 436, Inboard CV joint spline count: Fronts: 20, Rears: 22, Outboard CV joint spline count: Fronts: 21, Rears: 21.
  • Replaces OE # (fronts) 0402-249 1502-441 0402-179 1502-440, (rears) 0402-171, 0402-777, 1402-002, 1502-529.
  • Comes with a 1 year warranty (excluding torn boots & use on lifted vehicles). Lift kit voids warranty, parts are not designed to be used on lifted or modified vehicles.

    • What's In The Box

  • 4 axles

    • Warranty

    1 year factory defect limited warranty

    Details

    • AC-118/AC-218/AC-304/AC-304
    • AC-118/AC-218/AC-304/AC-304
    • CUSTOM
    • ATV Parts Connection
    • Available
    • New

    Categories

    Shipping Information

    • Item Requires Shipping
    • 34.6 lbs.
    • W10.0000” x H10.0000” x L25.0000”
    • Free Ground Shipping
    • Free Shipping - Same Day If Ordered Before 3 EST
