Monster Axles Set with 2" Lift Kit for Yamaha Grizzly 700 2016-2022, XP Series
Location on vehicle: Front,Rear,Left,Right
It will fit the following models:
2016-2022 Grizzly 700 (including EPS, FI, SE, Hunter)
Tire Fitment: up to 28"
Please note this is a general guide for tire fitment is not guaranteed
Always measure and verify your clearance before buying larger tires
Bundle features:

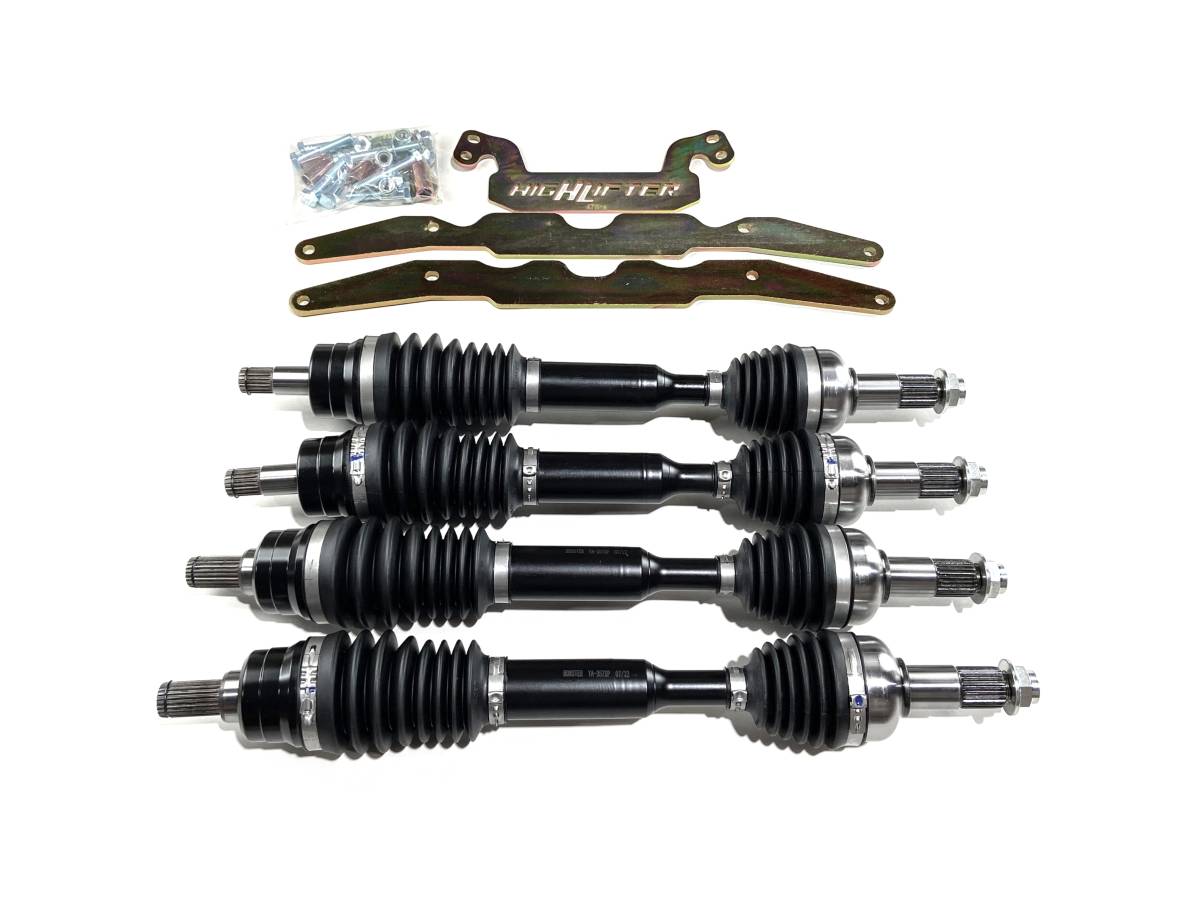

- Includes: Monster Axles™ XP Series axles (4) and a 2" High Lifter Signature Series lift kit
- High Lifter 2" lift kit made with zinc plating for long life in rugged conditions
- Lift kit installation hardware and detailed step by step photo instructions included
- Compressed axle lengths: Fronts - 536 mm, Rears - 553 mm
- Inboard axle splines: Fronts - 21, Rears - 23, Outboard axle splines: Fronts - 27, Rears - 27

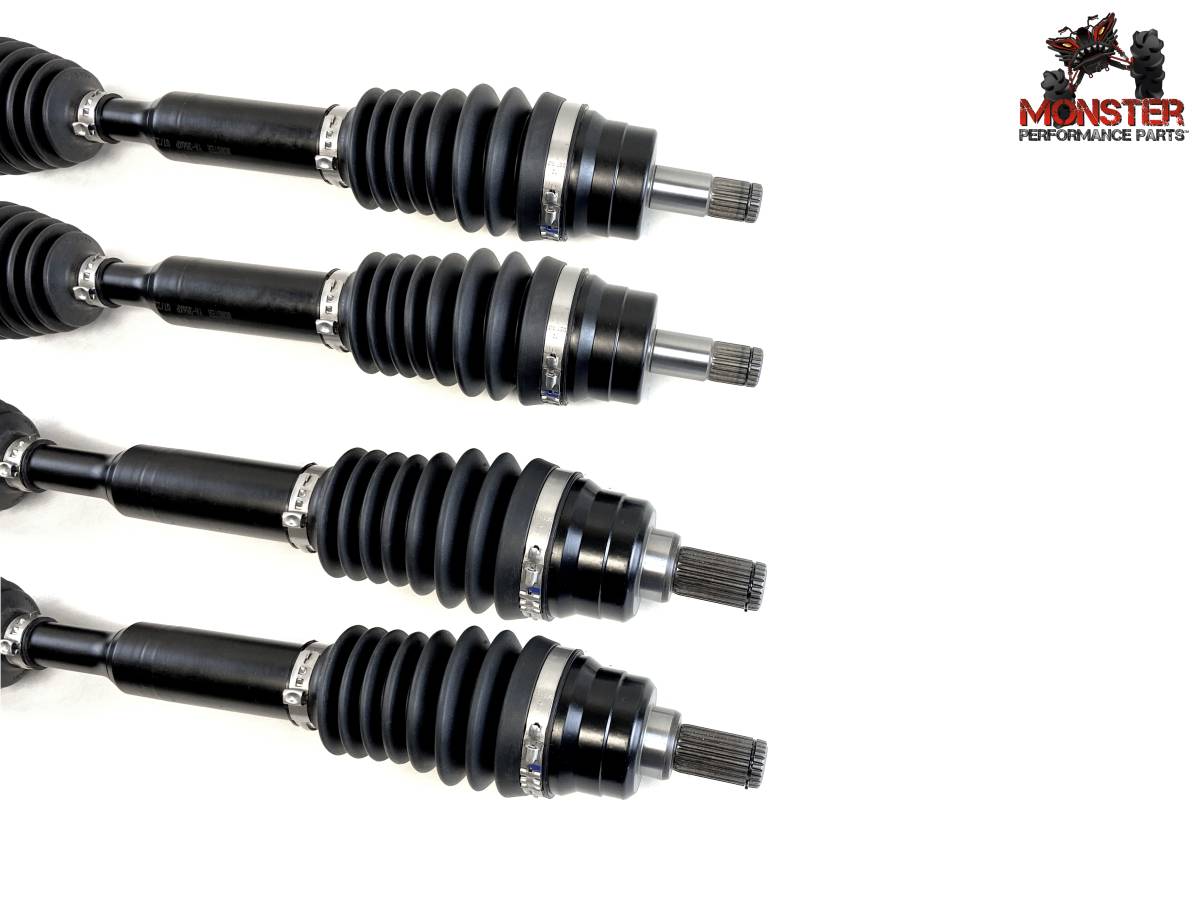

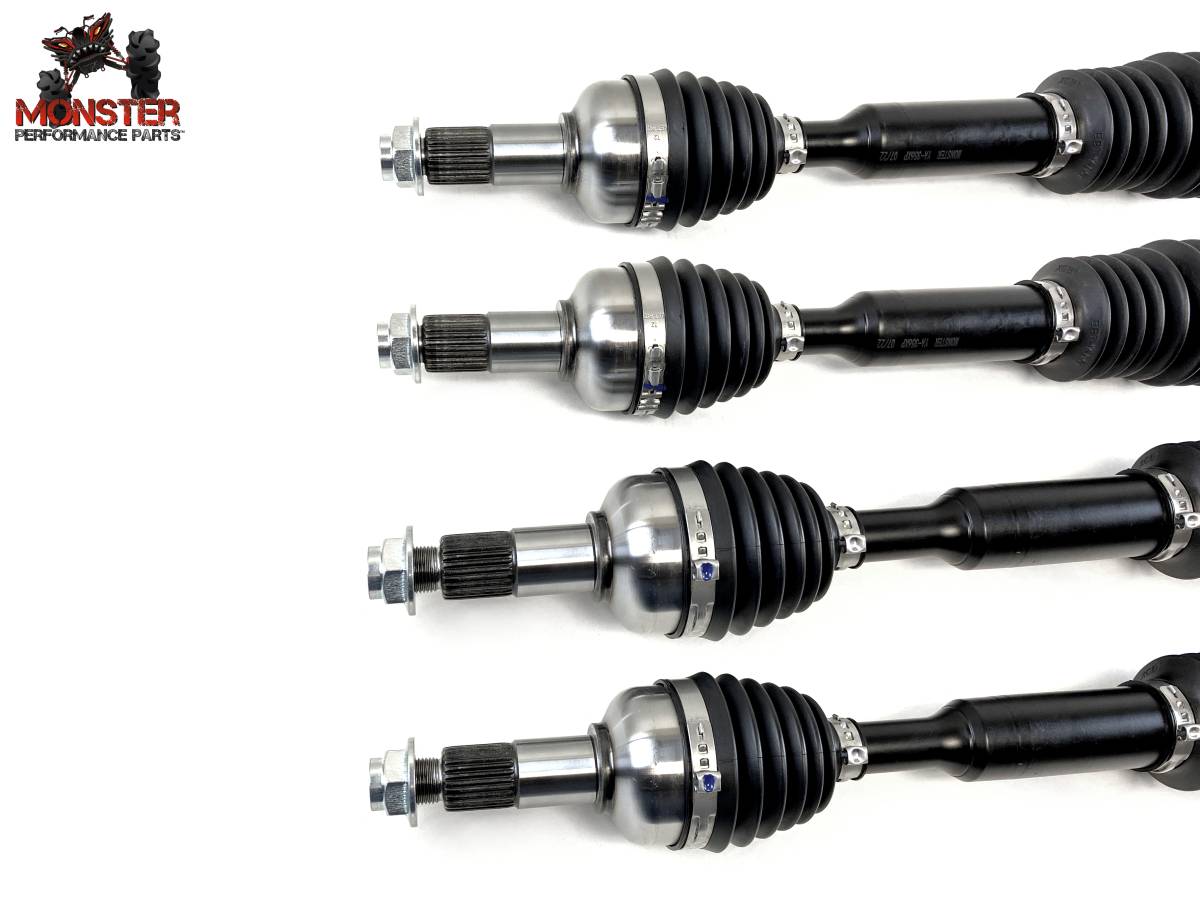

The Monster Axles™ XP Series axle is designed to be stronger, longer lasting, and more dependable, no matter where you ride. A high-performance axle that can fit stock length all the way up to a 4" lift kit. Bundled with this 2" lift kit, they provide even more support for handling bumpy trails, crawling over rocks, and keeping you and your ride a little safer out in the wild.
Game changing design — Key to its performance, the plunge mechanism is moved from the inner joint to the shaft itself, eliminating issues that cause joints to bind and break. Unlike other brands, our axle will not bind, burr, or mushroom, leaving you with a CV joint you can't remove from the shaft.
More angle, more plunge — With its inner CV joint designed like an outer joint, it can achieve a 45° angle of operation (OEM axles can only operate up to around 23°). Both joints are fitted with heavy duty boots are assembled on a revolutionary, telescoping 4340 chromoly steel shaft which provides an additional 60 mm of travel.
Serviceable in the field — Should you need to replace a broken joint or boot, the CV joint can be easily removed for service without any specials tools. No need ship the whole axle back to us. And you can always contact us to inquire about replacement parts.
Lift your ride with confidence — High Lifter has been perfecting the lift kit for over 20 years. Their kits are precision-engineered, backed by a lifetime warranty, and are the best way to give yourself more ground clearance.
Warranty
Product Notes
What's In The Box
Product Videos
Application List
Year | Make | Model | Submodel | Notes |
---|---|---|---|---|
2022 | Yamaha | Grizzly 700 | YFM700 EPS XT-R | |
2022 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
2022 | Yamaha | Grizzly 700 | YFM700PSE 4x4 Special Edition FI EPS | |
2021 | Yamaha | Grizzly 700 | YFM700 EPS XT-R | |
2021 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
2021 | Yamaha | Grizzly 700 | YFM700PSE 4x4 Special Edition FI EPS | |
2020 | Yamaha | Grizzly 700 | YFM700 EPS XT-R | |
2020 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
2020 | Yamaha | Grizzly 700 | YFM700PSE 4x4 Special Edition FI EPS | |
2019 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
2019 | Yamaha | Grizzly 700 | YFM700PSE 4x4 Special Edition FI EPS | |
2018 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
2018 | Yamaha | Grizzly 700 | YFM700PLE 4x4 Limited Edition FI EPS | |
2018 | Yamaha | Grizzly 700 | YFM700PSE 4x4 Special Edition FI EPS | |
2017 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
2017 | Yamaha | Grizzly 700 | YFM700PLE 4x4 Limited Edition FI EPS | |
2017 | Yamaha | Grizzly 700 | YFM700PSE 4x4 Special Edition FI EPS | |
2016 | Yamaha | Grizzly 700 | YFM700D 4x4 FI | |
2016 | Yamaha | Grizzly 700 | YFM700P 4x4 FI EPS | |
2016 | Yamaha | Grizzly 700 | YFM700PLE 4x4 Limited Edition FI EPS | |
2016 | Yamaha | Grizzly 700 | YFM700PSE 4x4 Special Edition FI EPS |
Details
- MSET-203LA
- MSET-203LA
- MONSTER AXLES
- Available
- New
Categories
Shipping Information
- Item Requires Shipping
- 54.0 lbs.
- W14.0000” x H14.0000” x L25.0000”
- Free Ground Shipping
- Game Changing Axles with a High Lifter Signature Series Lift
